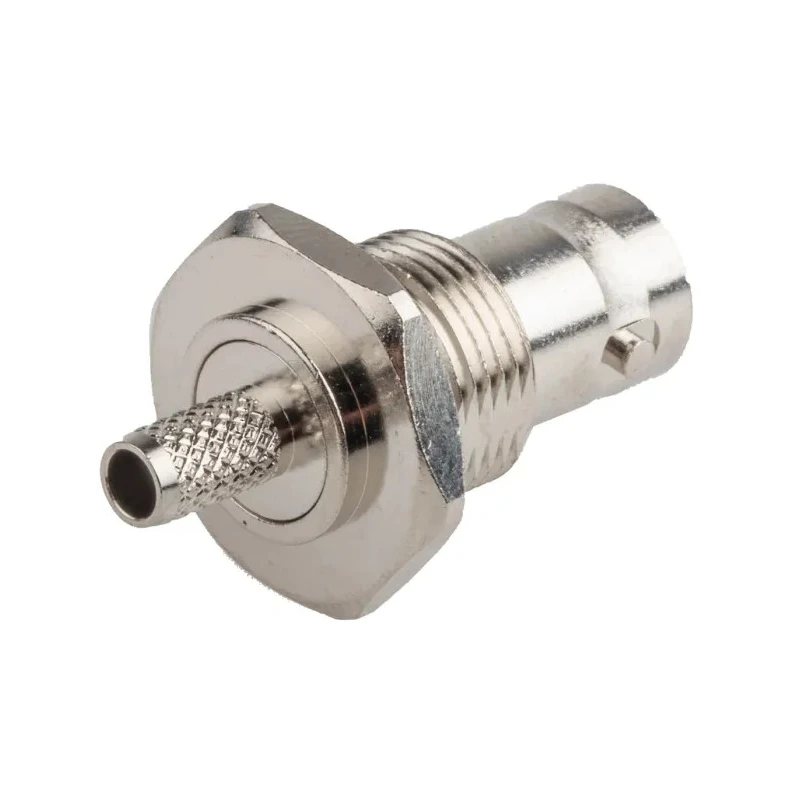

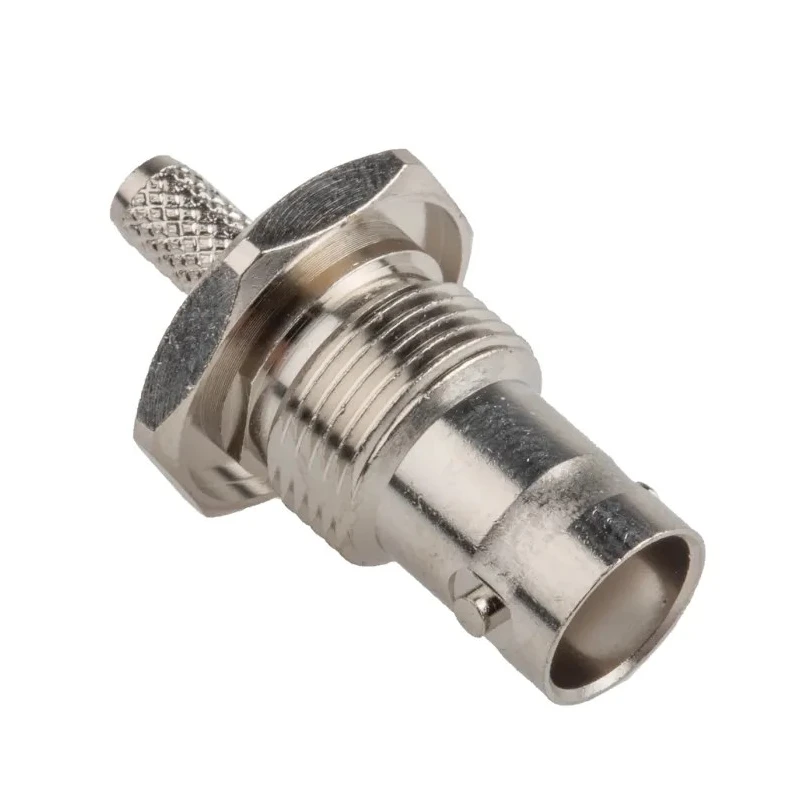

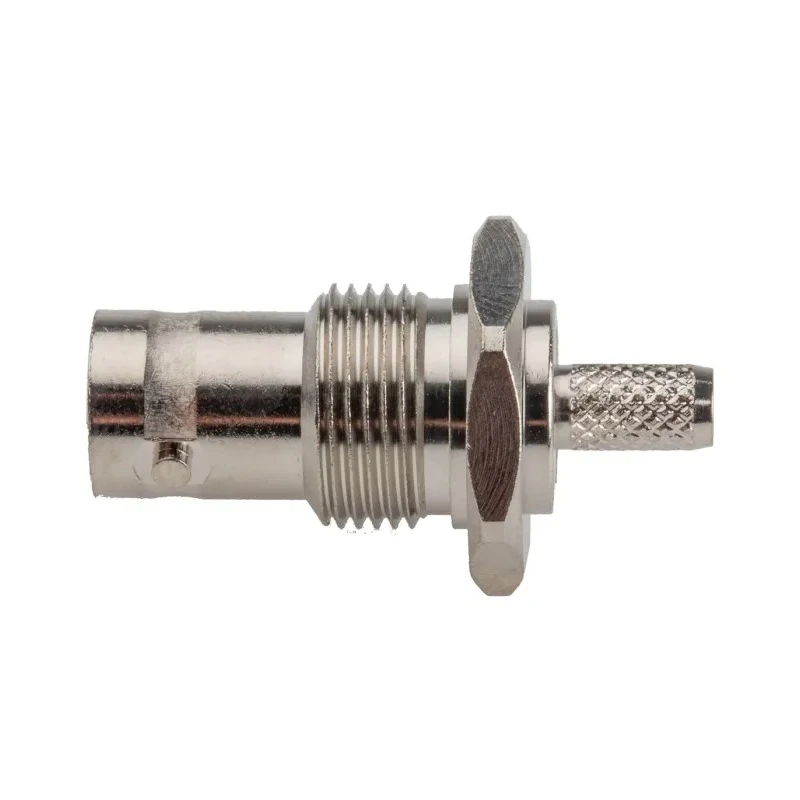

RS PRO Coaxial Connector Panel Mount Female BNC 50 Ω Straight Body Crimp 546-3743
Specifications
| Country of Origin | Taiwan |
|---|---|
| Size | Standard |
| Brand | RS PRO |
| Orientation | Straight |
| Model | 546-3743 |
| Mount Type | Panel Mount |
| Operating Frequency | 4GHz |
| Contact Material | Brass |
| Series | RS PRO |
| Termination Type | Crimp |
| Maximum Operating Temperature | 85°C |
| Cable Type | RG58 |
| Minimum Operating Temperature | -65°C |
| Polarity | Normal |
| Impedance | 50Ω |
| Contact Plating | Gold |
| Contact Gender | Female |
| Connector Gender | Female |
| Coaxial Connector Type | BNC |
| Body Plating | Nickel |
| • Insulation material | PTFE |
| RS PRO Coaxial Connector Cable Male BNC, 50 Ω, Straight Body CrimpBrand | RS PRO |
| BNC B/HEAD JCK-T ETHERNETBrand | NEUTRAL |
| RS crimp BNC straight bulkhead jack-RG58Brand | RS PRO |
Key Features
- Designed for use with RG58 cables and panel mounting.
- Robust nickel plated body ensures durability.
- Gold-plated brass contact for excellent conductivity.
- Crimp termination method for secure cable attachment.
- Supports operating frequency up to 4 GHz.
- Wide operating temperature range from -65°C to 85°C.
- Includes PTFE insulator for high reliability.
- Bayonet coupling system for secure connection.
Product Description
RS PRO 546-3743 is a high-quality Coaxial Connector designed for panel mount applications with female BNC type and a 50 Ω impedance rating. It features a robust nickel plated straight body with crimp termination, suitable for RG58 coaxial cables.
The connector exhibits excellent conductivity due to its gold-plated brass contact, complemented by a PTFE insulator that ensures long-lasting performance and reliability. The bayonet coupling mechanism provides a secure and convenient connection, ideal for demanding RF signal applications.
It operates reliably across a wide temperature range, from -65°C to 85°C, and supports frequencies up to 4 GHz, making it suitable for professional use in telecommunications, medical equipment, satellite communications, CCTV systems, and test instruments.
This connector is tailored for panel and chassis mounting, featuring a bulkhead with a screw-on nut to ensure stable and firm installation in equipment racks and electronic assemblies.
The nickel plating enhances durability against corrosion and mechanical wear, while the crimp termination method requires appropriate tooling for optimal cable preparation and connection security.
Designed for RG58 cable compatibility and panel mounting. Robust nickel plated body with gold-plated brass contacts. Crimp termination for reliable and secure cable connection. Supports 50 Ω impedance and 4 GHz operating frequency.
Operates in harsh temperature conditions from -65°C to 85°C. Includes PTFE insulation for enhanced electrical reliability. Bayonet coupling for effective and quick attachment. Ideal for applications in telecom, broadcast, medical, and satellite equipment.
RS PRO products are trusted worldwide for their industrial quality and rigorous testing. Browse EnvMart categories for more connectors and accessories to suit your electronic assembly requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The connector has a 50 Ω impedance rating, making it suitable for various RF signal applications.
It supports an operating frequency of up to 4 GHz, suitable for high-frequency applications.
This model is designed for use with RG58 coaxial cables, ensuring a proper fit and performance.
It operates reliably within a temperature range of -65°C to 85°C, allowing use in various environments.
The body is nickel plated for durability, with gold-plated brass contacts and a PTFE insulator for enhanced reliability.
It uses a crimp termination method, which requires appropriate tooling for secure cable attachment.
This model is designed for panel mounting, featuring a bulkhead with a screw-on nut for stable installation.
The connector has a straight body orientation, which is standard for many applications.
The contact material is brass, which provides good conductivity and performance.
This connector is a female BNC type, designed for use with compatible male connectors.
It features a bayonet coupling system, which allows for secure and quick attachment.
The connector is manufactured in Taiwan, ensuring compliance with industrial quality standards.
