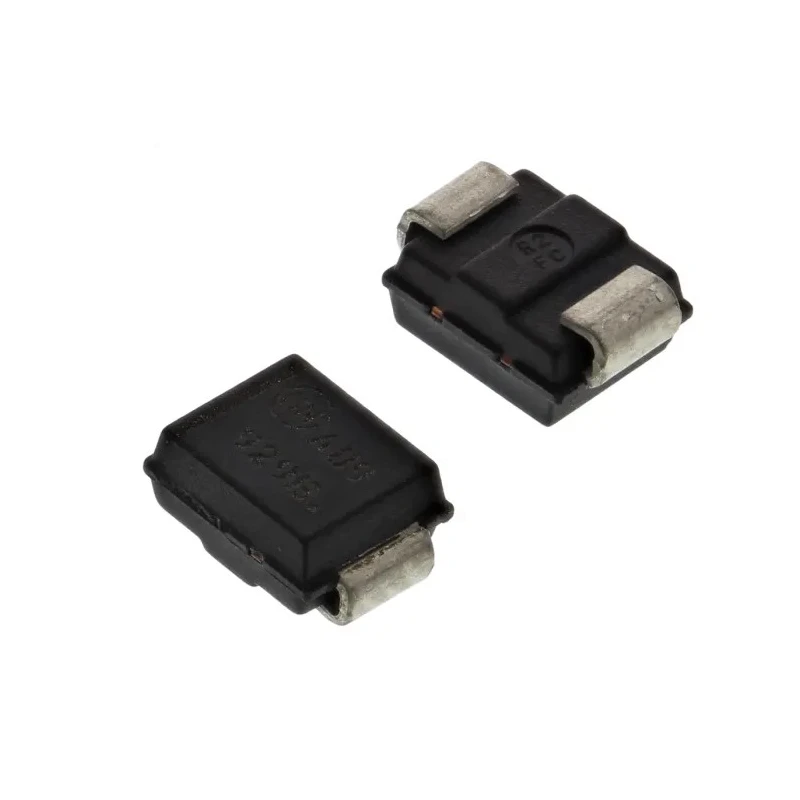

onsemi Zener Diode 15 V, Single Element, 550 mW Power Dissipation, Surface Mount DO-214AA Package 1SMB5929BT3G
Specifications
| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Height | 2.47mm |
| Length | 5.6mm |
| Model | 1SMB5929BT3G |
| Mount Type | Surface |
| Series | 1SMB59 |
| Maximum Operating Temperature | 150°C |
| Package Type | DO-214AA |
| Minimum Operating Temperature | -65°C |
| Standards/Approvals | RoHS |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Automotive Standard | AEC-Q101 |
| Maximum Power Dissipation Pd | 550mW |
| Diode Configuration | Single |
| Test Current It | 25mA |
| Maximum Reverse Leakage Current | 1μA |
| Nominal Zener Voltage Vz | 15V |
| Zener Type | Voltage Regulator |
| Maximum Zener Impedance | 9Ω |
Key Features
- This Zener diode features a nominal Zener voltage of 15 volts.
- Designed for surface mounting with a compact 2-pin DO-214AA package.
- Maximum power dissipation rating is 550 milliwatts.
- It includes a voltage regulator type Zener diode configuration.
- Test current is 25 mA, with a Zener impedance up to 9 ohms.
- Operates reliably between -65°C and 150°C maximum operating temperature.
- Low reverse leakage current of 1 microampere ensures efficient performance.
- Measuring 5.6 mm in length and 2.47 mm in height for compact PCB design.
Product Description
onsemi 1SMB5929BT3G Zener Diode is a precision single-element semiconductor designed for voltage regulation in electronic circuits. Featuring a nominal Zener voltage of 15 V and rated for a maximum power dissipation of 550 mW, it supports stable operation in demanding industrial and automotive applications. Its robust surface mount DO-214AA package with 2 pins ensures easy integration on PCBs with limited space.
This component is ideal for use in power supplies, voltage regulation modules, and protection circuits in industrial machinery, automotive electronics, and consumer devices. It is characterized by low reverse leakage current and a Zener impedance of 9 ohms at its test current of 25 mA, providing accurate and efficient voltage clamping capabilities.
Operating reliably within a temperature range of -65°C to 150°C, this Zener diode meets strict automotive quality standards with AEC-Q101 certification and conforms to RoHS requirements for environmental safety. The 1SMB59 series by onsemi is recognized for durability and performance consistency in semiconductor discrete device applications.
This Zener diode features a nominal Zener voltage of 15 volts. Designed for surface mounting with a compact 2-pin DO-214AA package. Maximum power dissipation rating is 550 milliwatts. It includes a voltage regulator type Zener diode configuration.
Test current is 25 mA, with a Zener impedance up to 9 ohms. Operates reliably between -65°C and 150°C maximum operating temperature. Low reverse leakage current of 1 microampere ensures efficient performance. Measuring 5.6 mm in length and 2.47 mm in height for compact PCB design.
Complies with RoHS and meets automotive standard AEC-Q101 for quality assurance.
This onsemi Zener diode is widely used in industrial manufacturing, automotive systems, electronics manufacturing, and repair services. It supports efficient electronics design requiring stable voltage regulation and reliable performance under harsh operating conditions.
For related semiconductor and electronic component selections, explore the comprehensive Zener Diodes category on EnvMart to find compatible components by onsemi and other leading brands.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The nominal Zener voltage of this diode is 15 volts.
The maximum power dissipation rating for this model is 550 milliwatts.
It operates reliably between -65°C and 150°C.
This Zener diode is housed in a surface mount DO-214AA package.
The maximum reverse leakage current is 1 microampere.
The Zener impedance at the test current of 25 mA is up to 9 ohms.
This diode has 2 pins.
It complies with the AEC-Q101 automotive standard.
The diode measures 5.6 mm in length and 2.47 mm in height.
This model features a single-element diode configuration.
Yes, it complies with RoHS requirements for environmental safety.
It is suitable for use in power supplies, voltage regulation modules, and protection circuits in industrial and automotive applications.
