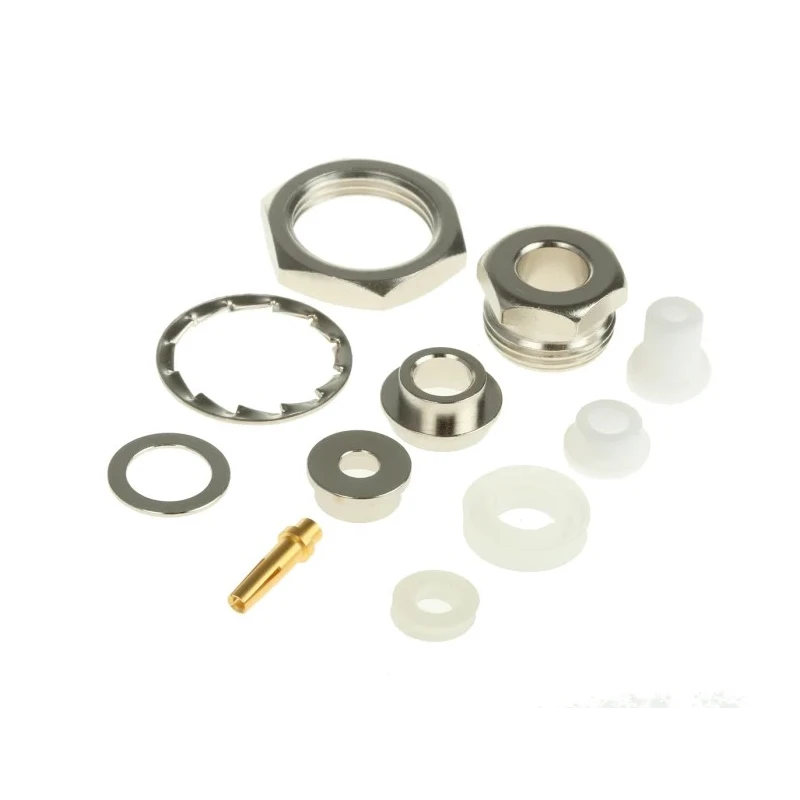

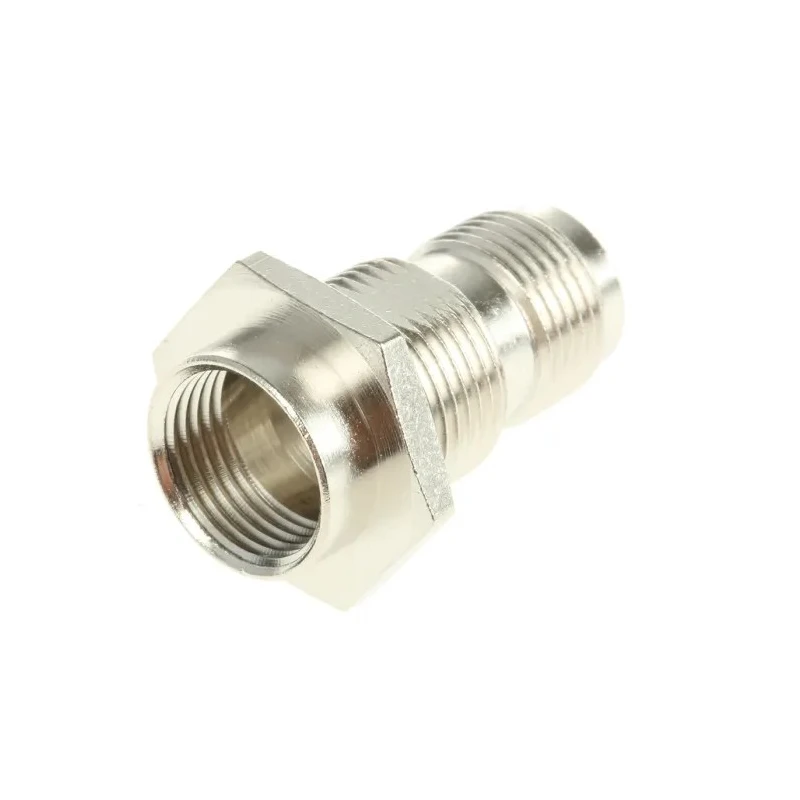

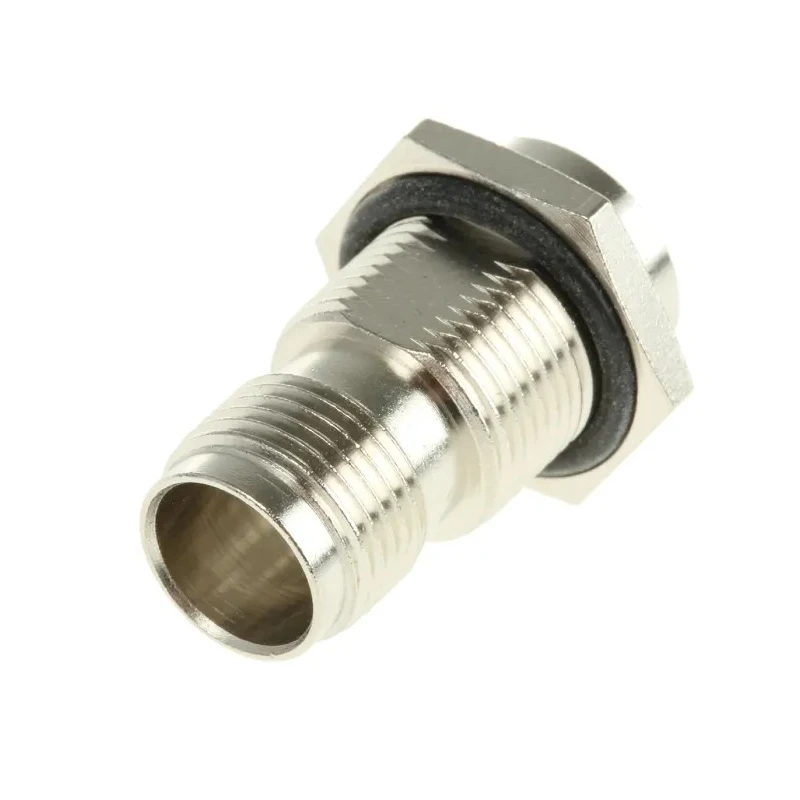

Telegartner TNC Series Coaxial Connector Panel Mount Female 50 Ω Straight Body Crimp J01011A2223
Specifications
| Country of Origin | Germany |
|---|---|
| Size | Standard |
| Brand | Telegartner |
| Orientation | Straight |
| Model | J01011A2223 |
| Mount Type | Panel Mount |
| Operating Frequency | 11GHz |
| Contact Material | Beryllium Copper |
| Series | TNC |
| Termination Type | Crimp |
| Maximum Operating Temperature | 165°C |
| Cable Type | RG58C/U, RG400/U, RG223/U, RG142B/U, RG141A/U |
| Minimum Operating Temperature | -65°C |
| Polarity | Normal |
| Impedance | 50Ω |
| Contact Plating | Gold over Nickel over Copper |
| Contact Gender | Female |
| Connector Gender | Female |
| Coaxial Connector Type | TNC |
| Body Plating | Nickel |
| binder, jack Panel Mount, 50Ω, Crimp Termination, Straight BodyBrand | Telegartner |
| Telegartner, Jack Panel Mount TNC Connector, 75Ω, Straight BodyBrand | Telegartner |
| RS PRO Coaxial Connector Cable Female TNC, 50 Ω, Straight Body CrimpBrand | RS PRO |
Key Features
- Panel mount type providing secure attachment and easy installation.
- Female connector gender with straight orientation ensuring reliable connections.
- Maintains impedance of 50 Ω suitable for RF signal integrity.
- Nickel plated brass body offers corrosion resistance and robust construction.
- Gold-plated beryllium copper contacts ensure excellent conductivity and long-term performance.
- Operates reliably within temperature range of -65°C to 165°C.
- Compatible with cable types including RG58C/U, RG400/U, RG223/U, RG142B/U, and RG141A/U.
- Termination via crimp ensuring stable and secure contact.
Product Description
Telegartner J01011A2223 is a premium TNC Series Coaxial Connector designed for panel mount applications, featuring a female connector with straight body orientation. This connector maintains a precise 50 Ω impedance, critical for high-frequency electronic and RF systems.
The robust nickel-plated brass body enhances durability and corrosion resistance, while the gold over nickel plating on beryllium copper contacts provides excellent electrical conductivity and reliable signal transmission. It facilitates crimp termination compatible with multiple coaxial cable types such as RG58C/U, RG400/U, RG223/U, RG142B/U, and RG141A/U.
Engineered to withstand harsh conditions, this connector operates efficiently within a temperature range of -65°C to 165°C and supports frequencies up to 11 GHz, making it suitable for a wide range of industrial, laboratory, and communication equipment applications. The female gender and straight orientation design optimize panel integration and maintain signal integrity.
Panel mount type providing secure attachment and easy installation. Female connector gender with straight orientation ensuring reliable connections. Maintains impedance of 50 Ω suitable for RF signal integrity. Nickel plated brass body offers corrosion resistance and robust construction.
Gold-plated beryllium copper contacts ensure excellent conductivity and long-term performance. Operates reliably within temperature range of -65°C to 165°C. Compatible with cable types including RG58C/U, RG400/U, RG223/U, RG142B/U, and RG141A/U.
Termination via crimp ensuring stable and secure contact. Supports operating frequency up to 11 GHz for high-frequency applications. Manufactured in Germany ensuring high quality standards.
This coaxial connector is widely used in industrial communication systems, laboratory instrumentation, and advanced RF applications that demand robust mechanical and electrical performance. Telegartner's manufacturing standards ensure consistent quality and reliability. Explore related Coaxial Connectors and RF components within EnvMart's extensive catalog for comprehensive connectivity solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating frequency of this model is 11 GHz, making it suitable for high-frequency applications.
It operates reliably within a temperature range of -65°C to 165°C.
This connector is compatible with cable types including RG58C/U, RG400/U, RG223/U, RG142B/U, and RG141A/U.
It uses crimp termination, ensuring stable and secure contact.
This model maintains a precise impedance of 50 Ω, suitable for RF signal integrity.
The body is made of nickel-plated brass, and the contacts are gold-plated beryllium copper, providing excellent conductivity.
It features a straight body orientation, which is ideal for panel mount applications.
This connector has a female gender, designed for reliable connections in various applications.
It is manufactured in Germany, ensuring adherence to high quality standards.
This model is classified as a standard size connector.
It is widely used in industrial communication systems, laboratory instrumentation, and advanced RF applications.
The contacts are plated with gold over nickel over copper, which enhances conductivity and performance.
