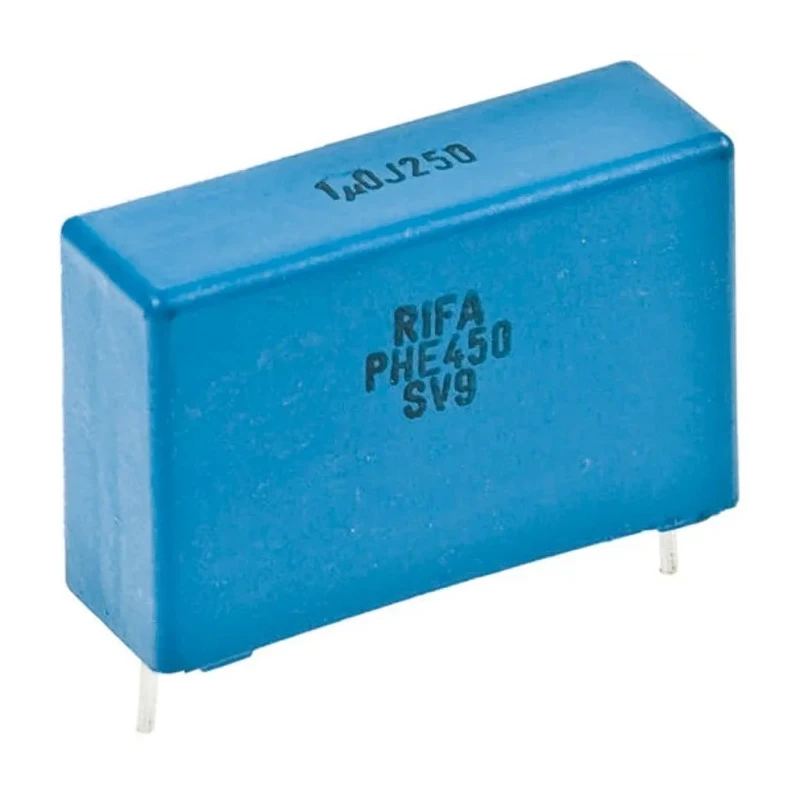

KEMET PHE450 Metallized Polypropylene Film Capacitor 1 nF ±5 % 2 kV DC 180 V AC Through Hole PHE450
Specifications
| Country of Origin | Sweden |
|---|---|
| Brand | KEMET |
| Height | 10.5mm |
| Length | 18mm |
| Model | PHE450 |
| Packaging | Tape & Reel |
| Width | 5.5mm |
| Mount Type | Through Hole |
| Series | PHE450 |
| Maximum Operating Temperature | 105°C |
| Tolerance | ±5 % |
| Capacitance | 1nF |
| Minimum Operating Temperature | -55°C |
| Terminal type | Radial |
| Dissipation Factor | 0.0003% |
| Rated Voltage | 250 V dc to 3000 V dc |
| Lead Length | 6mm |
| Pin Count | 2 |
| Rated AC Voltage | 180V ac |
| Rated DC Voltage | 2kV dc |
| Lead Pitch | 15mm |
| Lead Diameter | 0.8mm |
| Capacitance tolerance | ±5%, other tolerances on request |
| Lead Spacing | 7.5 mm to 37.5 mm |
Key Features
- Metallized polypropylene film construction for high reliability and stability.
- Capacitance tolerance of ±5 % ensures consistent performance.
- Rated for 2 kV DC and 180 V AC applications.
- Designed with radial terminal and 15 mm lead pitch for easy PCB mounting.
- Operates between -55°C and 105°C suitable for demanding environments.
- Encapsulated in self-extinguishing resin compliant with UL 94 V-0 standards.
- Ideal for pulse, snubber, and protection circuits in power supplies and televisions.
- Lead length of 6 mm and lead diameter of 0.8 mm accommodate secure soldering.
Product Description
KEMET PHE450 Film Capacitor model PHE450 is a high-quality metallized polypropylene film capacitor designed for through hole mounting. Its capacitance is 1 nF with a tolerance of ±5 %, rated for 2 kV DC and 180 V AC voltages, making it suitable for a broad range of electronic applications requiring stable and reliable performance.
Encapsulated in a self-extinguishing resin in compliance with UL 94 V-0, the capacitor offers robust protection against electrical stress. The radial terminal design with 15 mm lead pitch and 6 mm lead length facilitates easy integration on printed circuit boards. Operating temperature range from -55°C up to 105°C allows use in industrial and consumer electronics exposed to various thermal conditions.
This capacitor is primarily used in pulse circuits, snubber circuits, and protection circuits found in switch mode power supplies and television deflection circuits, where high current stress tolerance is required. The dissipation factor is exceptionally low at 0.0003 %, contributing to high efficiency and low signal loss.
Mechanical dimensions include length of 18 mm, width of 5.5 mm, height of 10.5 mm, and lead diameter of 0.8 mm ensuring compactness for PCB layouts. The packaging in tape & reel format supports automated pick and place assembly lines for manufacturing efficiency.
Metallized polypropylene film construction provides high pulse and current handling capability. Encapsulation in self-extinguishing resin ensures safety and reliability. Suitable for harsh operating environments with wide temperature range.
Low dissipation factor ensures energy efficiency in circuits. Radial terminal and 15 mm pitch enable compatibility with standard PCB designs. Ideal for industrial, laboratory, power supply, television, and electronic manufacturing applications.
Packaging supports volume production with tape & reel format.
Categorized under Film Capacitors, this KEMET capacitor meets demanding industrial standards and applications. Explore more capacitors and related electronic components on EnvMart for your projects and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The capacitance value of this model is 1 nF with a tolerance of ±5 %.
It is rated for 2 kV DC and 180 V AC applications.
The dimensions are 18 mm in length, 5.5 mm in width, and 10.5 mm in height.
It operates between -55°C and 105°C, making it suitable for various environments.
This unit is designed for through hole mounting with radial terminals.
The lead length is 6 mm, and the lead diameter is 0.8 mm.
The dissipation factor is exceptionally low at 0.0003 %, contributing to high efficiency.
It is packaged in a tape & reel format, which supports automated assembly processes.
This model is ideal for pulse circuits, snubber circuits, and protection circuits in power supplies and televisions.
The lead pitch is 15 mm, allowing for compatibility with standard PCB designs.
The country of origin for this capacitor is Sweden.
This capacitor is part of the PHE450 series.
