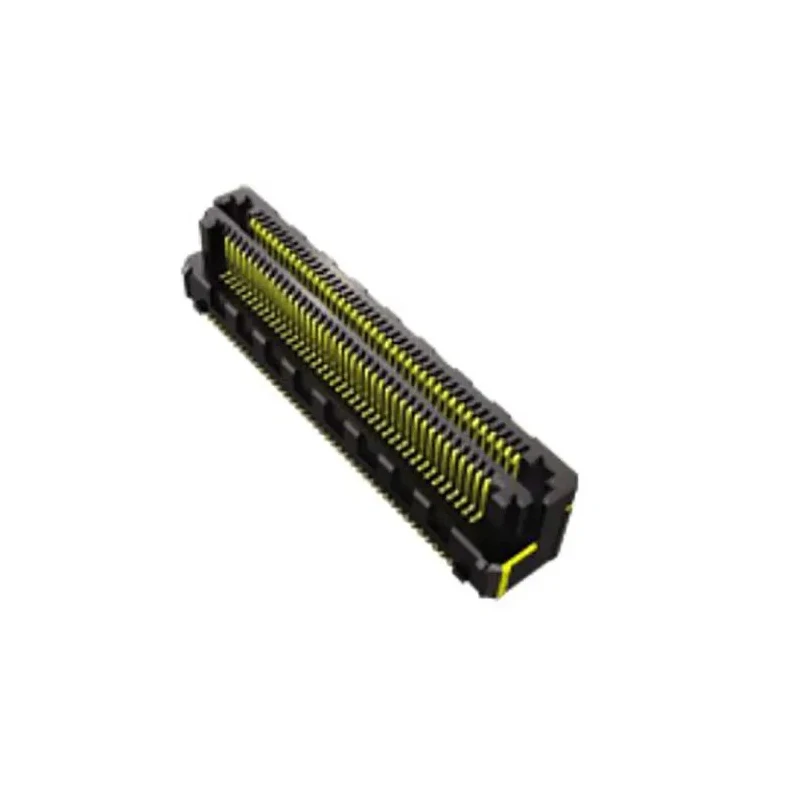

Samtec LSHM Series Vertical Surface PCB Header 20 Contact 0.5 mm Pitch 2 Row Shrouded LSHM-110-02.5-L-DV-A-S-TR
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 160, 226V ac |
| Brand | Samtec |
| Orientation | Vertical |
| Current | 2A |
| Model | LSHM-110-02.5-L-DV-A-S-TR |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Phosphor Bronze |
| Series | LSHM |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 0.5mm |
| Contact Plating | Gold |
| Number of Contacts | 20 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Board-to-Board |
Key Features
- High-density 20 contact vertical PCB header designed for board-to-board connections.
- 0.5 mm pitch and 2-row configuration for compact PCB real estate saving.
- Shrouded housing made from Liquid Crystal Polymer ensures durability.
- Gold-plated phosphor bronze contacts for reliable signal transmission.
- Supports currents up to 2A and voltages of 160 to 226V AC.
- Surface mount termination with solder type for easy PCB assembly.
- Operating temperature range from -55°C to +125°C suitable for harsh environments.
- Mating forces are significantly higher than typical micro pitch connectors for secure connections.
Product Description
Samtec LSHM-110-02.5-L-DV-A-S-TR is a high-density vertical surface PCB header featuring 20 contacts with a 0.5 mm pitch and 2 rows. This shrouded connector is designed for rugged board-to-board applications where PCB space optimization is critical.
The housing is manufactured from Liquid Crystal Polymer, providing high durability and thermal stability, making it suitable for industrial, electronic manufacturing, and telecommunications applications. The connector system supports board-to-board connections with surface mount solder termination for reliable mounting and electrical performance.
Contacts are made from phosphor bronze with gold plating to ensure excellent conductivity and corrosion resistance. This design supports a current rating of 2A and an operating voltage range of 160 to 226V AC. It operates reliably in environments ranging from -55°C up to 125°C, ensuring stability under harsh conditions.
The razor beam fine pitch contact system and hermaphroditic design reduce PCB real estate and facilitate up to 100 I/O connections. The mating and unmating forces are approximately four to six times greater than typical micro pitch connectors, ensuring secure and durable connections.
High-density 20 contact vertical PCB header designed for board-to-board connections. 0.5 mm pitch with 2 rows for compact PCB layouts. Shrouded housing ensures mechanical protection and alignment. Gold-plated phosphor bronze contacts provide reliable electrical transmission.
Supports 2A current and 160-226V AC voltage. Surface mount solder termination supports easy PCB assembly. Wide operating temperature range -55°C to 125°C for industrial use. Rugged mating design for durable connections.
This connector is widely applicable in industrial, telecommunications, computing, and electronic device manufacturing sectors. It supports robust and dense PCB interconnects where reliability and miniaturization are priorities.
Explore more electronic components and connectors from Samtec and related brands on EnvMart to effectively fulfill your project requirements.
Explore more products in our PCB Headers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a current rating of 2A.
The operating voltage range for this connector is between 160V and 226V AC.
It features a 0.5 mm pitch and has 20 contacts arranged in 2 rows.
The contacts are made from phosphor bronze and are gold-plated for improved conductivity and corrosion resistance.
It operates reliably in environments ranging from -55°C to 125°C.
This unit uses a surface mount solder termination for easy PCB assembly.
The housing is made from Liquid Crystal Polymer, which provides high durability and thermal stability.
The shrouded design and 0.5 mm pitch allow for compact PCB layouts, optimizing space for board-to-board connections.
It is suitable for industrial, telecommunications, computing, and electronic device manufacturing applications.
This model is designed for vertical orientation, facilitating board-to-board connections.
The mating forces are approximately four to six times greater than typical micro pitch connectors, ensuring secure connections.
The country of origin for this product is India.
