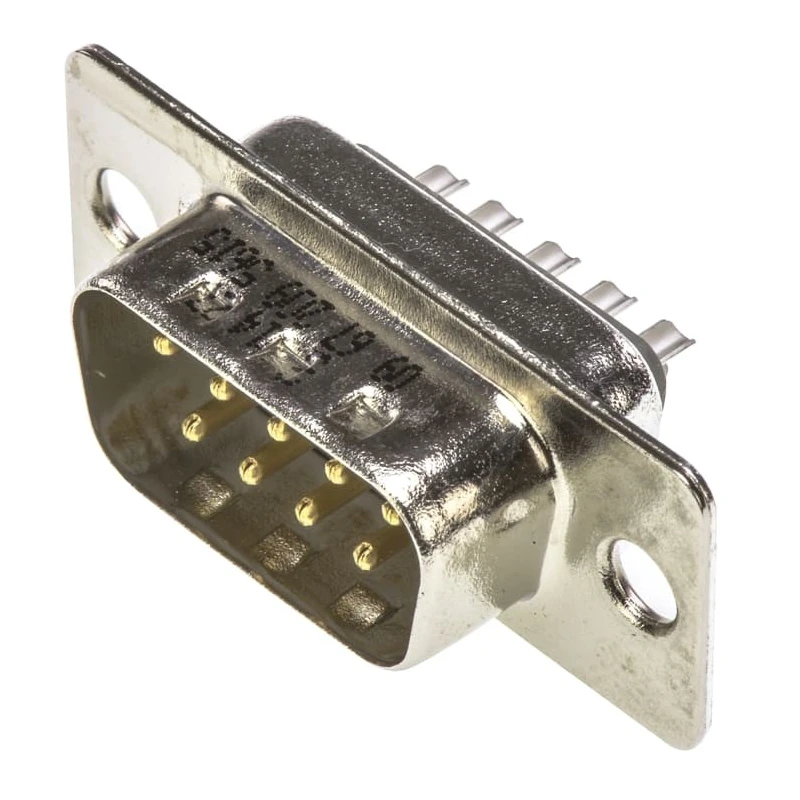

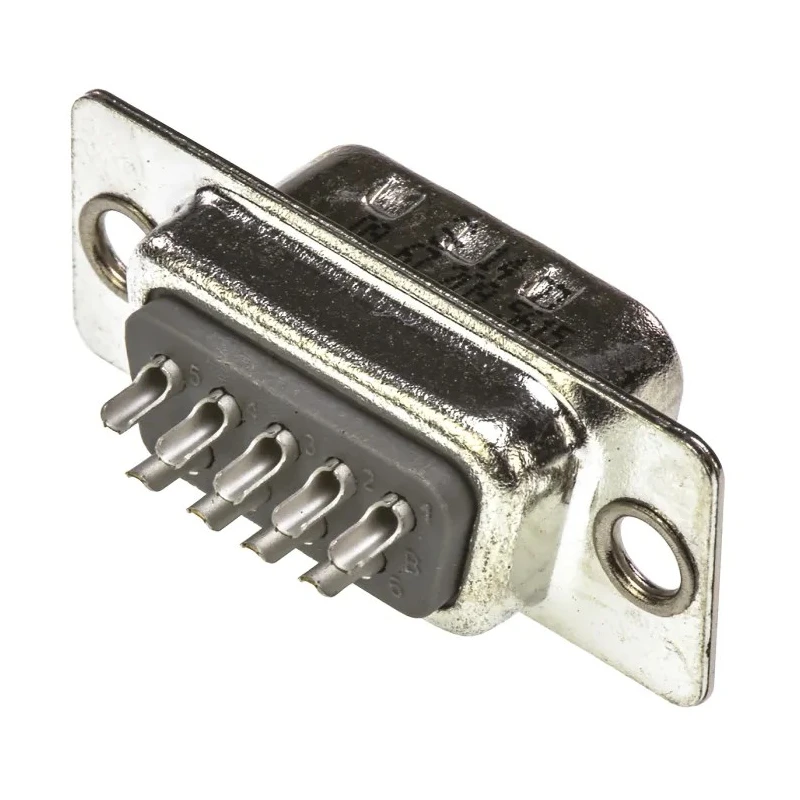

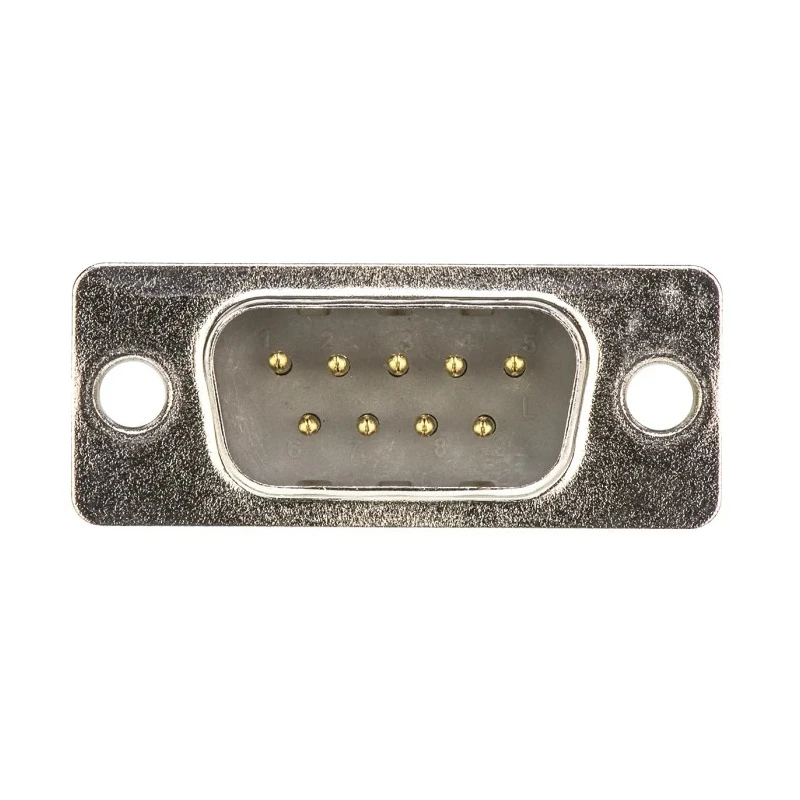

HARTING D-Sub 9 Way Straight 2.77 mm Pitch Panel Mount D-Sub Connector with Flange Male 09672095615
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 1000V |
| Brand | HARTING |
| Orientation | Straight |
| Current | 6.5A |
| Mount Type | Panel Mount |
| Housing Material | Steel |
| Contact Material | Copper Alloy |
| Series | D-Sub |
| Mounting Hardware | Flange |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Pitch | 2.77mm |
| Standards/Approvals | RoHS, UL 94-V0, UL Recognised |
| Contact Plating | Steel |
| Number of Contacts | 9 |
| Contact Gender | Male |
| Connector Gender | Male |
| Connector Type D | D-Sub |
| D-Sub Shell Size | E |
Key Features
- Features a 9-contact configuration suitable for a variety of signal and power connections.
- Constructed with a steel housing and copper alloy contacts plated with steel for durability.
- Supports a current rating of 6.5A and voltage rating of 1000V for reliable electrical performance.
- Operates in a wide temperature range from -55°C to 125°C for demanding environments.
- Mounts securely with flange hardware suitable for panel integration.
- Designed according to DIN 41652 standards with 2.77mm pitch for precision fit.
- Termination by solder type ensures stable connection to wiring.
- Meets RoHS and UL 94-V0 standards with UL Recognised certifications.
Product Description
HARTING 09672095615 D-Sub 9 Way Straight 2.77 mm Pitch Panel Mount D-Sub Connector offers a reliable and industry-standard solution for electrical panel connections. This male connector features nine high-quality stamped copper alloy contacts and a robust steel housing designed for durability and long-term use.
With a rated current of 6.5A and voltage up to 1000V, it supports both signal and power transmission for industrial, electronic, and manufacturing applications. Its flange mounting hardware facilitates secure attachment to panels, providing excellent mechanical stability in harsh environments.
The connector’s solder bucket termination type allows for secure connection to stranded or single-core wires. Operating temperature ranges from -55°C to 125°C make it suitable for demanding HVAC, construction, industrial automation, and laboratory uses.
Meeting RoHS, UL 94-V0, and UL Recognised standards, this product aligns with global safety and quality guidelines. Its precision 2.77 mm pitch and adherence to DIN 41652 series ensures compatibility across multiple electronic assemblies.
9 contacts for versatile connectivity. Panel mount flange for stable installation. Steel housing with durable copper alloy contacts. High voltage and current ratings (1000V, 6.5A). Wide operating temperature from -55°C to 125°C.
Compliant with RoHS and UL safety standards. Solder termination for reliable wiring. Standardized 2.77 mm pitch to meet DIN 41652.
This connector is ideal for integration in industrial equipment, control panels, telecommunications, and electronics manufacturing environments. Trust HARTING’s quality to ensure consistent electrical performance and longevity in critical applications.
Explore more quality D-Sub Connectors and electrical components in the EnvMart catalog to find the perfect solution for your technical needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This D-Sub connector has a current rating of 6.5A and a voltage rating of 1000V, making it suitable for both signal and power transmission.
It operates within a temperature range of -55°C to 125°C, making it suitable for demanding environments.
This connector features 9 contacts, allowing for versatile connectivity options.
The housing is made of steel, while the contacts are constructed from copper alloy and plated with steel for durability.
It uses a solder termination type, ensuring a stable connection to wiring.
Yes, it meets RoHS and UL 94-V0 standards and is UL Recognised, ensuring compliance with global safety guidelines.
The pitch of this connector is 2.77 mm, adhering to the DIN 41652 standards for precision fit.
It supports panel mount installation with flange mounting hardware for secure attachment.
This connector is ideal for integration in industrial equipment, control panels, telecommunications, and electronics manufacturing environments.
The connector has a straight orientation, which is typical for panel mount applications.
The country of origin for this connector is China.
This model features a male connector gender, suitable for various applications requiring male connections.
