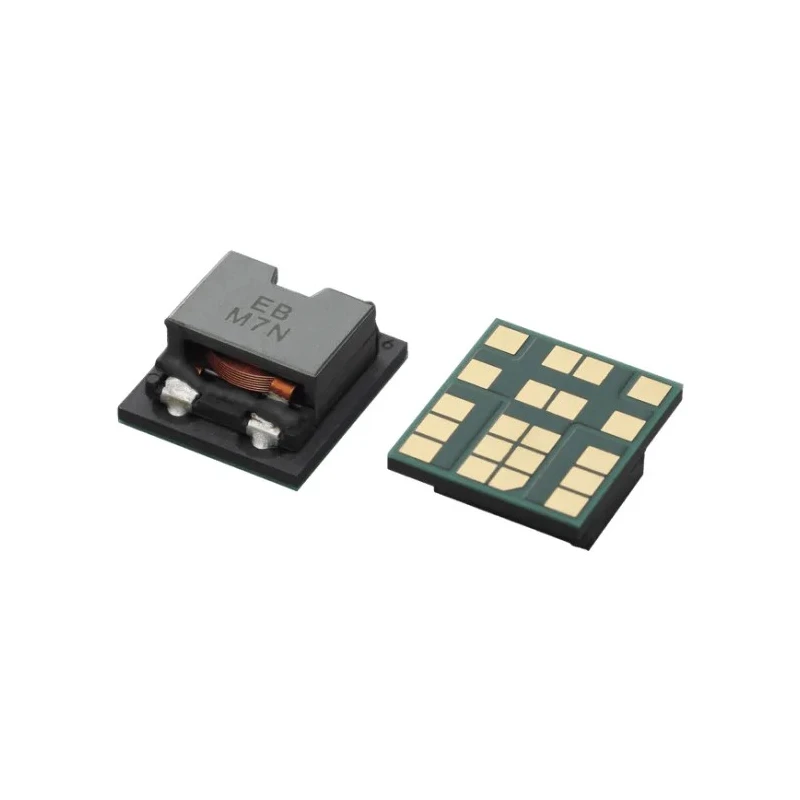

Murata Non-Isolated DC-DC Converter 25V dc Output 6 A 13.5 to 42V dc Input 150 W 100 °C Max Temp MYSGK02506BRSR

Murata MYSGK02506BRSR is a miniature solid block type non-isolated DC-DC power converter designed for embedded electronic applications requiring high efficiency and compact size. With a settable output voltage range from 5 to 25 Vdc and a maximum output current of 6 A, it efficiently converts input voltages between 13.5 to 42 Vdc. This module utilizes a fixed frequency synchronous buck converter topology to deliver up to 150 W of power with an efficiency of 98%, making it ideal for applications demanding reliable power regulation and thermal performance.

The device is housed in a tiny DIP package measuring 14.7 mm length, 16.3 mm width, and 7.5 mm depth, weighing just 3.7 grams, suitable for dense circuit board layouts. Key protections include programmable under voltage lockout (UVLO), output short circuit protection, and on/off control for flexible system integration. The converter features low ripple and noise at 50mV peak-to-peak, supporting sensitive electronics.

Performance is ensured across a wide operating temperature range from -40 °C to 100 °C, with proven reliability backed by a Mean Time Between Failure (MTBF) of 2014k hours. With 20 pins and 5 output channels, the product is RoHS compliant, ensuring adherence to environmental standards. This DC-DC converter suits industrial, telecommunications, computing, and power supply applications requiring compact, efficient, and robust voltage conversion.

Operates input voltage range: 13.5V to 42V dc. Settable output voltages between 5V and 25V dc. Maximum output current of 6 A and output power of 150 W. High efficiency of 98% reduces power loss and heat dissipation. Compact DIP package: 14.7 x 16.3 x 7.5 mm and weighs 3.7 g.

Provided with short circuit protection and programmable UVLO. Operating temperature range from -40 °C to 100 °C. Low ripple and noise at 50mV peak-to-peak supports sensitive devices. Compliance with RoHS ensures environmental safety.
