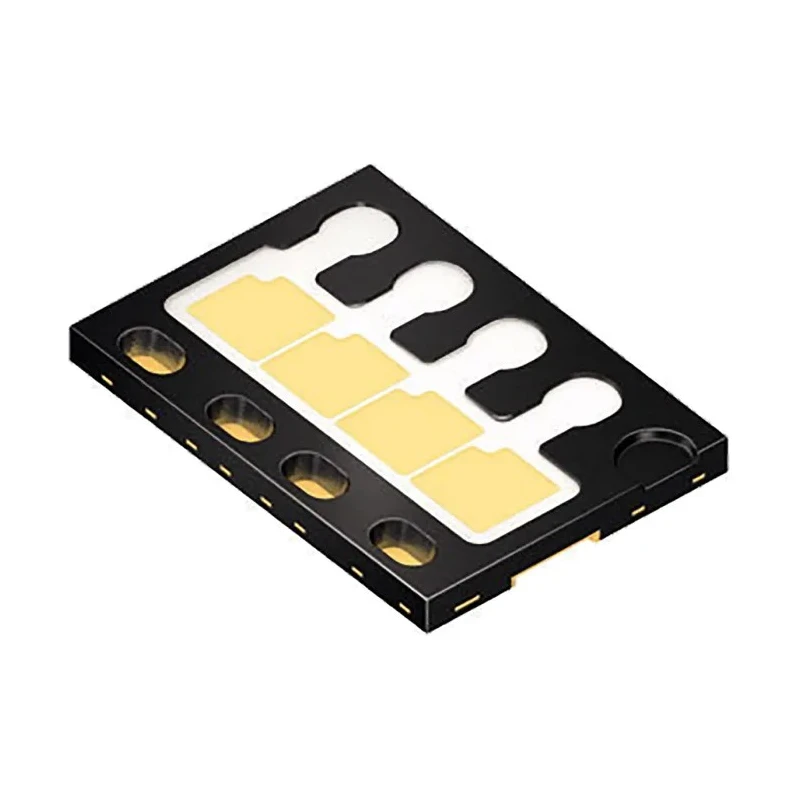

ams OSRAM White LED SMD Epoxy Surface Mount 12.3 V 50mA 120° Viewing Angle 4 LEDs OSLON Black Flat KW H4L531.TE

ams OSRAM KW H4L531.TE White LED SMD Epoxy Surface Mount LED array operates at 12.3 V with a maximum forward current of 50 mA, delivering high brightness for versatile lighting applications.

This OSLON Black Flat LED from OSRAM Opto Semiconductors is a compact, ultra-flat multi-chip component ideally suited for slim designs requiring uniform and bright illumination. It features 4 white LEDs packaged in a robust surface mount epoxy with a flat lens, optimizing light output and thermal management.

The LED lens dimensions are 5.3 x 3.75 x 0.43 mm with a wide 120° viewing angle, enabling broad and uniform light dispersion. The device provides a luminous flux range from 1120 to 1590 lumens at a colour temperature of 6000 K, suitable for daylight-like white light output.

Thermal resistance is low at 4 K/W, supported by a QFN ceramic converter package to ensure long-lasting performance and reliability under demanding conditions.

Applications include automotive headlamps, low and high beams, daytime running lights, fog lights, cornering lights, bicycle illumination, and backup lights. The product is manufactured in Malaysia and meets international standards IEC 62471:2008 and IEC 60810, ensuring electrical and optical safety compliance.

The OSLON Black Flat LED array is well-suited for industrial, automotive, and commercial lighting solutions requiring compact dimensions and high luminous efficacy without additional lenses.

The LED operates at 12.3 V forward voltage and 50 mA current. Flat lens with dimensions 5.3 x 3.75 x 0.43 mm and 120° viewing angle. 4 LEDs in a single surface mount epoxy package. Luminous flux between 1120 to 1590 lm with 6000 K colour temperature.

Robust QFN package provides low thermal resistance and durability. Suitable for automotive lighting including headlamps and fog lights. Compliant with IEC 62471:2008 and IEC 60810 safety standards. Explore our full range of advanced LED components and lighting solutions tailored for electronics, automotive, and industrial applications on EnvMart.
