Eaton 2 Position Knob Actuator 16 A, 400V AC, 3 Phase, ATEX Certified, Model GHG4188190R6002

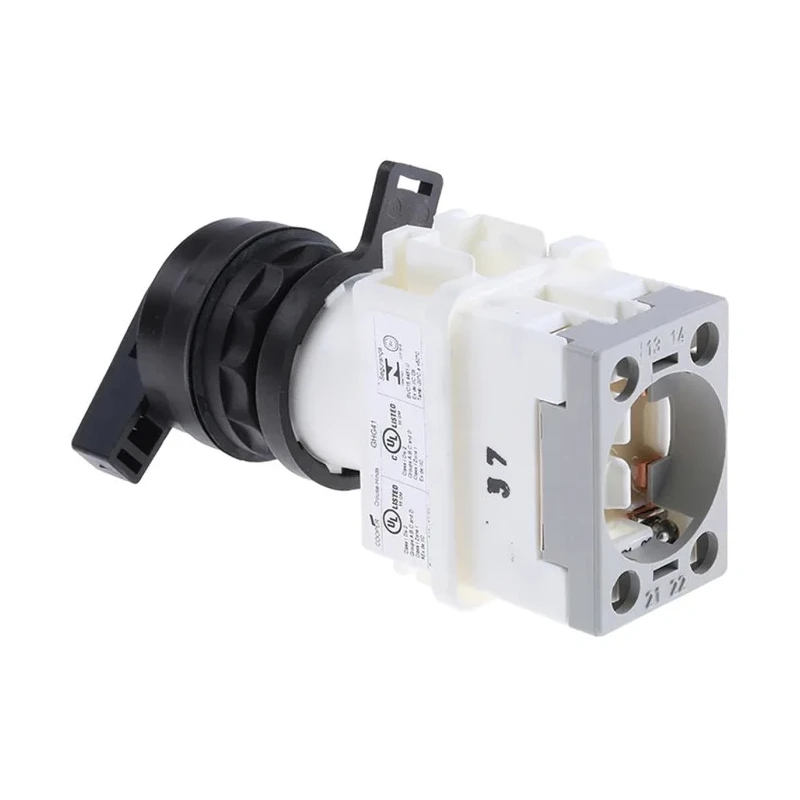

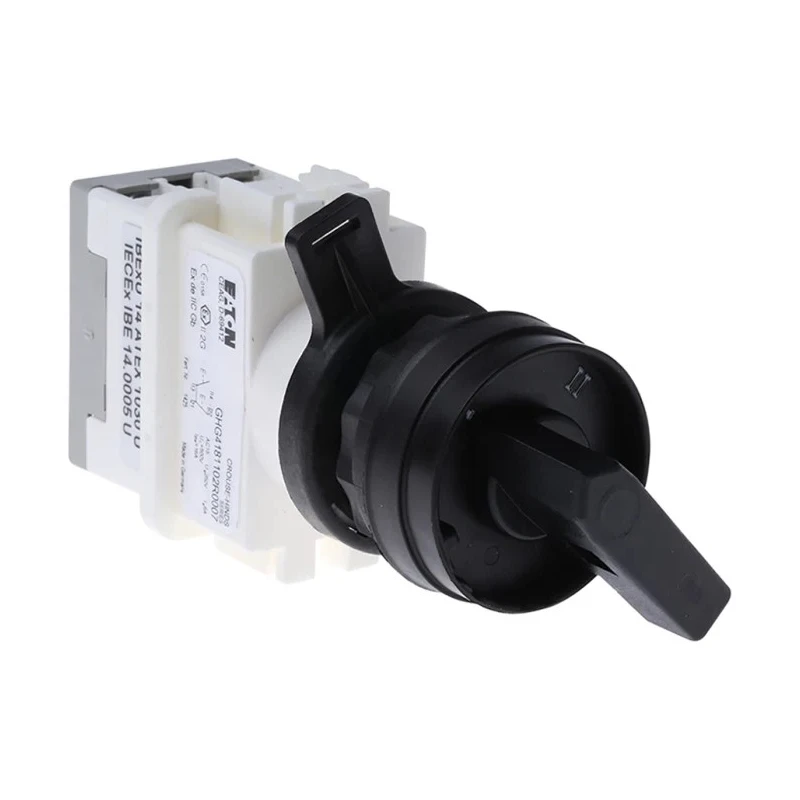

Eaton GHG4188190R6002 2 Position Knob Actuator is a reliable rotary control switch designed to operate in hazardous areas including Zone 1 environments. It operates at 16A current and 400V AC voltage with a 3-phase electrical configuration. The actuator’s knob type design provides precise two-position SPDT switching capability for industrial control panels used in automation and electrical systems.

This selector switch features a panel mounting design with a clamp nut front element for secure installation. It requires a mounting hole diameter of 30.5 mm and supports a maximum panel thickness of 5 mm. The switch body and contact block components are installed via a quick-action bayonet mechanism from the rear, facilitating efficient maintenance and replacement.

The robust housing is constructed from EN polyamide combined with glass reinforced polyester, ensuring durability and resistance in harsh operating conditions ranging from -55°C to 50°C. Certified for hazardous areas with ATEX II 2 G EEx d e IIC T6 standard, this actuator meets stringent safety requirements. Additionally, it is RoHS compliant, supporting environmental sustainability.

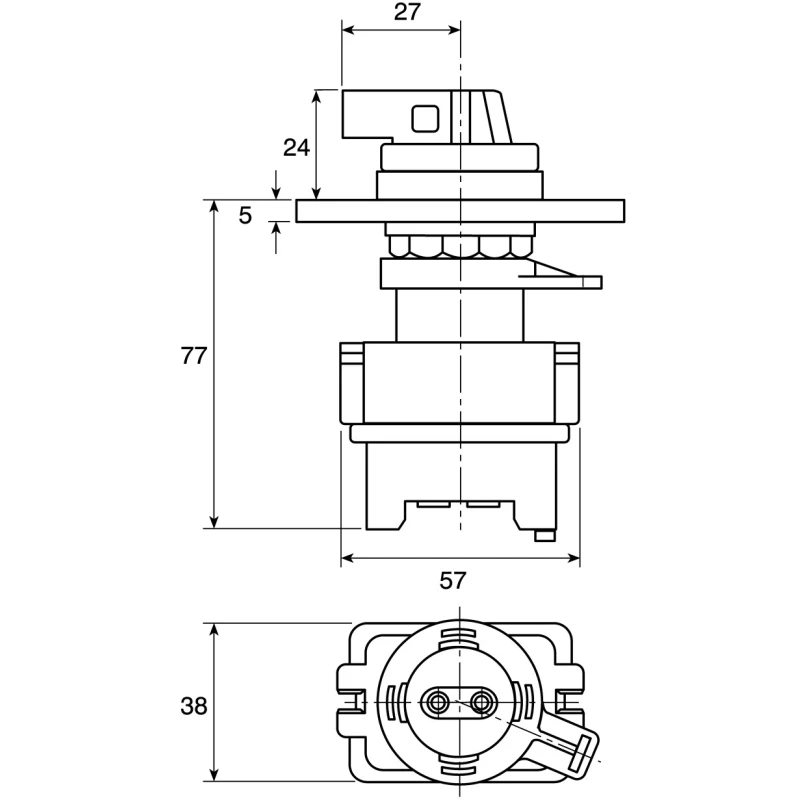

The compact dimensions are 57 mm length, 38 mm width, and 77 mm depth behind the panel with a front panel depth of 24 mm. It is ideal for industrial automation, electrical switchgear, control panels, and hazardous location installations. Made in Germany, this Eaton cam switch actuator guarantees premium quality and reliability in demanding industrial applications.

The actuator features a knob type suitable for two-position SPDT contact configuration. It supports a 3-phase electrical system with current rating of 16 amperes. Operating temperature ranges from -55°C to 50°C ensuring durable performance in extreme conditions.

The housing is made from EN polyamide and glass reinforced polyester for robust industrial applications. Mounting hole required is 30.5 mm diameter and maximum panel thickness is 5 mm. The product meets ATEX hazardous area certification and RoHS compliance standards.

The dimensions behind the panel are 57 x 38 x 77 mm with front panel depth of 24 mm. Suitable for industrial, electrical automation, and hazardous zone applications. Manufactured in Germany to high quality standards. Explore our extensive range of industrial electrical switches and actuators at EnvMart to find suitable components for your automation and control system needs.
