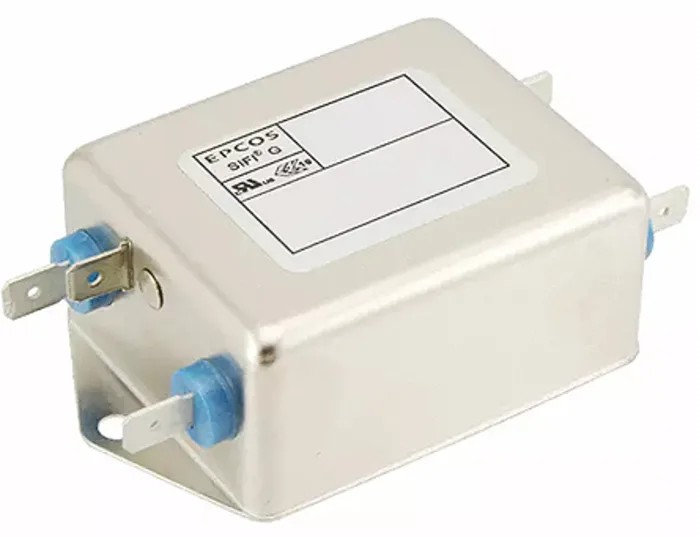

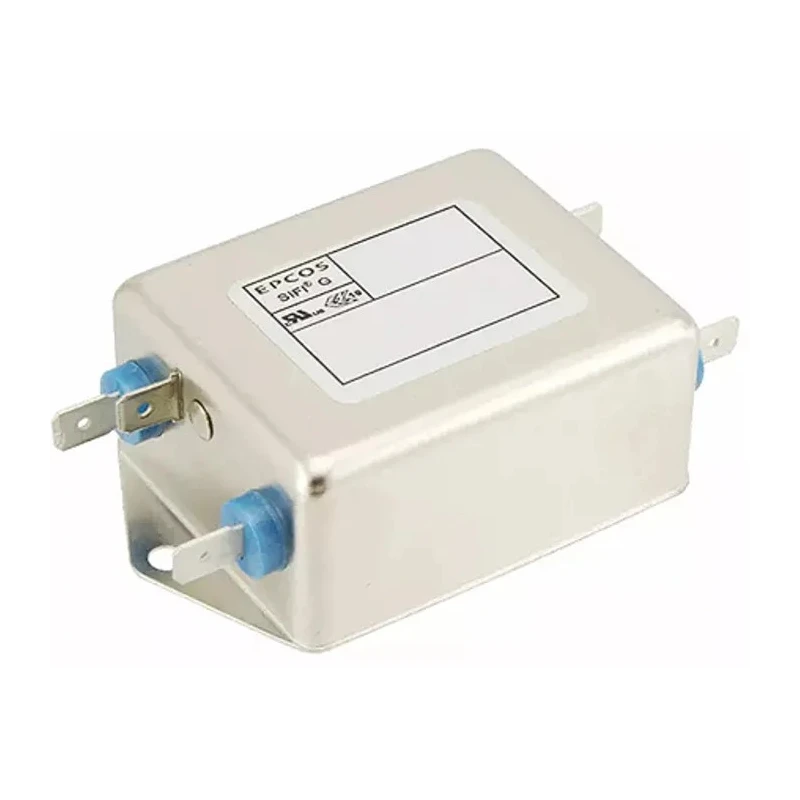

TDK Chassis Mount 1-Phase EMC Filter Lug 16A 250V AC/DC 50Hz 60Hz B84112G0000M116
Specifications
| Country of Origin | China |
|---|---|
| Brand | TDK |
| Height | 29mm |
| Length | 63mm |
| Model | B84112G0000M116 |
| Depth | 51mm |
| Mount Type | Chassis Mount |
| Operating Frequency | 50, 60Hz |
| Series | B84112G |
| Maximum Operating Temperature | 100°C |
| Number Of Stages | 1 |
| Capacitance | 2μF |
| Minimum Operating Temperature | -25°C |
| Maximum Current | 16A |
| Number of Phases | 1 |
| Leakage Current | 0mA |
| Maximum Voltage | 250V ac/dc |
| Inductance | 2mH |
| Standards/Approvals | UL1283 |
| Termination Style | Lug |
Key Features
- Compact design enables easy installation on chassis.
- Constructed with two line filters and a metal case for durability.
- Capacitance of 2μF and inductance of 2mH for effective EMC noise suppression.
- Rated for a maximum current of 16A and voltage of 250V AC/DC.
- Operates reliably between -25°C and 100°C ambient temperatures.
- Features a lug type termination for secure electrical connections.
- UL1283 standard compliance ensures safety and quality.
- Designed for use in industrial electronics and telecom systems.
Product Description
TDK B84112G0000M116 is a high-performance EMC Filter designed for chassis mount applications in single-phase electrical systems. Featuring a lug termination style, this filter supports a maximum current of 16 amperes and voltage up to 250 volts AC/DC, operating efficiently at both 50 Hz and 60 Hz frequencies.
The compact metal casing encloses two line filters, providing robust electromagnetic compatibility noise suppression. The filter's electrical characteristics include a capacitance of 2μF and an inductance of 2mH, designed to minimize interference in sensitive electronic systems.
Operating temperature range of -25°C to 100°C ensures reliable function across diverse environmental conditions. The product meets UL1283 certification standards, affirming its compliance with stringent safety and performance requirements.
Applications for the B84112G0000M116 EMC filter span industrial electronics, telecommunications equipment, switch-mode power supplies, data communication systems, DC applications, and medical equipment requiring EMI noise mitigation.
This product is manufactured in China, reflecting TDK's commitment to quality and technical excellence. Compact design for easy chassis mounting. Two line filters integrated within a durable metal case. Capacitance: 2μF, Inductance: 2mH for effective noise suppression.
Rated current: 16A, Rated voltage: 250V AC/DC. Temperature range: -25°C to 100°C for diverse environments. Lug termination ensures reliable electrical connection. UL1283 safety and quality standard compliance. Suitable for industrial electronics, telecom, and medical equipment.
Supports both 50 Hz and 60 Hz operating frequencies. Manufactured in China. Explore more EMC filters and Power Line Filters at EnvMart for industrial and electronic applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum current rating of this filter is 16A.
It supports a maximum voltage of 250V AC/DC.
The capacitance is 2μF and the inductance is 2mH.
The operating temperature range is from -25°C to 100°C.
It features a lug type termination for secure electrical connections.
This model is designed for chassis mount applications.
It operates efficiently at both 50 Hz and 60 Hz frequencies.
It complies with UL1283 certification standards.
The dimensions are 63mm in length, 51mm in depth, and 29mm in height.
It is suitable for industrial electronics, telecommunications equipment, and medical equipment requiring EMI noise mitigation.
This filter has a single stage design.
It is manufactured in China.
