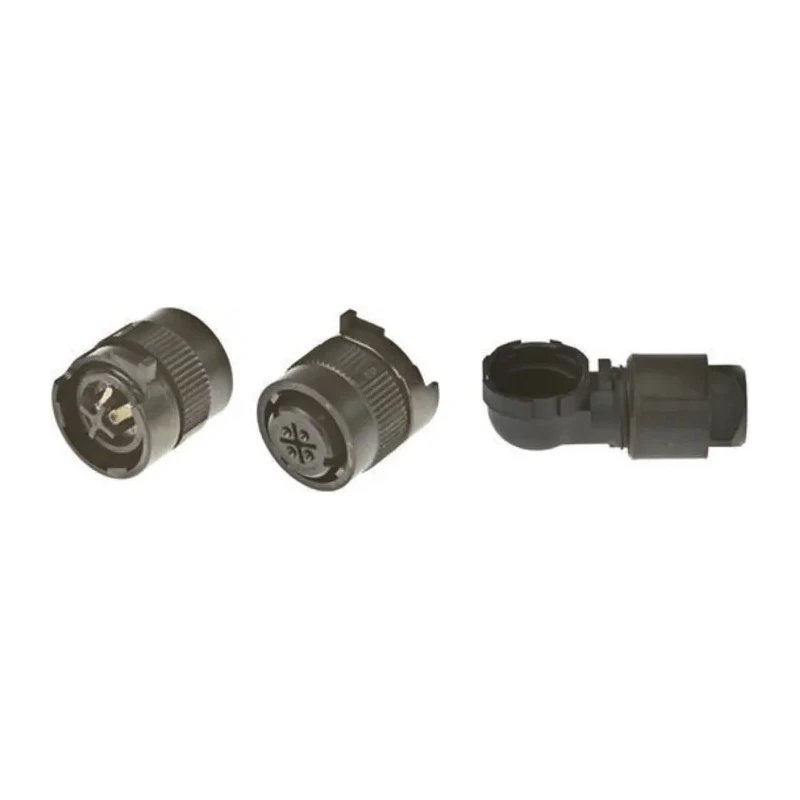

JAE Circular Connector, 10 Contacts, Cable Mount, 22 mm Connector Size, Plug Female, IP67 Rated, Right Angle JN2FS10SL1-R

Free Delivery in India | Lowest Global Shipping Charges

JAE Circular Connector, 10 Contacts, Cable Mount, 22 mm Connector Size, Plug Female, IP67 Rated, Right Angle JN2FS10SL1-R



Category Circular Connector Brand JAE Condition New

Specifications

Country of Origin	India
Voltage	200V
Brand	JAE
Orientation	Right Angle
Current	3A
Model	JN2FS10SL1-R
IP Rating	IP67
Mount Type	Cable
Housing Material	Synthetic Resin
Contact Material	Copper
Series	JN2
Termination Type	Crimp
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-20°C
Pole Format	10
Contact Plating	Gold over Nickel
Number of Contacts	10
Contact Gender	Female
Shell Size	20 mm
Mating Type	Push Lock
Connector Size	22 mm
Plug/Socket	Plug

Key Features

The connector supports a current rating of 3 amperes.
It operates at a voltage rating of 200 volts suitable for industrial use.
The right-angle orientation allows flexible cable routing in tight spaces.
The mating type is push lock ensuring secure and easy connection.
Constructed using synthetic resin housing for durability and insulation.
Gold over nickel plating on copper contacts provides reliable conductivity and corrosion resistance.
Designed for operation in temperatures from -20°C to 125°C.
Termination is by crimping method for secure electrical and mechanical connection.

Product Description

JAE JN2FS10SL1-R is a high-quality circular connector from the JN2 Series, designed for industrial and commercial electronic applications. This connector features 10 female contacts arranged in a cable mount configuration and a 22 mm connector size. It is a plug type connector with a right-angle orientation and a push lock mating mechanism, delivering reliable and easy installation with secure locking.

The connector supports a current rating of 3 amperes and operates at up to 200 volts, making it suitable for a wide range of electrical and electronic circuits including industrial machinery, automation equipment, and power supply connectors. The housing is made of synthetic resin that ensures insulation, durability, and resistance to environmental factors.

The contacts are made of copper with gold over nickel plating, providing excellent electrical conductivity and corrosion resistance. It uses the crimp termination method allowing strong mechanical and electrical connections with cables. The connector is designed to function reliably in operating temperatures ranging from -20°C to 125°C.

The JN2 Series connectors are IP67 rated, providing protection against dust ingress and immersion in water up to a defined depth, making it suitable for harsh environments such as outdoor installations and industrial settings that require waterproof and dustproof connectors.

Additional features include the 90° plug which allows the cable leader direction to be adjusted in four directions by rotating the plug 90° increments for flexible installation. The series uses a push and twist one-touch lock mechanism that ensures firm mating and easy disconnection when needed.

This product is ideal for use in industrial Circular Connector applications, electronics manufacturing, power connectors, and automation industries. Packaging and pieces information are managed per individual unit ready for insertion into machinery, enabling improved production efficiency.

Explore EnvMart for more connectors and electronic components to enhance your systems and projects.
