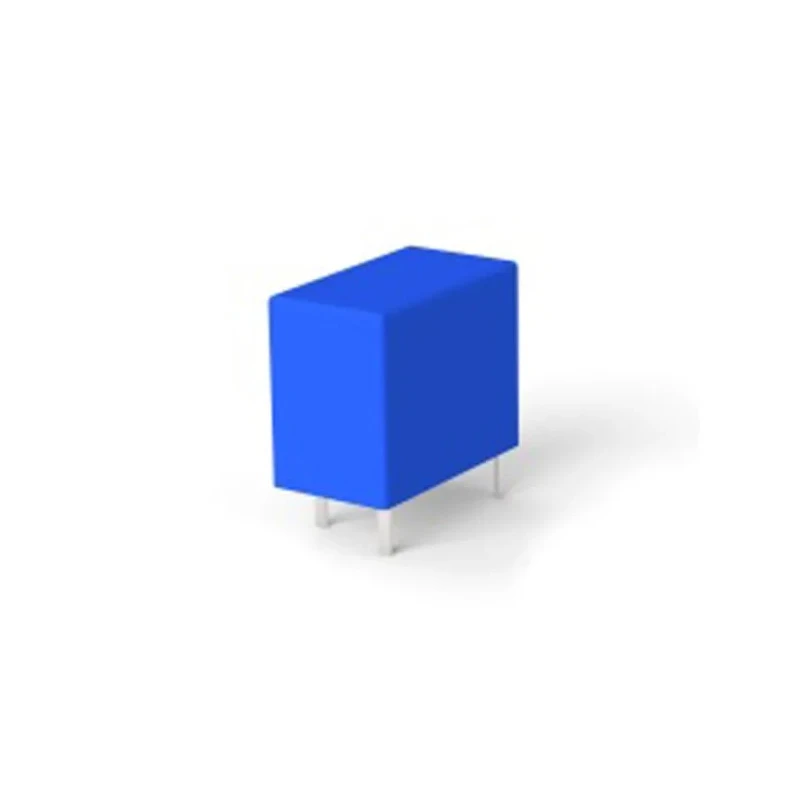

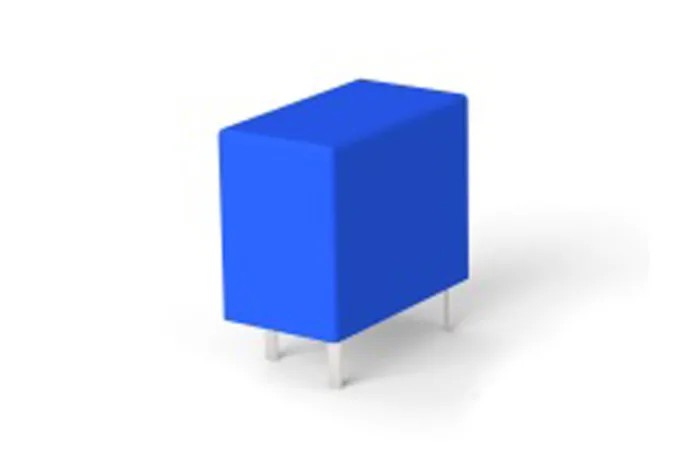

TE Connectivity PCB Power Relay 12V DC Coil 10A Switching Current SPST OJE-SH-112HM,000

TE Connectivity OJE-SH-112HM,000 PCB Power Relay is a high-quality relay engineered for controlling HVAC systems and various industrial applications. It incorporates a 12V DC coil and is capable of switching currents up to 10A with a Single Pole Single Throw (SPST) contact configuration, making it suitable for diverse electrical control circuits.

This relay is specifically designed for mounting on printed circuit boards (PCBs) with robust PCB pin terminals, ensuring secure electrical connections and easy integration into electronic assemblies. The coil resistance of 320 ohms leads to low coil power consumption of 450 milliwatts, optimizing energy efficiency during operation.

The device operates reliably within a temperature range of -30°C to 70°C, accommodating demanding environmental conditions typical in industrial settings. It is built to switch a maximum DC voltage of 30V as well as AC voltages up to 277V, offering versatility in control circuit design.

The compact dimensions (18.2mm length, 10.2mm width, 14.7mm height) make it suitable for space-constrained applications without compromising performance. The contact materials are silver alloy, chosen for their superior conductivity and extended durability, ensuring long-lasting and stable operation.

Furthermore, this relay complies with RoHS standards, endorsing its environmental safety and reduced hazardous substance content. The relay features a 12V DC coil voltage delivering reliable operation. It supports a switching current of 10A for both AC and DC loads.

Contact configuration is Single Pole Single Throw (SPST) for simple on/off control. Mount type is optimized for PCB installation with PCB pin terminals. The coil resistance is 320 ohms ensuring efficient coil power consumption of 450mW.

Operational temperature ranges from -30°C to 70°C, suitable for varied environments. Physical dimensions are compact: length 18.2mm, width 10.2mm, and height 14.7mm. Switching voltage supports up to 30V DC and 277V AC for flexible industrial use.

Contact material is silver alloy, enhancing conductivity and durability. RoHS compliant, meeting environmental and safety standards.

This power relay is ideal for use in industrial automation, HVAC control panels, manufacturing equipment, and other applications requiring dependable switching of electrical loads on PCBs. The robust design and compliance with international standards ensure it delivers consistent performance and safety over its service life.
