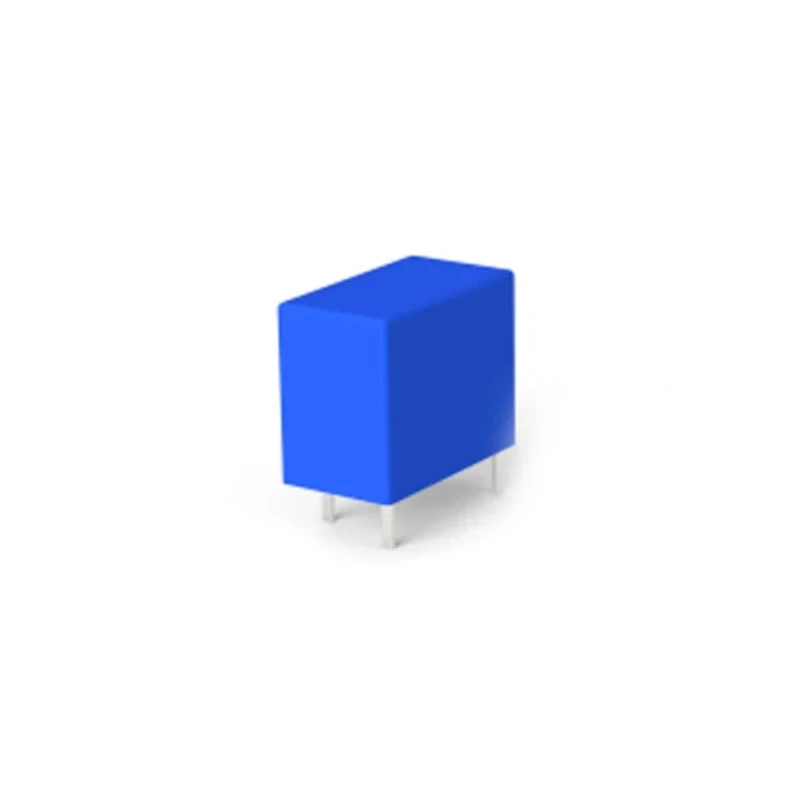

TE Connectivity PCB Power Relay 5V DC Coil, 10A Switching Current, SPST OJE-SH-105HM,000
Specifications
| Country of Origin | China |
|---|---|
| Brand | TE Connectivity |
| Height | 14.7mm |
| Length | 18.2mm |
| Model | OJE-SH-105HM,000 |
| Width | 10.2mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | OJE |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -30°C |
| Switching Current | 10A |
| Terminal type | PCB Pin |
| Standards/Approvals | RoHS |
| Coil Resistance | 55.6Ω |
| Coil Voltage | 5V dc |
| Switching DC Voltage | 30V dc |
| Switching AC Voltage | 277V |
| Coil Power | 450mW |
Key Features
- Features a SPST contact configuration for reliable switching.
- Operates at a coil resistance of 55.6 ohms with 450mW coil power.
- Supports switching voltages up to 30V DC and 277V AC.
- Compact dimensions of 18.2mm length, 14.7mm height, and 10.2mm width.
- Constructed with silver alloy contact materials for durability.
- Operating temperature range from -30°C to 70°C for versatile environments.
- Mount type is PCB with PCB pin terminals for secure installation.
- Certified RoHS compliant ensuring environmental safety.
Product Description
TE Connectivity OJE-SH-105HM,000 is a high-quality PCB power relay engineered for industrial control systems and HVAC applications, featuring a 5V DC coil and a 10A switching current capacity.
Designed to provide reliable switching with SPST contact configuration, this power relay operates with a coil resistance of 55.6 ohms dissipating 450mW of coil power. It is capable of switching loads with DC voltage up to 30V and AC voltage up to 277V.
The relay measures 18.2mm in length, 14.7mm in height, and 10.2mm in width, making it suitable for compact PCB mounting with secure PCB pin terminals. Silver alloy contacts ensure long-term durability and stable electrical performance.
Operating reliably in temperatures ranging from -30°C to 70°C, this relay is ideal for a broad range of industrial, HVAC, and electrical automation systems. It complies with RoHS standards, underscoring its environmental and safety quality.
Features a SPST contact configuration for reliable switching. Operates at a coil resistance of 55.6 ohms with 450mW coil power. Supports switching voltages up to 30V DC and 277V AC. Compact dimensions of 18.2mm length, 14.7mm height, and 10.2mm width.
Constructed with silver alloy contact materials for durability. Operating temperature range from -30°C to 70°C for versatile environments. Mount type is PCB with PCB pin terminals for secure installation. Certified RoHS compliant ensuring environmental safety.
This relay is suitable for use in industrial manufacturing, HVAC control systems, automation, and power management applications. Its robust design and compact form factor make it an excellent choice for PCB integration in demanding electrical control systems.
Explore the full range of Power Relays and related electrical components on EnvMart to find precision components that suit your technical requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The power relay has a switching current capacity of 10A.
This model operates with a coil voltage of 5V DC.
It measures 18.2mm in length, 14.7mm in height, and 10.2mm in width.
It features a SPST (Single Pole Single Throw) contact configuration.
The relay supports switching voltages up to 30V DC and 277V AC.
The coil resistance is 55.6 ohms.
The contacts are constructed from silver alloy, ensuring durability.
It operates reliably within a temperature range of -30°C to 70°C.
This model is designed for PCB mounting and features PCB pin terminals for secure installation.
Yes, it is certified RoHS compliant, ensuring environmental safety.
It is suitable for industrial control systems, HVAC applications, and electrical automation.
The coil power consumption is 450mW.
