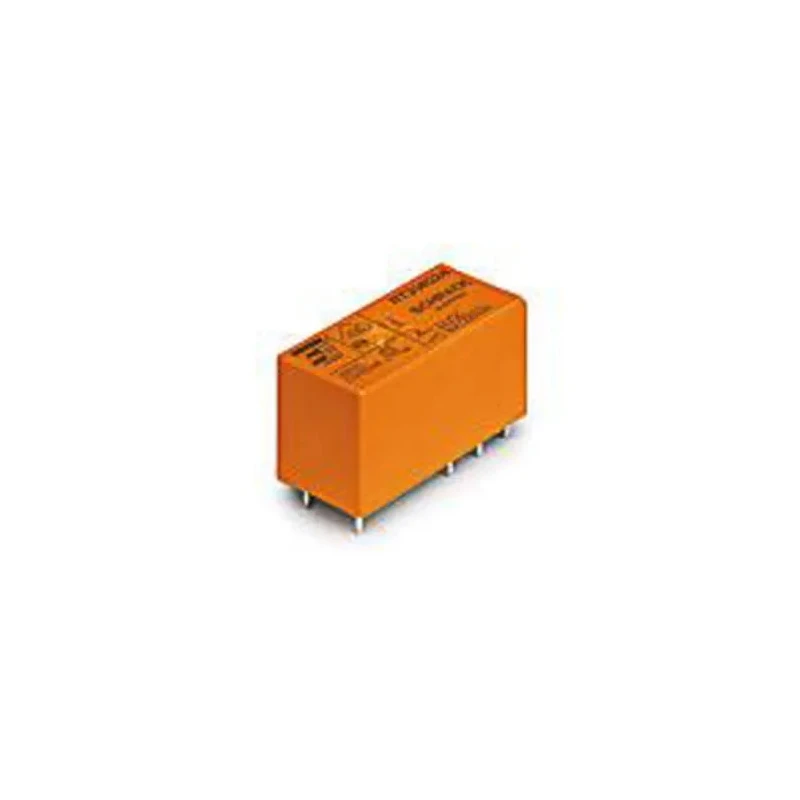

TE Connectivity SCHRACK SPST PCB Power Relay 12V DC Coil, 16A Switching Current 1415898-2

TE Connectivity 1415898-2 is a SCHRACK series SPST PCB Power Relay engineered for industrial and electrical applications requiring precise switching control. It features a 12V DC coil and supports a switching current of 16A, making it suitable for controlling lighting systems, movement sensors, filament and incandescent lamp loads, as well as motors. The relay coil power is rated at 400 mW with a coil resistance of 360 ohms ensuring efficient power consumption.

The relay’s contact configuration is Single Pole Single Throw (SPST), providing a straightforward switching mechanism. It can switch AC voltages up to 400V, making it robust for diverse load demands. Manufactured with silver alloy and tungsten contact materials, it offers high reliability and conductivity under electrical stress.

Dimensionally compact with a length of 29 mm, height of 15.7 mm, and width of 12.7 mm, this relay is designed for easy PCB mounting and solder terminal connections. Its operating temperature range from -10°C to 85°C allows for stable performance in various environmental conditions.

This bi-stable power relay includes reinforced insulation to enhance safety and durability. It meets a range of global standards including cCSAus 1142018, IEC 60335-1, UL 508/NEMA 410, UL E214025, and VDE Cert. No. 40007571, certifying its compliance with safety and operational protocols.

Manufactured in Austria, the relay combines high quality and precise engineering for demanding electrical control applications in industrial, manufacturing, and automation sectors.

Designed with a Single Pole Single Throw (SPST) contact configuration for reliable switching. Equipped with a 12V DC coil voltage and low coil resistance of 360 ohms for efficient operation. Capable of handling a switching current of 16A and switching AC voltage up to 400V AC.

Constructed with silver alloy and tungsten contact material to ensure durability and conductivity. Compact dimensions of 29mm length, 15.7mm height, and 12.7mm width fit standard PCB mounting. Supports an operating temperature range from -10°C to 85°C for versatile usage.

Features a bi-stable coil design with reinforced insulation for enhanced safety. Compliance with multiple standards including cCSAus 1142018, IEC 60335-1, UL 508, and VDE certification. Ideal for use in lighting systems, movement sensors, filament and incandescent lamp loads, and motor control.
