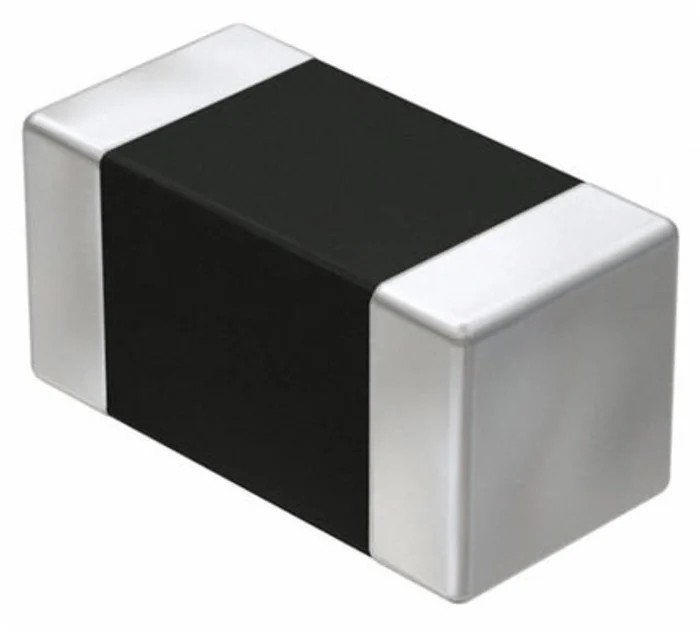

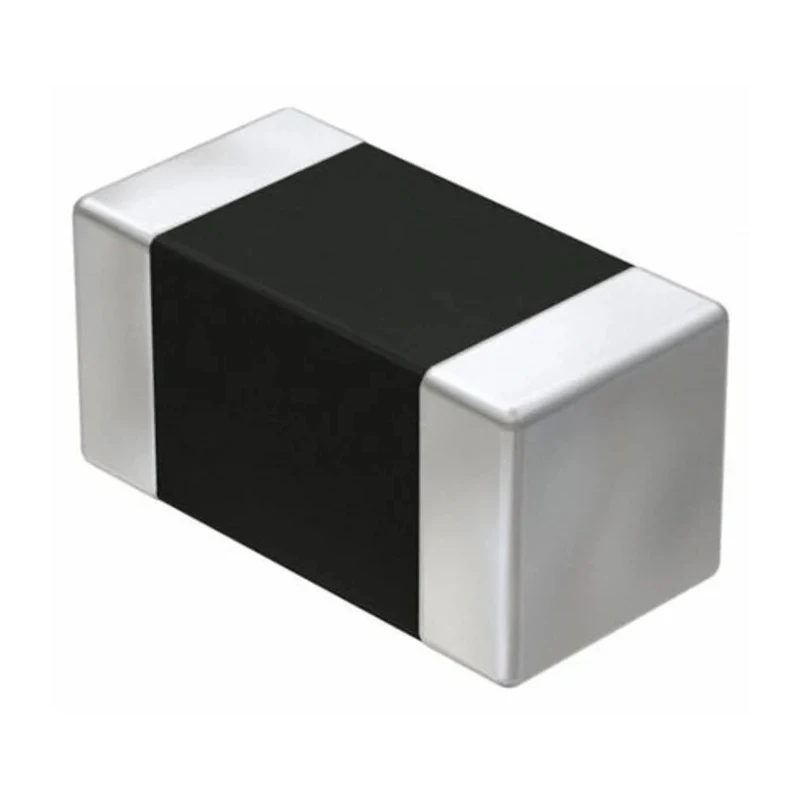

Wurth Elektronik 1812 Shielded Multilayer Surface Mount Inductor with Ferrite Core, 3A DC Current 742792515
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | Wurth Elektronik |
| Height | 1.5mm |
| Length | 4.5mm |
| Depth | 3.2mm |
| Packaging | Tape & Reel |
| Series | WE-CBF |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Core Material | Ferrite |
| Standards/Approvals | RoHS, REACH |
| Package/Case | 1812 |
| Maximum DC Current | 3A |
| Pin Count | 2 |
| Maximum DC Resistance | 50mΩ |
| Termination Style | Surface Mount |
| Inductor Construction | Multilayer |
| Automotive Standard | AEC-Q200 |
| High Current | Current supply, DC/DC converter etc |
| Wide Band | Control signals, RS232, RS422, DC/DC converter, etc |
Key Features
- Maximum DC current rating of 3A ensures reliable performance under high-load conditions.
- Compact 1812 package size with dimensions 4.5mm length, 3.2mm depth, and 1.5mm height.
- Ferrite core construction provides excellent magnetic shielding and low electromagnetic interference.
- Designed for surface mount technology with reliable Ni-Sn electrodes suitable for reflow soldering.
- Meets automotive standard AEC-Q200, suitable for automotive and industrial electronics.
- Operating temperature range from -55°C to 125°C for broad environmental tolerance.
- Typical maximum DC resistance of 50mΩ minimizes power loss and heat generation.
- Applications include high-speed USB 2.0, IEEE 1394 interfaces, control signal filtering, RS232, RS422, and DC/DC converters.
Product Description
Wurth Elektronik 742792515 is a shielded multilayer surface mount inductor featuring a ferrite core and multilayer construction to provide outstanding electronic performance at a maximum DC current of 3A.
The compact 1812 package measures 4.5mm in length, 3.2mm depth, and 1.5mm height, optimized for space-saving printed circuit board (PCB) layouts in various industrial and automotive applications.
The ferrite core material and shielding deliver excellent electromagnetic interference (EMI) suppression, making this inductor ideal for high-speed data line filtering and voltage de-coupling.
Its reliable Ni-Sn electrode termination ensures compatibility with standard reflow soldering techniques commonly used in modern electronics manufacturing. Certified to automotive standard AEC-Q200, this inductor withstands a wide operating temperature range from -55°C to 125°C, making it suitable for harsh environmental conditions.
Key applications include USB 2.0, IEEE 1394, LVDS high-speed interfaces, control signals such as RS232 and RS422, as well as DC/DC converters requiring stable inductance and low resistance.
The component is supplied on tape and reel to facilitate automated pick-and-place assembly, increasing production efficiency in industrial, automotive, and telecommunications manufacturing sectors.
Maximum DC current of 3A. Package size 1812 (4.5mm x 3.2mm x 1.5mm). Core material: Ferrite with electromagnetic shielding. Automotive standard AEC-Q200 certified. Operating temperature: -55°C to 125°C. Low maximum DC resistance of 50mΩ.
Multilayer construction for durability and performance. Suitable for high-speed data and control signal filtering applications. Packaging: Tape and reel for automated assembly. Explore more Surface Mount Inductors and components from Wurth Elektronik and related categories on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum DC current rating for this model is 3A, ensuring reliable performance under high-load conditions.
The 1812 package measures 4.5mm in length, 3.2mm in depth, and 1.5mm in height, making it compact for PCB layouts.
It operates within a temperature range of -55°C to 125°C, suitable for various environmental conditions.
The inductor features a ferrite core construction, which provides excellent magnetic shielding and low electromagnetic interference.
Yes, it meets the automotive standard AEC-Q200, making it suitable for automotive and industrial electronics applications.
The typical maximum DC resistance is 50mΩ, which helps minimize power loss and heat generation during operation.
It utilizes a surface mount termination style, compatible with standard reflow soldering techniques.
This model is suitable for applications including high-speed USB 2.0, IEEE 1394 interfaces, and control signal filtering such as RS232 and RS422.
It is supplied on tape and reel, facilitating automated pick-and-place assembly in manufacturing processes.
The inductor features a multilayer construction, which enhances its performance and durability.
Yes, it complies with RoHS and REACH environmental regulations, ensuring it meets safety and environmental standards.
This model has a pin count of 2, suitable for various circuit configurations.
