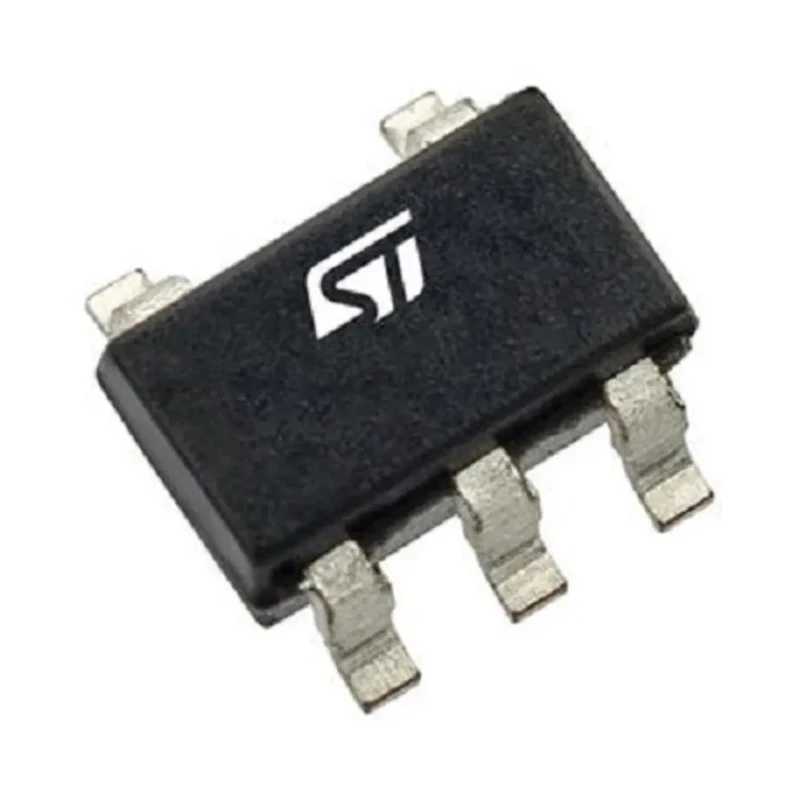

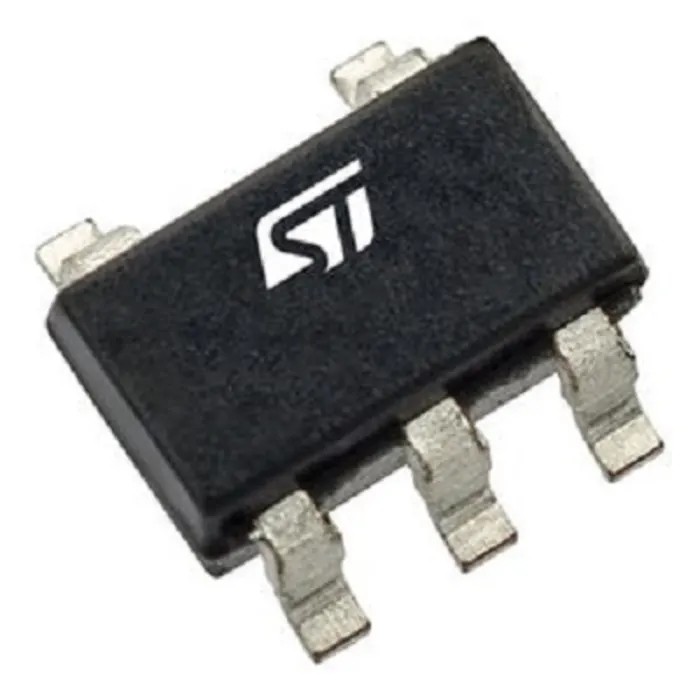

STMicroelectronics Operational Amplifier 6 MHz 36V SOT-23, Surface Mount, 5-Pin TSB711AIYLT
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 1.45mm |
| Length | 3mm |
| Model | TSB711AIYLT |
| Width | 1.75mm |
| Mount Type | Surface |
| Series | TSB711A |
| Output Current | 20mA |
| Maximum Operating Temperature | 125°C |
| Package Type | SOT-23 |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 1 |
| Standards/Approvals | RoHS |
| Pin Count | 5 |
| Automotive Standard | AEC-Q100 |
| Minimum Supply Voltage | 36V |
| GBP - Gain Bandwidth Product | 6MHz |
| Input Bias Current | 900 nA |
| Slew Rate | 3V/μs |
| Input Offset Current | 10 nA |
Key Features
- Operates with a supply voltage up to 36V for versatile applications.
- Surface mount package SOT-23 enables compact PCB integration.
- Single channel with a 5-pin configuration for simple circuit implementation.
- Gain bandwidth product of 6 MHz suitable for precision analog signal processing.
- Operating temperature range from -40°C to 125°C ensures reliability in varying conditions.
- Low input bias current of 900 nA for improved signal accuracy.
- Input offset voltage of 930 μV and low input offset current of 10 nA for precise performance.
- Slew rate of 3 V/μs for responsive signal transitions.
Product Description
The STMicroelectronics TSB711AIYLT is a precision operational amplifier designed for industrial and automotive applications requiring reliable analog signal amplification. Featuring a gain bandwidth product of 6 MHz, this op-amp supports supply voltages from 2.7 V up to 36 V, making it highly versatile for both single and dual supply configurations.
Its compact 5-pin SOT-23 surface mount package, measuring 3 mm length, 1.75 mm width, and 1.45 mm height, allows for high-density PCB layouts in space-constrained designs. The device provides rail-to-rail input and output capability, ideal for maximizing dynamic range in low voltage systems.
With robust electrical characteristics including a low input bias current of 900 nA, minimal offset voltage at 930 μV, and a swift slew rate of 3 V/μs, it delivers accurate and fast analog signal processing. The wide operating temperature range from -40°C to 125°C and compliance with the automotive AEC-Q100 standard ensures durability and performance stability in harsh environments.
The operational amplifier also integrates a 2 kV HBM electrostatic discharge tolerance EMI filter for enhanced device robustness. It can deliver output currents up to 20 mA, suitable for driving various loads in industrial control, instrumentation, and communication systems.
This product is RoHS compliant, meeting environmental and safety standards, making it appropriate for new designs requiring high reliability and worldwide regulatory compatibility.
High gain bandwidth product of 6 MHz for precision signal amplification. Surface mount SOT-23 package for compact circuit designs. Wide supply voltage operation from 2.7 V to 36 V for flexible power configurations. Extended temperature range and automotive AEC-Q100 qualification for harsh conditions.
Low input bias and offset currents ensure signal integrity. Rail-to-rail input/output supports full dynamic range utilization. Fast slew rate of 3 V/μs suitable for dynamic analog signals. Integrated EMI filter and high ESD tolerance for robust operation.
Output current capacity of 20 mA supports various load requirements. RoHS compliant for environmental safety standards.
This Operational Amplifier is ideal for industrial electronics, automotive systems, instrumentation, control circuits, and other applications requiring reliable and precise analog components. Explore more semiconductor and amplifier solutions at EnvMart to find components tailored to your design needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The gain bandwidth product of this operational amplifier is 6 MHz, suitable for precision analog signal processing.
The operational amplifier operates within a temperature range of -40°C to 125°C, ensuring reliability in varying conditions.
This model supports a maximum supply voltage of 36V, making it versatile for various applications.
It can deliver output currents up to 20 mA, suitable for driving various loads in industrial and automotive applications.
The operational amplifier comes in a SOT-23 surface mount package with dimensions of 3 mm length, 1.75 mm width, and 1.45 mm height.
The input bias current is 900 nA, which helps improve signal accuracy in applications.
Yes, it is compliant with the automotive AEC-Q100 standard, ensuring performance stability in harsh environments.
The slew rate of this operational amplifier is 3 V/μs, allowing for responsive signal transitions.
The input offset voltage is 930 μV, contributing to its precise performance in analog signal processing.
Yes, this operational amplifier is RoHS compliant, meeting environmental and safety standards.
This operational amplifier features a single channel configuration, which simplifies circuit implementation.
The minimum operating temperature for the TSB711AIYLT is -40°C, allowing it to function effectively in low-temperature environments.
