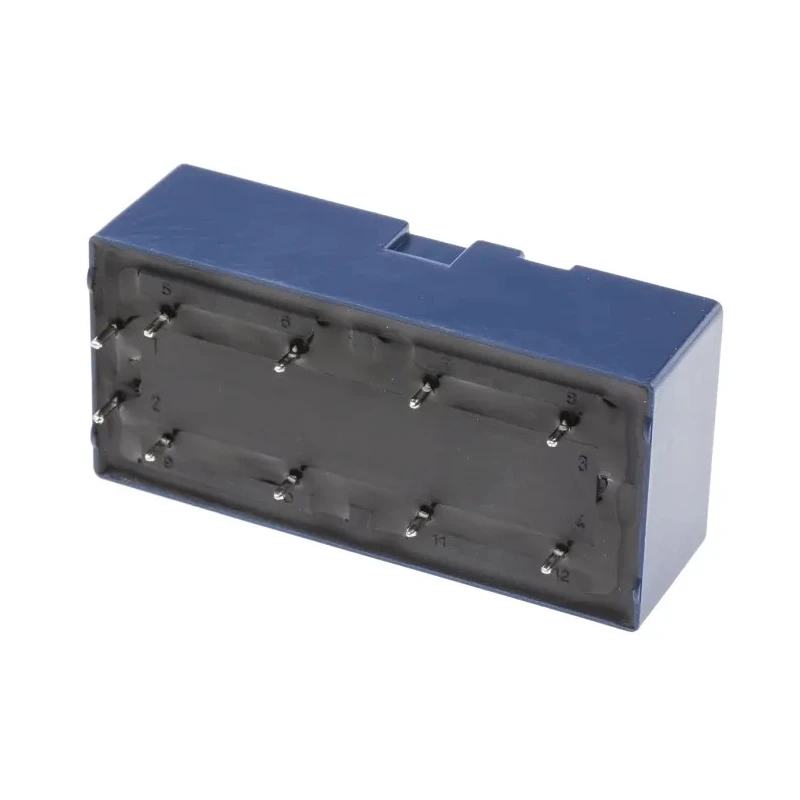

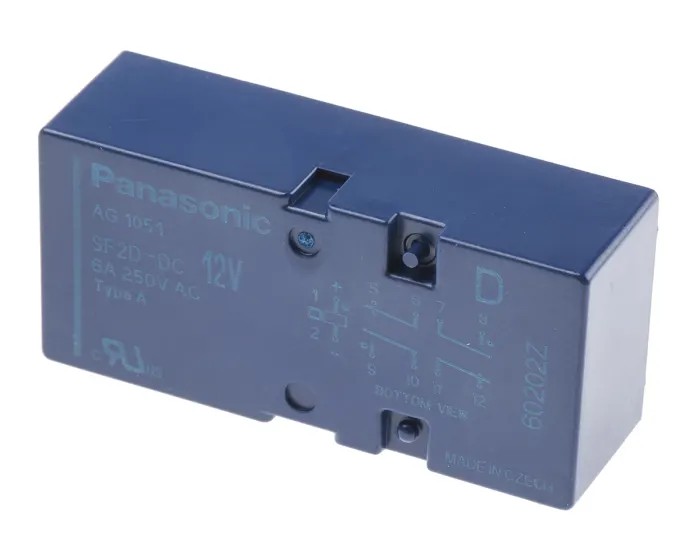

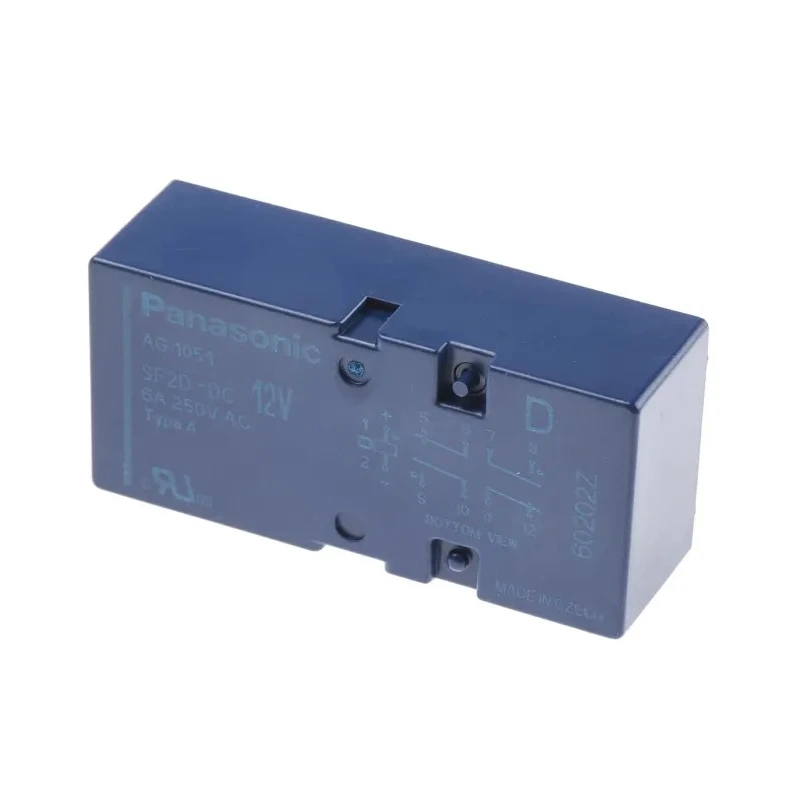

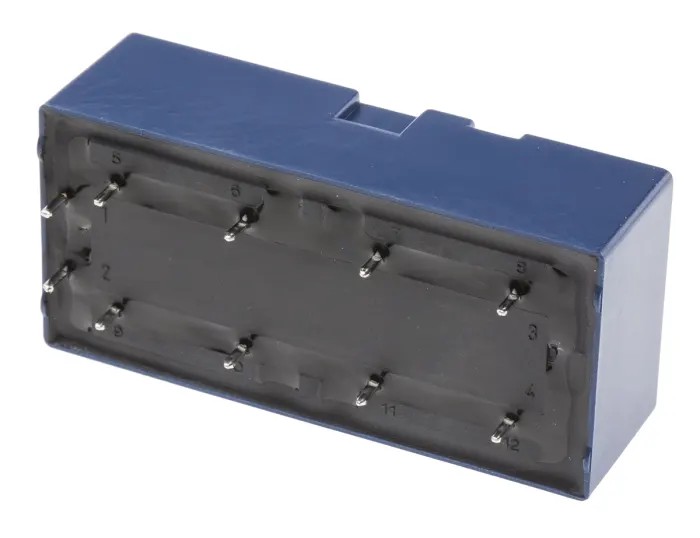

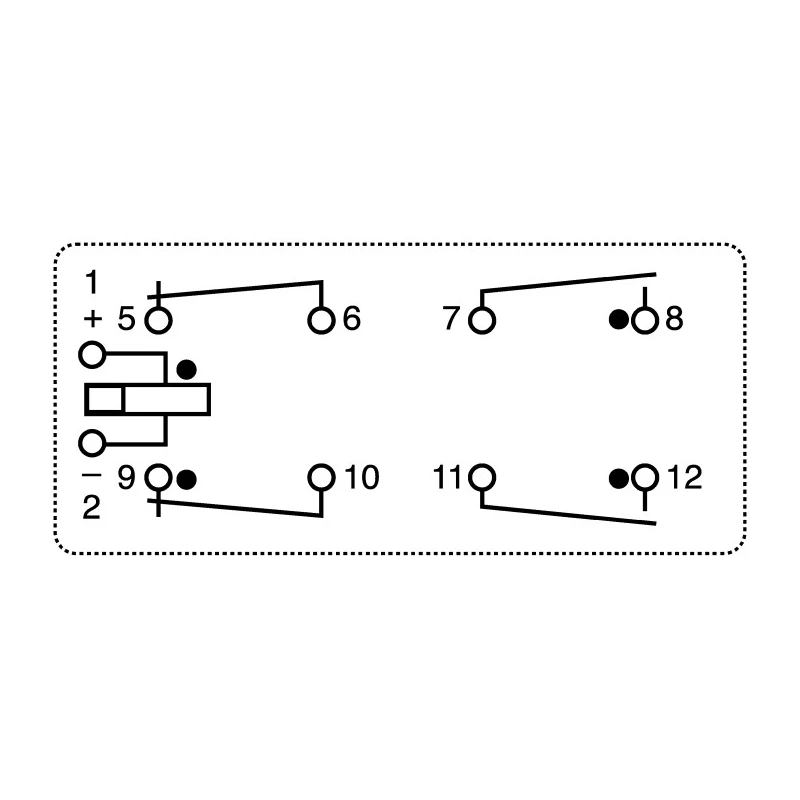

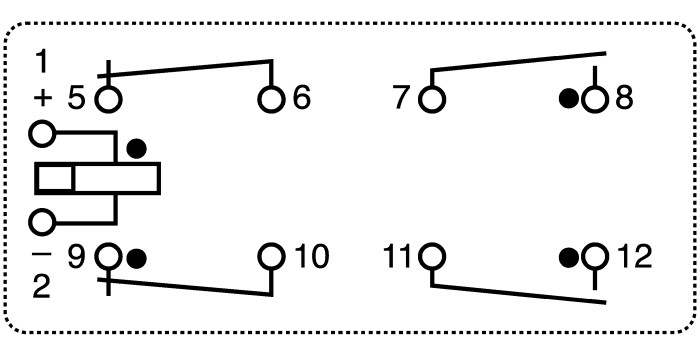

Panasonic PCB Force Guided Relay 12V DC Coil Voltage 2-Pole DPDT SF2D12D

Panasonic SF2D12D PCB Force Guided Relay is a high-quality DPDT relay with 2 poles and a 12V DC coil voltage designed for applications requiring safety and reliability.

This PCB-mount Force Guided Relay belongs to the SF2 series and is engineered for use in machines and installations with stringent safety requirements, such as presses, combustion equipment, railway systems, and medical devices.

Operating over a wide temperature range from -40°C to 70°C, it ensures dependable performance in harsh industrial environments.

The relay features a coil resistance of 288 ohms and low coil power consumption of 500 milliwatts. The solder terminal type facilitates strong and durable electrical connections on printed circuit boards.

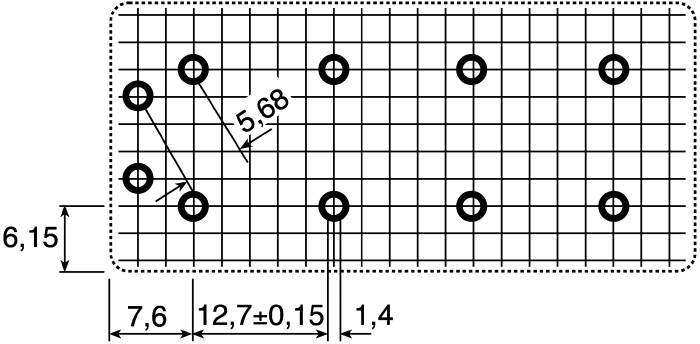

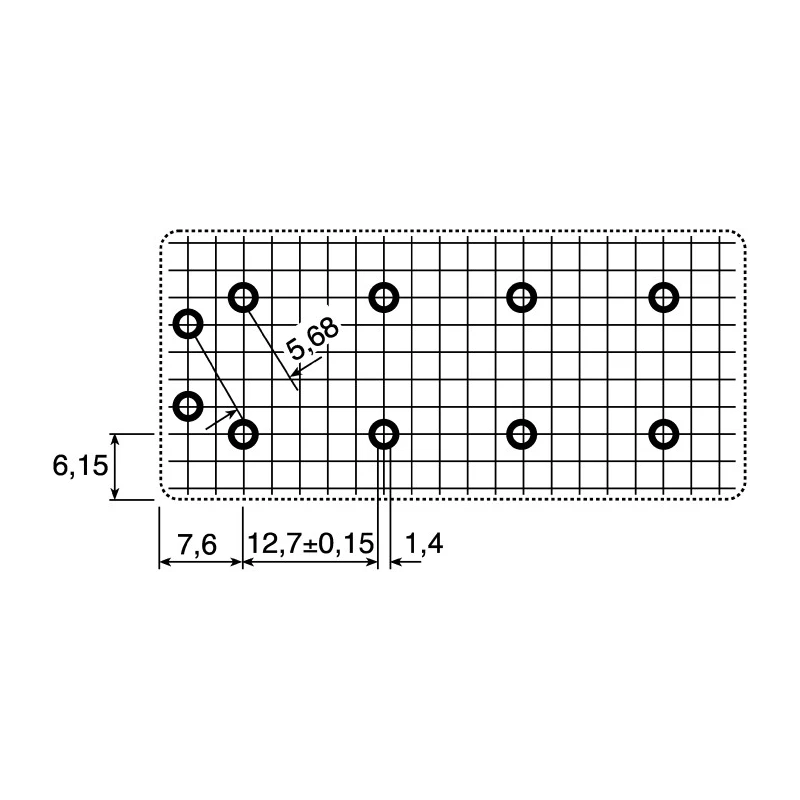

Its compact size with dimensions of 53.3mm length, 16mm height, and 25mm depth allows integration into dense PCB layouts. Isolation voltage between coil and contacts is rated at 2.5kVrms, providing excellent electrical insulation and safety.

The contacts are made of AgSnO2 with a gold flash plating which provides high conductivity and resistance to wear. The device can switch a maximum voltage of up to 400 volts, making it suitable for a wide range of industrial and automation control tasks.

Panasonic’s SF2D12D relay complies with rigorous standards such as EN50205 Type A and IEC60664-1 III/4kV ensuring safe operation in safety-critical applications. It has approvals from cUL, TUV, and SEV certification bodies.

Features a PCB mount type suitable for compact installations. Contact configuration is Double Pole Double Throw (DPDT) for versatile circuit control. Coil resistance of 288 ohms ensures efficient power consumption. Operates reliably from -40°C to 70°C temperature range.

Solder terminal type ensures secure electrical connections. Compact dimensions: length 53.3mm, height 16mm, depth 25mm for easy PCB integration. Isolation between coil and contacts rated at 2.5kVrms for safety compliance.

Contact material is gold plated to enhance durability and conductivity. Maximum switching voltage of 400 volts supports industrial applications. Compliant with safety standards including EN50205 Type A and IEC60664-1 III/4kV.

This relay is ideal for industrial, automation, railway, medical equipment, and manufacturing environments demanding reliable force guided switching safety relays. Explore more relays and electrical components from Panasonic on EnvMart for your safety and control system requirements.
