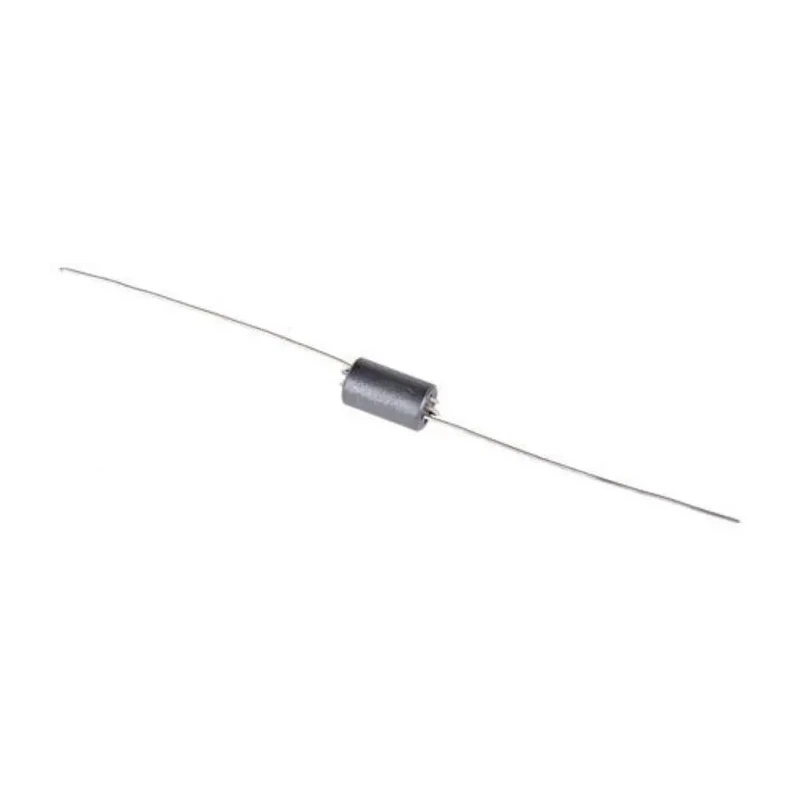

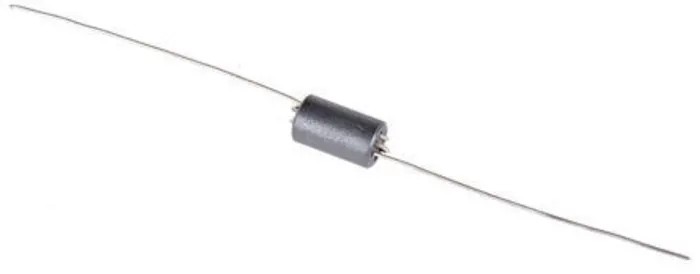

Wurth Elektronik Ferrite Bead 10 mm x 6 mm Through Hole Axial 2-Pin 3A Current Rating 7427501
Specifications
| Country of Origin | Taiwan |
|---|---|
| Diameter | 6mm |
| Brand | Wurth Elektronik |
| Material | Ferrite |
| Height | 10mm |
| Length | 10mm |
| Model | 7427501 |
| Packaging | Bulk |
| Mount Type | Through Hole |
| Current Rating | 3A |
| Series | WE-UKW |
| Maximum Operating Temperature | 125°C |
| Package Type | Axial |
| Sub Type | 6-Hole |
| Minimum Operating Temperature | -25°C |
| Standards/Approvals | IPC/JEDEC J-STD-020D |
| Pin Count | 2 |
| Maximum DC Resistance | 20mΩ |
| Impedance at 100 MHz | 800Ω |
| Impedance at 25 MHz | 598Ω |
Key Features
- This axial ferrite bead features a 6-hole sub-type and 2-pin configuration for through-hole mounting.
- The impedance is 598 Ω at 25 MHz and reaches 800 Ω at 100 MHz for effective high-frequency interference suppression.
- Its maximum DC resistance is 20 mΩ, enabling minimal power loss in circuits.
- Operating temperature range spans from -25°C to 125°C for versatile industrial use.
- Manufactured with high-quality ferrite material, ensuring durability and stable performance.
- Complies with IPC/JEDEC J-STD-020D standards for reliability in electronic applications.
- Suitable for use in text processing, radio frequency interference mitigation, digital devices, and PCB assemblies.
- Bulk packaged for flexible quantity ordering and manufacturing needs.
Product Description
Wurth Elektronik 7427501 ferrite bead is a high-quality, through-hole axial component with dimensions of 10 mm height and 6 mm diameter, designed to suppress electromagnetic interference in electronic circuits. It supports continuous currents up to 3A with short duration peaks up to 5A, making it suitable for a broad range of industrial, laboratory, and electronic manufacturing applications.
The 6-hole ferrite core configuration combined with the 2-pin through-hole mount ensures easy integration into PCBs. This bead provides an impedance of 598 Ω at 25 MHz and 800 Ω at 100 MHz, effectively filtering high-frequency noise in digital and analog circuit environments.
Its maximum DC resistance is 20 mΩ, maintaining low power loss and high efficiency. The operating temperature range from -25°C to 125°C ensures reliability in harsh environments, while its ferrite material composition guarantees consistent performance and longevity. Compliance with IPC/JEDEC J-STD-020D standards assures quality and process compatibility.
Common use cases include EMI filtering in text processing equipment, radio frequency interference suppression in communication devices, and protection of sensitive digital devices on PCBs. The component is bulk packaged allowing flexible quantity orders to suit manufacturing scale requirements.
This axial ferrite bead features a 6-hole sub-type and 2-pin through-hole mounting. Rated for 3A continuous current with a short peak tolerance of 5A. Provides impedance levels of 598 Ω at 25 MHz and 800 Ω at 100 MHz. Has a maximum DC resistance of 20 mΩ for efficient circuit operation.
Operates reliably within a temperature range of -25°C to 125°C. Constructed from ferrite material ensuring durability and performance. Meets IPC/JEDEC J-STD-020D standards for manufacturing and quality assurance. Ideal for EMI reduction in electronic, industrial, and laboratory circuits.
Explore Wurth Elektronik products and similar Ferrite Beads for your electronics component requirements at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a maximum current rating of 3A, with short duration peaks tolerating up to 5A.
The impedance is 598 Ω at 25 MHz and reaches 800 Ω at 100 MHz, effectively filtering high-frequency noise.
It operates reliably within a temperature range of -25°C to 125°C, suitable for various industrial applications.
This unit features a through-hole mounting configuration with a 2-pin design for easy integration into PCBs.
The maximum DC resistance is 20 mΩ, ensuring minimal power loss in circuits.
It has a height of 10 mm and a diameter of 6 mm, making it compact for various applications.
It is constructed from high-quality ferrite material, ensuring stable performance and longevity.
It complies with IPC/JEDEC J-STD-020D standards, ensuring reliability in electronic applications.
Common use cases include EMI filtering in text processing equipment, radio frequency interference suppression, and protection of sensitive digital devices.
It is bulk packaged, allowing for flexible quantity orders to suit manufacturing needs.
This model is part of the WE-UKW series, designed for effective electromagnetic interference suppression.
This ferrite bead has a pin count of 2, suitable for through-hole applications.
