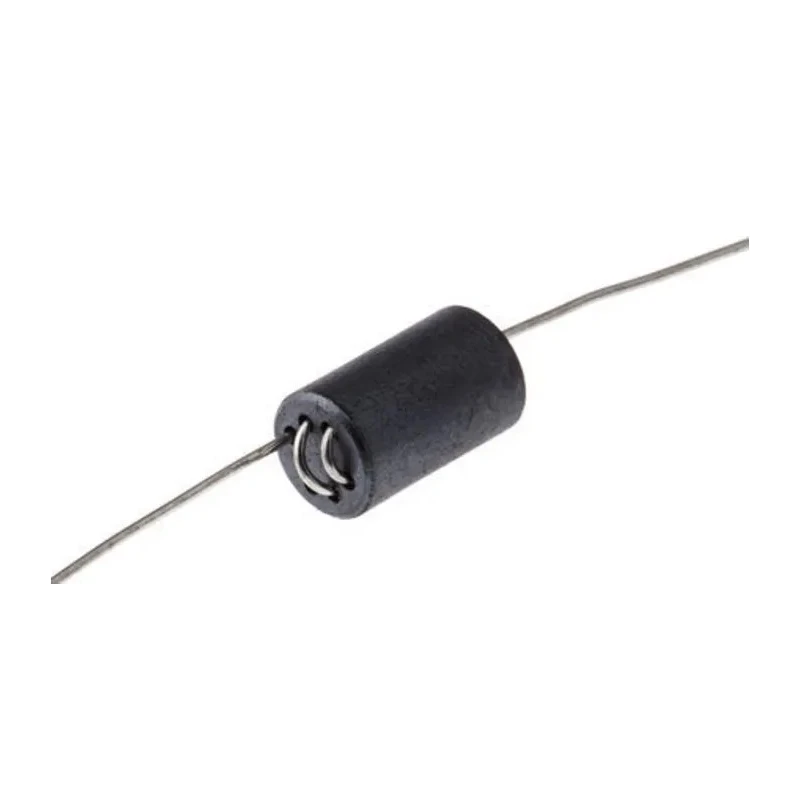

Wurth Elektronik Ferrite Bead 10 mm Axial Through Hole 6-Hole 702 Ω Impedance at 25 MHz 773 Ω Impedance at 100 MHz 7427504

Wurth Elektronik 7427504 ferrite bead is a specialized 10 mm axial through-hole electronic component designed to mitigate high-frequency interference within various electronic circuits, ensuring signal integrity and electromagnetic compatibility.

This ferrite bead features a 6-hole choke design with an impedance of 702 Ω at 25 MHz and 773 Ω at 100 MHz, providing effective suppression of unwanted electrical noise in sensitive equipment.

It supports a continuous current rating of 3A and can safely withstand short peaks up to 5A, making it versatile for different power conditions. Manufactured using high-quality ferrite material, it achieves a low maximum DC resistance of 20mΩ to minimize power losses.

The bead operates reliably across a wide temperature range from -25°C to 125°C, suitable for industrial, communication, and digital electronics environments. With dimensions of 10 mm length, 10 mm height, and 6 mm diameter, it is designed for through-hole mounting using two pins, facilitating easy integration on printed circuit boards.

Packaging is supplied in tape and reel format, optimizing handling for automated assembly processes. Conforms to IPC/JEDEC J-STD-020D standards, ensuring robust quality and compliance requirements. This ferrite bead is ideal for applications involving digital devices, radio frequency interference filtering, and general PCB electromagnetic interference protection.

Explore more Wurth Elektronik passive components and EMI filters for reliable and efficient electronic design solutions at EnvMart’s Electronics Components category. This Ferrite Bead supports a current rating of 3A for continuous operation.

It is designed for suppressing high-frequency interference in electronic circuits. Constructed with ferrite material, it offers a maximum DC resistance of 20mΩ. Operates reliably in temperature ranges from -25°C up to 125°C.

The component has dimensions of 10 mm length, 10 mm height, and 6 mm diameter. It mounts through hole with 2 pins and comes packaged in tape and reel format. Complies with IPC/JEDEC J-STD-020D standards ensuring quality and reliability.

Ideal for applications in digital devices, radio frequency interference, and PCB electronic protection.
