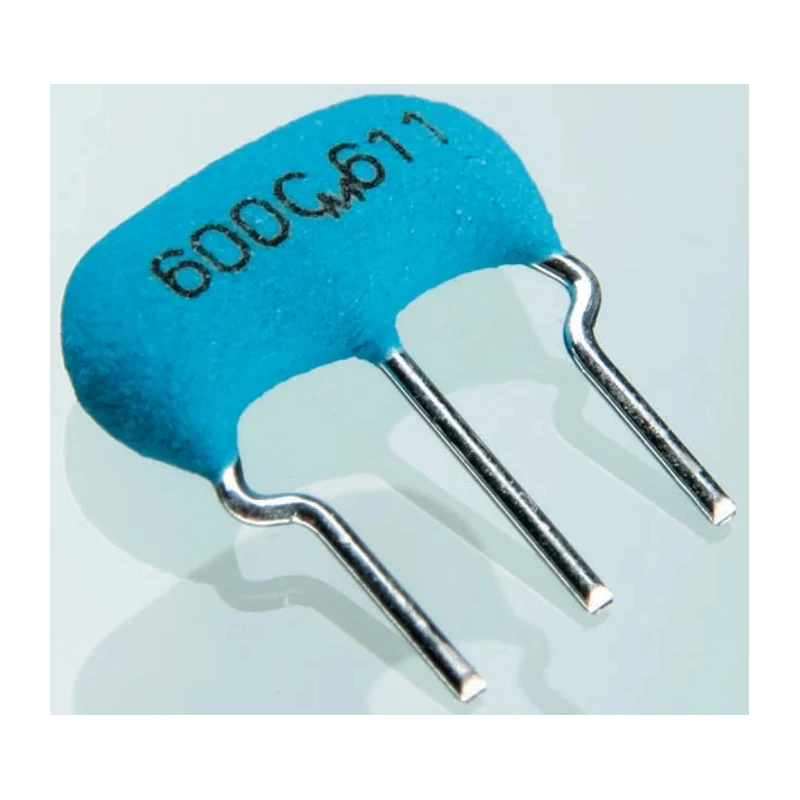

Murata Ceramic Resonator, 4.194 MHz Shear Mode, 15 pF Load Capacitance, 3-Pin Through Hole Bulk Package 6x3x8 CSTLS4M19G53B0
Specifications
| Country of Origin | India |
|---|---|
| Brand | Murata |
| Height | 6mm |
| Length | 8mm |
| Model | CSTLS4M19G53B0 |
| Packaging | Bulk |
| Width | 3mm |
| Mount Type | Through Hole |
| Series | CSTLS |
| Maximum Operating Temperature | 80°C |
| Package Type | Bulk |
| Minimum Operating Temperature | -20°C |
| Standards/Approvals | RoHS, REACH |
| Pin Count | 3 |
| Load Capacitance | 15pF |
| Resonance Frequency | 4.194MHz |
| Resonance Resistance | 30Ω |
| Mode of Oscillation | Shear |
| Ceramic resonator,4.19MHzBrand | Murata |
| RESONATORS CSA4.19MGBrand | Murata |
Key Features
- Operates at a resonance frequency of 4.194 MHz with shear mode oscillation.
- Load capacitance of 15 pF ensures stable frequency characteristics.
- Resonance resistance rated at 30 Ω for efficient operation.
- Package type is bulk with 3 pins configured for through hole mounting.

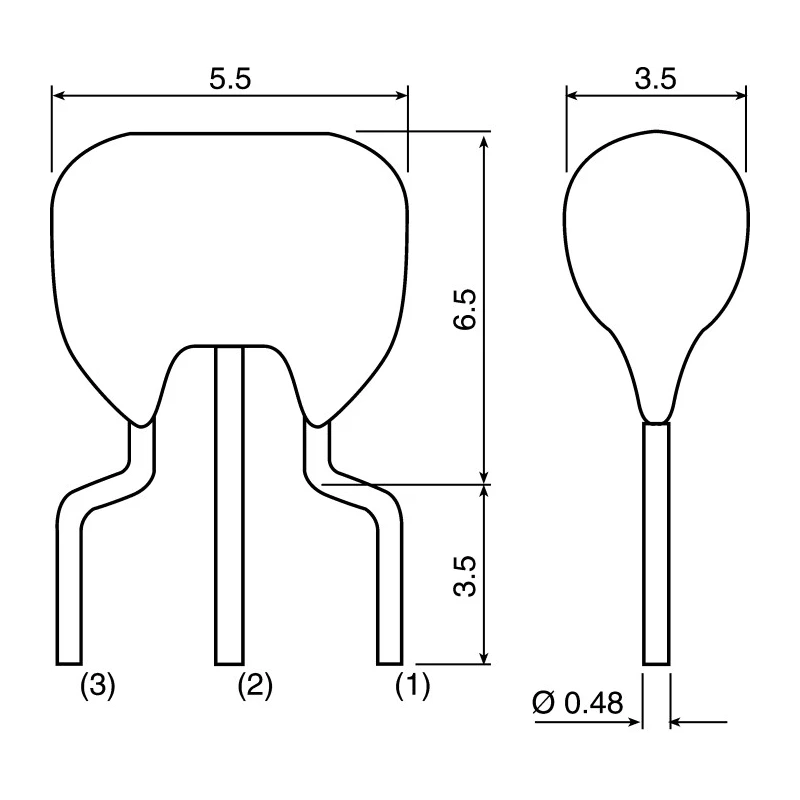

- Compact dimensions with height 6 mm, width 3 mm, and length 8 mm.
- Operates reliably between temperatures of -20°C and 80°C.
- Compliance with RoHS and REACH environmental standards.
- Part of the CSTLS series with consistent quality and performance.
Product Description
Murata CSTLS4M19G53B0 Ceramic Resonator is a high-quality component designed for precision frequency control in electronic circuits. Operating at a resonance frequency of 4.194 MHz with shear mode oscillation, it provides excellent stability due to its 15 pF built-in load capacitance.
This resonator features a resonance resistance of 30 Ω and is packaged as a 3-pin bulk device intended for through hole mounting. Its compact form factor measures 6 mm in height, 3 mm in width, and 8 mm in length, making it suitable for various circuit board designs.
Designed to operate over a wide temperature range from -20°C to 80°C, the CSTLS4M19G53B0 is built to endure diverse environmental conditions in industrial and commercial electronic applications. The product complies with RoHS and REACH standards, ensuring it meets environmental and safety regulations.
Typical applications include use in crystal oscillator circuits for frequency stabilization in communication equipment, automotive electronics, and consumer devices. The Murata CSTLS series offers reliable performance for demanding use cases where frequency precision and stability are critical.
Operates at 4.194 MHz resonance frequency with shear mode. 15 pF load capacitance built-in for frequency stability. Resonance resistance of 30 Ω for efficient signal maintenance. 3-pin through hole bulk packaging for ease of installation.
Compact dimensions suitable for PCB integration. Wide operating temperature range from -20°C to 80°C. Complies with RoHS and REACH environmental standards. Ideal for industrial, automotive, and consumer electronic applications.
Explore the Murata brand selection for advanced Ceramic Resonators on EnvMart, offering quality and performance tailored for professional electronics design and manufacturing.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It operates at a resonance frequency of 4.194 MHz with shear mode oscillation.
This model has a built-in load capacitance of 15 pF, which ensures stable frequency characteristics.
The resonance resistance is rated at 30 Ω, allowing for efficient signal maintenance.
It has compact dimensions of 6 mm in height, 3 mm in width, and 8 mm in length.
It operates reliably between temperatures of -20°C and 80°C.
The CSTLS4M19G53B0 is packaged in bulk with a 3-pin configuration for through hole mounting.
It complies with RoHS and REACH environmental standards, ensuring it meets safety regulations.
Typical applications include use in crystal oscillator circuits for frequency stabilization in communication equipment, automotive electronics, and consumer devices.
This model features a pin count of 3, designed for through hole mounting.
It is part of the CSTLS series, known for consistent quality and performance.
The country of origin for this model is India.
