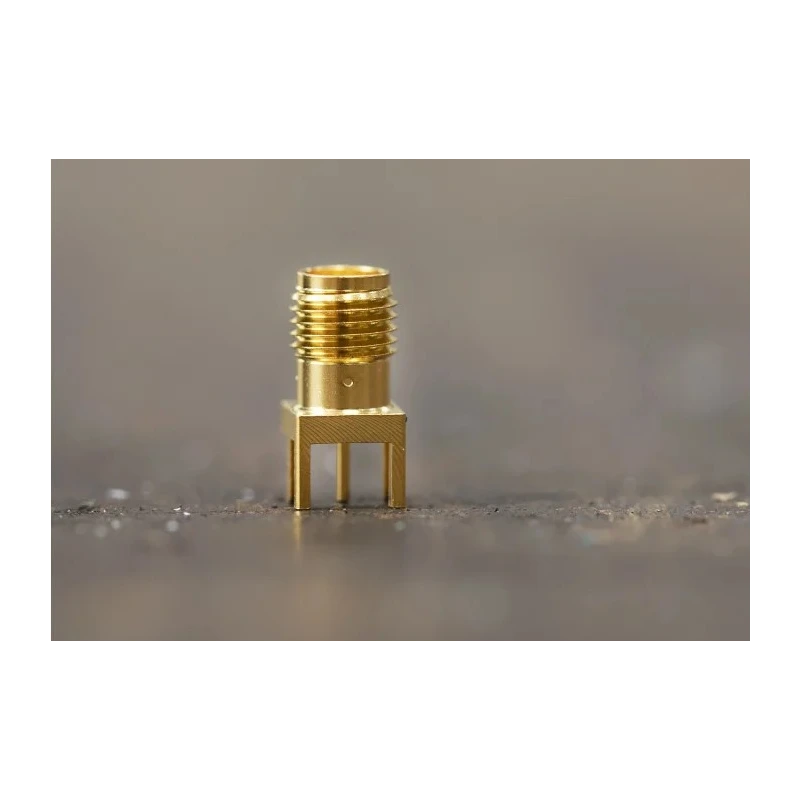

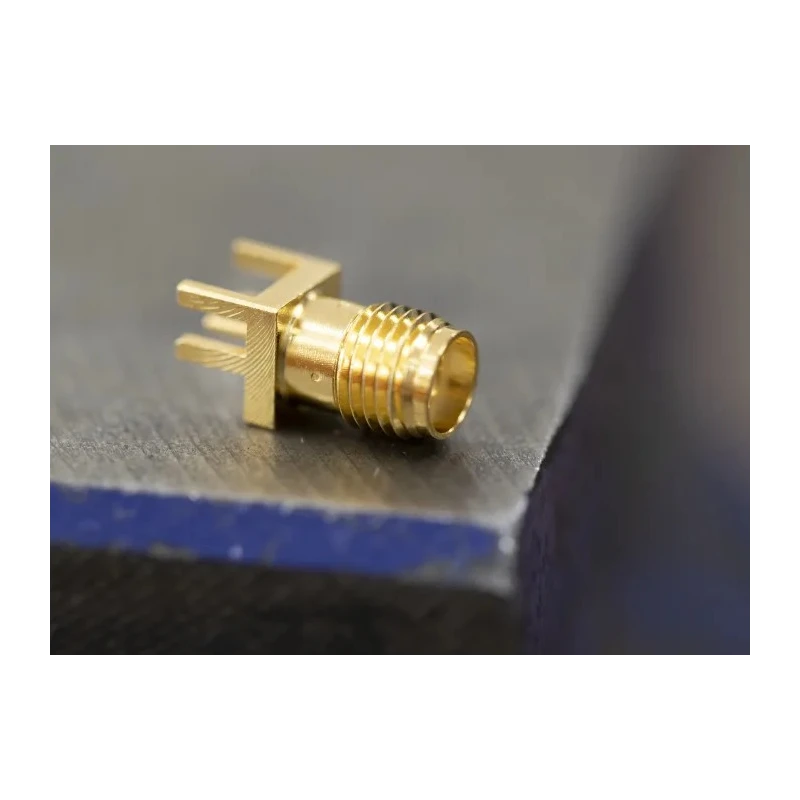

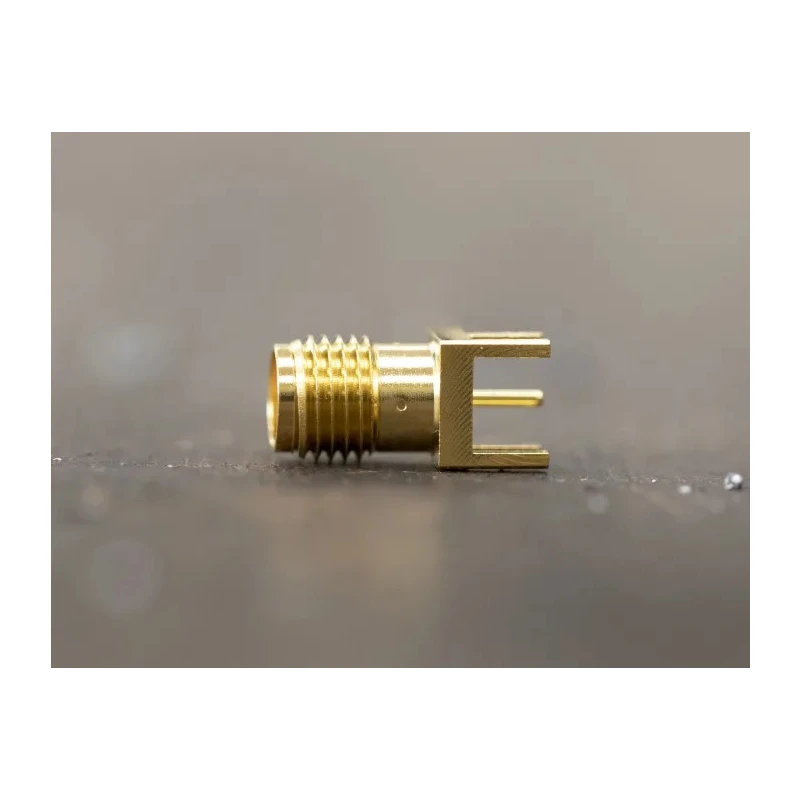

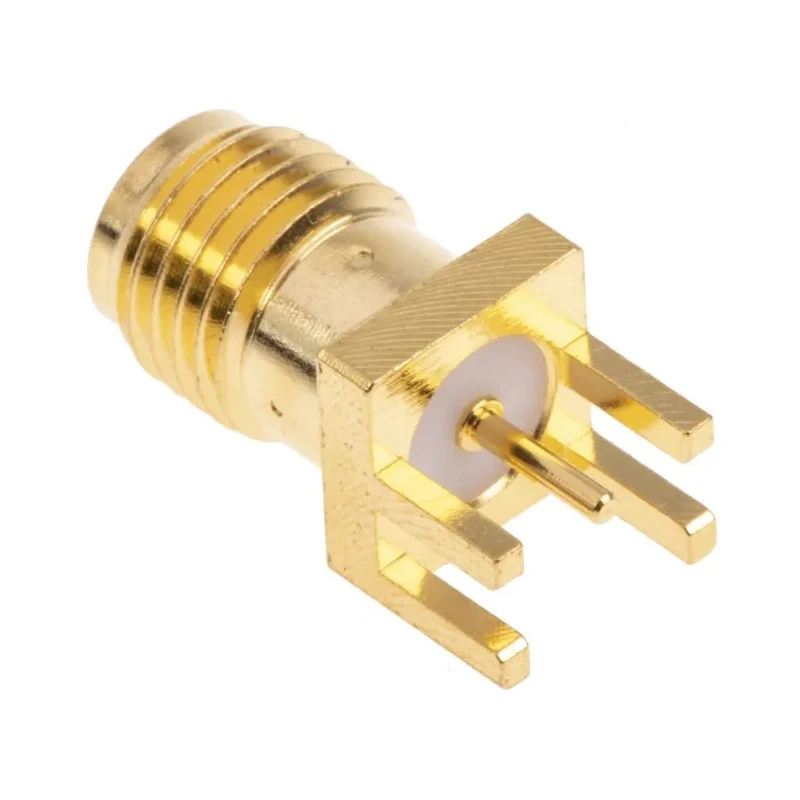

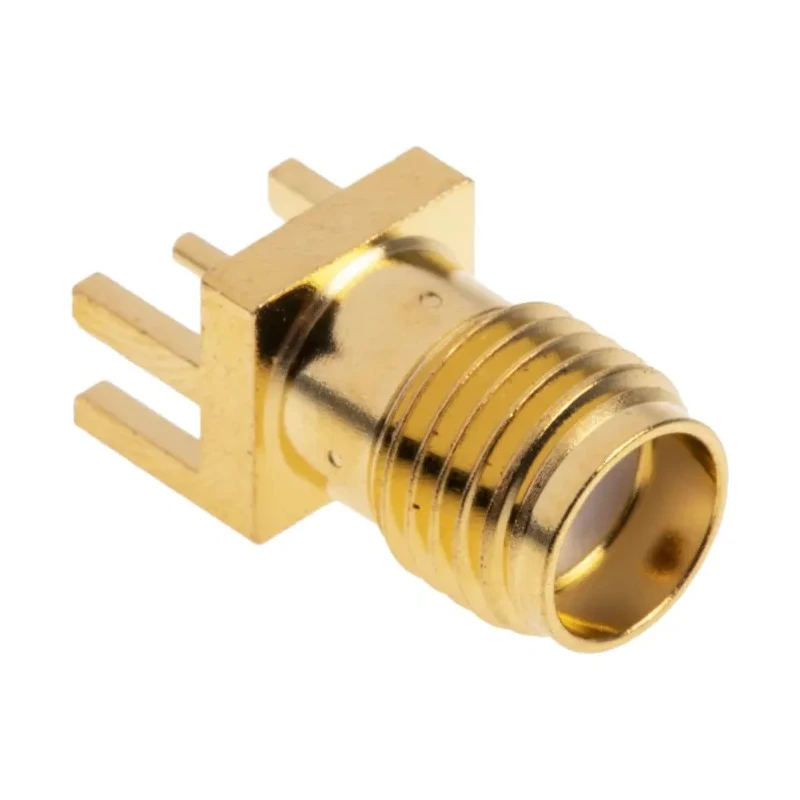

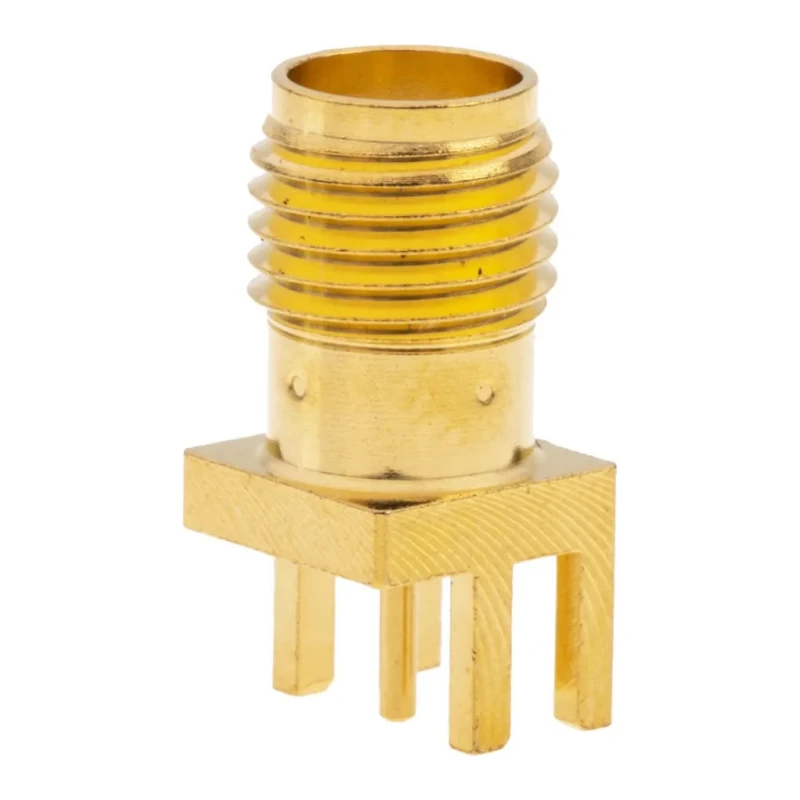

RS PRO Coaxial Connector Edge Female SMA, 50 Ω, Straight Body Solder 526-5785
Specifications
| Country of Origin | Taiwan |
|---|---|
| Size | Subminiature |
| Brand | RS PRO |
| Orientation | Straight |
| Model | 526-5785 |
| Mount Type | Edge |
| Operating Frequency | 18GHz |
| Contact Material | Beryllium Copper |
| Series | RS PRO |
| Termination Type | Solder |
| Polarity | Normal |
| Impedance | 50Ω |
| Contact Plating | Gold |
| Contact Gender | Female |
| Connector Gender | Female |
| Coaxial Connector Type | SMA |
| Body Plating | Gold |
| RS PRO Coaxial Connector Edge Female SMA, 50 Ω, Straight Body SolderBrand | RS PRO |
| Midwest Microwave International Ltd, jack Through Hole, Solder TerminationBrand | NEUTRAL |
Key Features
- The connector features a gold plated body and beryllium copper contacts for excellent signal integrity.
- It is designed for edge mount on PCBs with a subminiature size and straight orientation.
- It supports a 50 Ohm impedance suitable for high-frequency applications.
- The connector uses a robust solder termination ensuring solid electrical and mechanical connections.
- Ideal for board-to-board use in Wi-Fi antenna systems and other RF applications.
Product Description
RS PRO 526-5785 is a high-performance coaxial connector designed for edge mounting applications on printed circuit boards. This SMA female connector has a 50 Ω impedance and operates effectively up to 18 GHz, making it suitable for demanding RF communication applications including Wi-Fi antenna systems.
The connector features a straight body design with gold plating on the brass body and gold-plated beryllium copper contacts. This plating combination offers excellent electrical conductivity and corrosion resistance, assuring long-term signal quality.
Its subminiature size and edge mount type enable robust and efficient PCB integration. The connector is designed with a Teflon insulator and solder termination type, providing reliable mechanical fixation and electrical performance. It is compatible with SMA plugs and coaxial cable assemblies that require secure screw-on connections.
The RS PRO 526-5785 is part of the trusted RS PRO series, rigorously tested to meet industry demands but not certified to specific approvals. It is manufactured in Taiwan, Province Of China, guaranteeing consistent build quality.
Typical industrial applications include electronic manufacturing, telecommunications, laboratory instrumentation, and commercial RF systems where reliable high-frequency connectivity is critical.
The connector offers a gold plated body and contact for superior conductivity. It has a subminiature, straight body configuration suitable for edge PCB mounting. Designed specifically for 50 Ω impedance RF applications up to 18 GHz.
The termination method is solder, ensuring a sturdy electrical junction. Ideal for use in Wi-Fi antenna systems and other RF communication equipment. Precision-engineered beryllium copper contact material enhances signal quality.
Explore more in the RS PRO range of Coaxial Connectors for electronic and electrical projects at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The RS PRO coaxial connector has a 50 Ω impedance, making it suitable for high-frequency applications.
This connector operates effectively up to 18 GHz, suitable for demanding RF communication applications.
It uses a solder termination type, ensuring a sturdy electrical junction for reliable performance.
The connector features a gold-plated brass body and gold-plated beryllium copper contacts for excellent conductivity and corrosion resistance.
It is designed for edge mounting on printed circuit boards, allowing for efficient integration in electronic applications.
This model is classified as subminiature, facilitating compact installations on PCBs.
Yes, it is compatible with SMA plugs and coaxial cable assemblies that require secure screw-on connections.
The connector features a straight body orientation, suitable for various installation scenarios.
It is commonly used in electronic manufacturing, telecommunications, laboratory instrumentation, and commercial RF systems.
The RS PRO coaxial connector is manufactured in Taiwan, Province Of China.
The connector has a female contact gender, designed for use in various RF applications.
The contacts are gold-plated, enhancing electrical conductivity and ensuring long-term signal quality.
