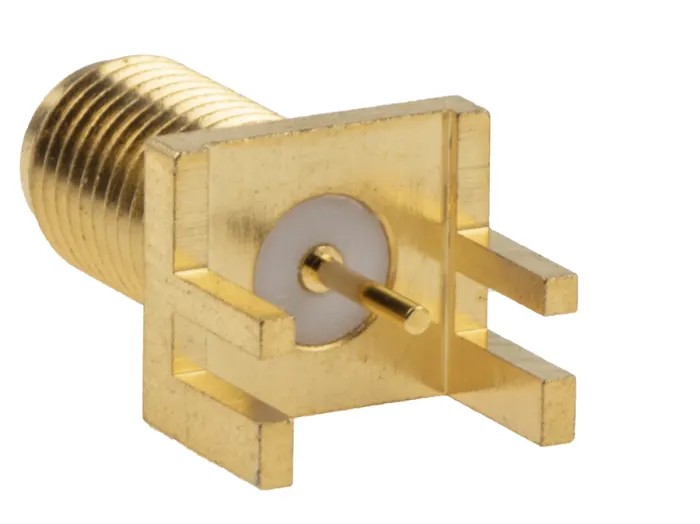

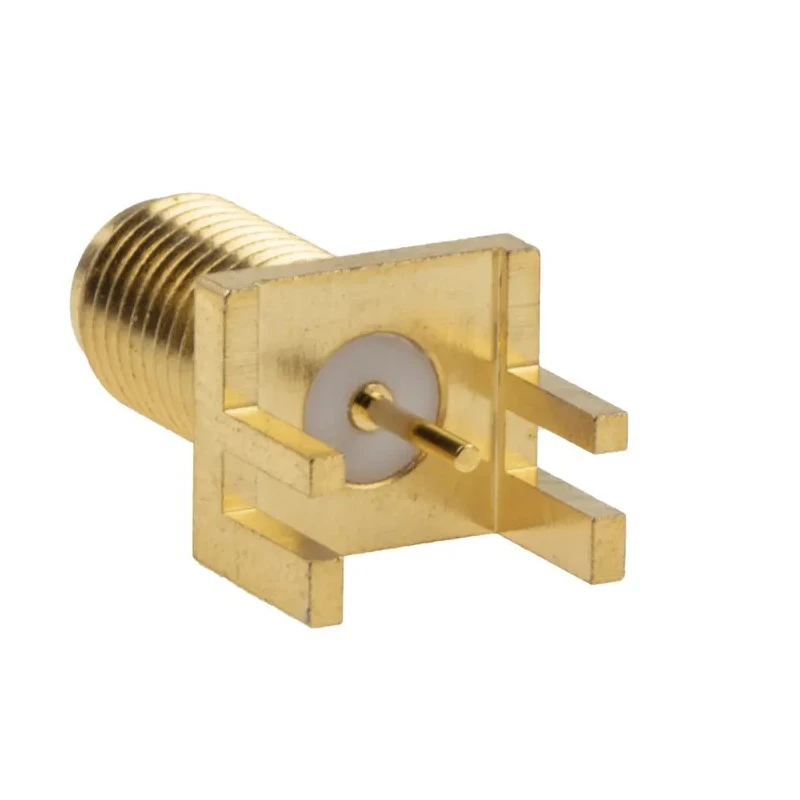

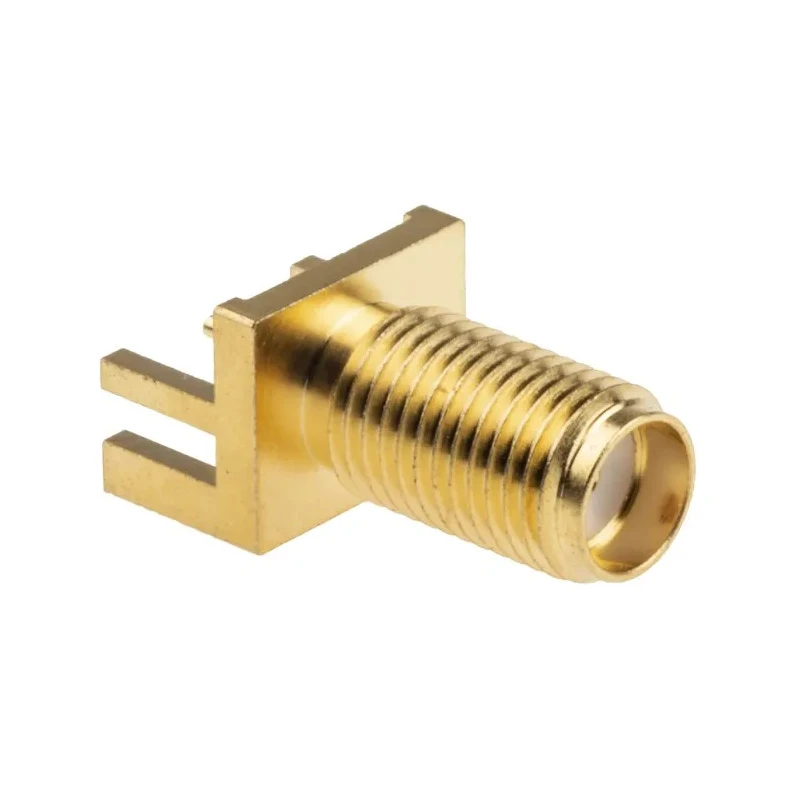

RS PRO Coaxial Connector Edge Female SMA, 50 Ω, Straight Body Solder 526-5779
Specifications
| Country of Origin | Taiwan |
|---|---|
| Size | Subminiature |
| Brand | RS PRO |
| Orientation | Straight |
| Model | 526-5779 |
| Mount Type | Edge |
| Operating Frequency | 18GHz |
| Contact Material | Beryllium Copper |
| Series | RS PRO |
| Termination Type | Solder |
| Cable Type | Coaxial |
| Polarity | Normal |
| Impedance | 50Ω |
| Contact Plating | Gold |
| Contact Gender | Female |
| Connector Gender | Female |
| Coaxial Connector Type | SMA |
| Body Plating | Gold |
| RS PRO Coaxial Connector Edge Female SMA, 50 Ω, Straight Body SolderBrand | RS PRO |
| RS PRO, jack Panel Mount, 50Ω, Crimp Termination, Straight BodyBrand | RS PRO |
Key Features
- Features edge mount design for efficient PCB installation.
- Supports operating frequency up to 18 GHz for high-performance signal transmission.
- Constructed with gold plated beryllium copper contacts for durability and corrosion resistance.
- Includes nut and washer for secure fixing on panels or equipment housings.
- Ideal for Wi-Fi antenna systems and board-to-board connection applications.
- Teflon insulator ensures electrical isolation and stability.
- Provides secure screw-on connection with SMA plugs and coaxial cable assemblies.
- Subminiature size suited for compact electronic equipment.
Product Description
RS PRO 526-5779 Coaxial Connector Edge Female SMA, 50 Ω, Straight Body Solder is a rugged and reliable RF coaxial connector designed for use in industrial, electronic, and communication systems. This connector is engineered by RS PRO to deliver consistent performance in high-frequency environments up to 18 GHz.

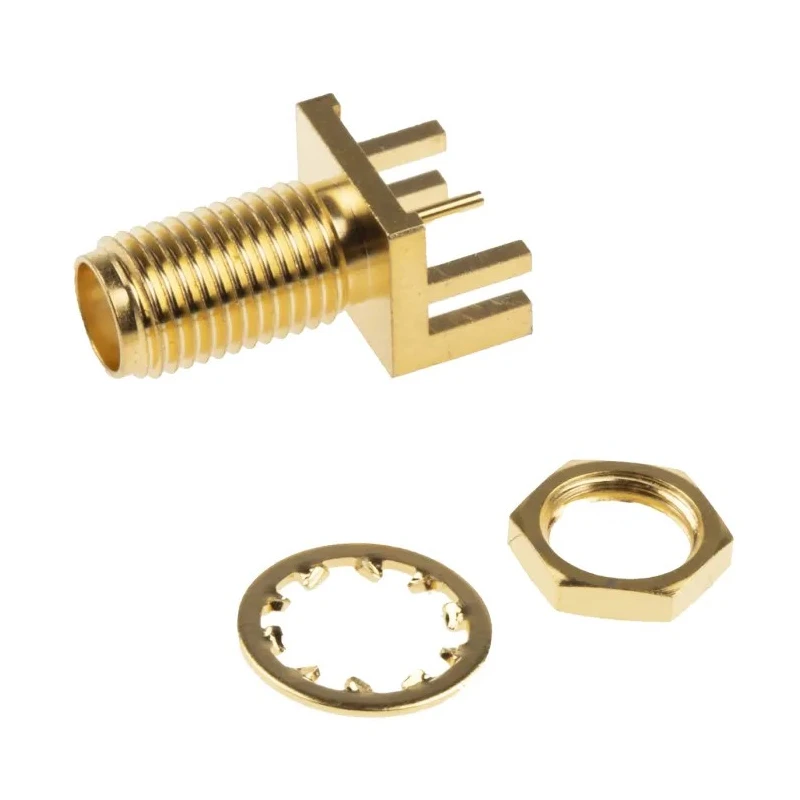

The edge mount design facilitates easy and secure mounting on the edge of printed circuit boards, making it suitable for compact and efficient board-to-board connection applications. It is supplied with a nut and washer to ensure stable fixing to panels or equipment housings.
Constructed from premium materials, this connector features gold plated beryllium copper contacts and a gold plated body, which provide excellent conductivity and resistance to corrosion. The use of a Teflon insulator offers reliable electrical insulation even under demanding operating conditions.
Designed with a straight orientation and a female socket connector gender, it supports 50 Ω impedance, the industry standard for RF signal integrity. The SMA Coaxial Connector type ensures compatibility with a wide range of coaxial cable assemblies and SMA plugs, providing a secure screw-on action connection.
This connector is ideal for RF applications such as Wi-Fi antenna systems, telemetry, communication equipment, and precision electronic instrumentation. Its subminiature size enables integration into space-constrained designs while maintaining high performance.
Edge mounting for PCB installation. Gold plated body and contacts for durability. Supports frequencies up to 18 GHz. Teflon insulator for electrical stability. Includes nut and washer for fixing. 50 Ω impedance for RF signal integrity.
Female SMA connector, straight orientation. Subminiature size suitable for compact equipment.
RS PRO products are known for their rigorous quality control and industry standards compliance, offering engineers reliable solutions across electronic and industrial markets. Explore the comprehensive RS PRO connector range for compatible solutions and enhanced system performance.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports an operating frequency of up to 18 GHz, making it suitable for high-performance signal transmission.
It has an edge mount design, which facilitates easy and secure installation on the edge of printed circuit boards (PCBs).
The contacts are constructed from gold plated beryllium copper, providing excellent conductivity and resistance to corrosion.
It has a nominal impedance of 50 Ω, which is standard for RF signal integrity.
This model utilizes a solder termination type for secure connections.
The connector is supplied with a nut and washer for secure fixing to panels or equipment housings.
This connector features a straight orientation, designed for easy integration into various applications.
It is classified as a subminiature size, making it suitable for compact electronic equipment.
It is ideal for RF applications such as Wi-Fi antenna systems, telemetry, communication equipment, and precision electronic instrumentation.
The connector features a Teflon insulator, which ensures reliable electrical insulation and stability.
This model has a female connector gender, compatible with SMA plugs and coaxial cable assemblies.
The coaxial connector is manufactured in Taiwan.
