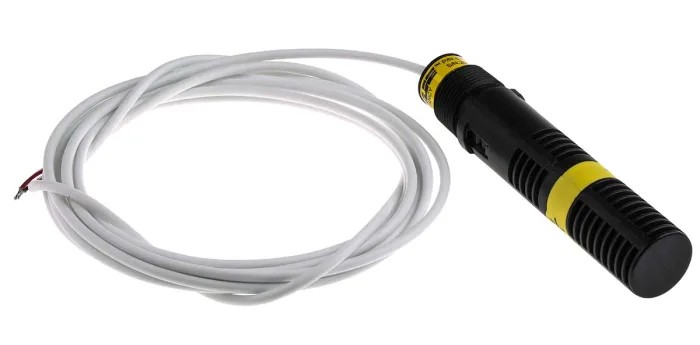

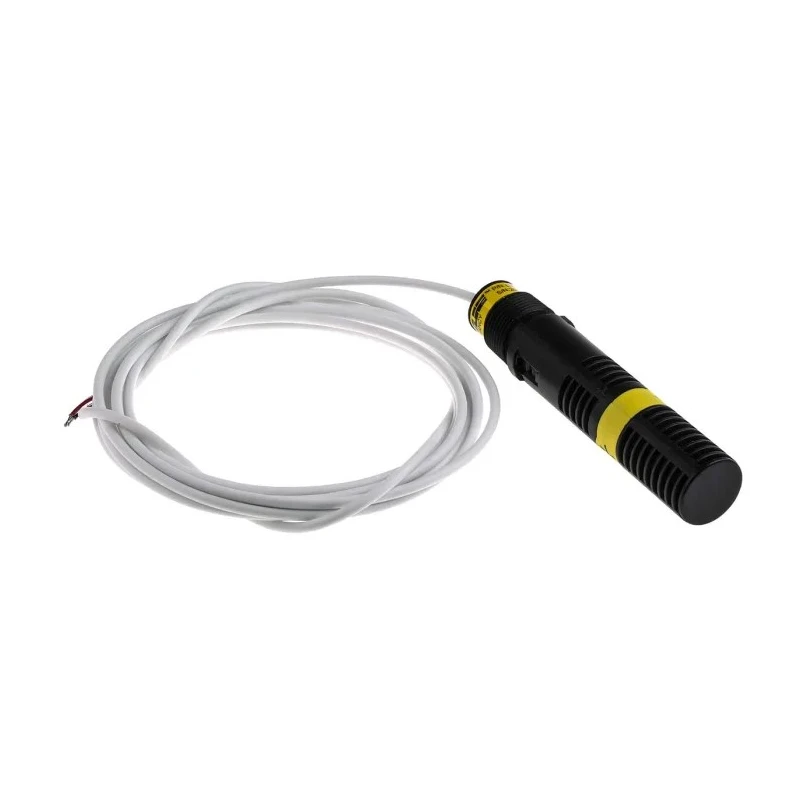

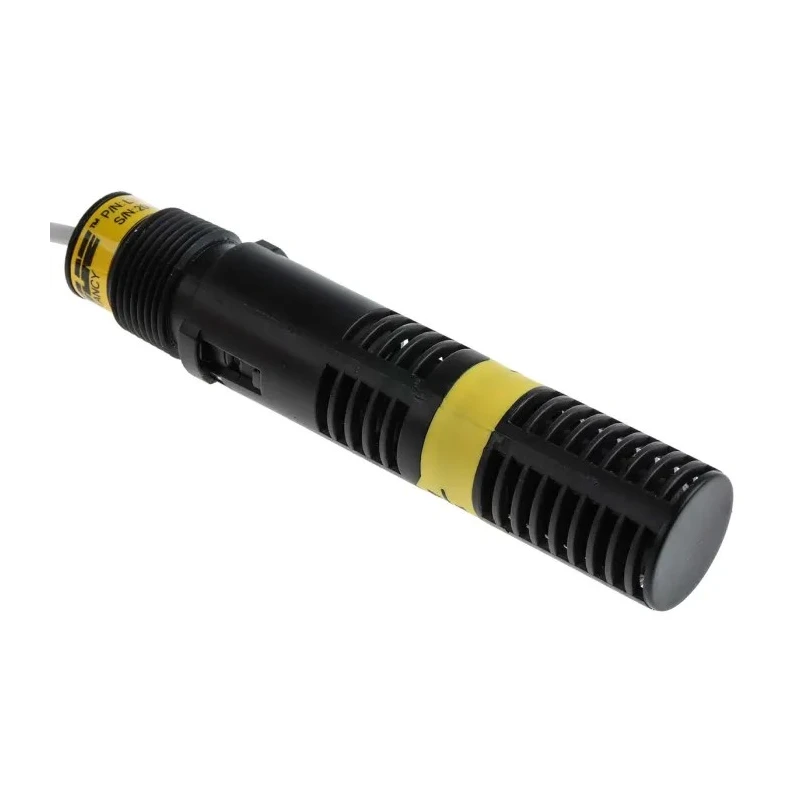

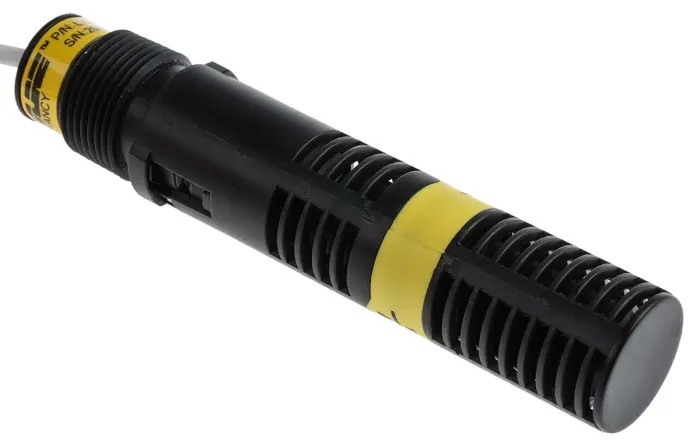

Flowline Switch-Tek Series Buoyancy Level Switch Float Switch Vertical Polypropylene Housing LV10-1301

Flowline LV10-1301 Switch-Tek Series buoyancy level switch is a vertical Float Switch manufactured with a polypropylene housing designed for precise liquid level detection in clean water and chemical solutions.

This device offers high reliability through its baffle body and dynamically stabilized float, which significantly reduce relay chatter caused by turbulence, ensuring sustained operational integrity.

The sensor includes a protective cage to shield it from floating debris, enhancing durability in various industrial applications such as pump automation and tank level management.

Equipped with a 15VA reed switch output, the switch interfaces simply with PLCs, relay controllers, and Flowline's own suite of control devices and fitting accessories, facilitating remote monitoring and control.

Engineered for tough operating parameters, it functions within a temperature range of -40°C to 90°C and withstands pressures up to 2 bar, making it suitable for demanding industrial, laboratory, water treatment, and commercial uses.

The standard 3/4 inch NPT process mount allows for straightforward installation in vertical orientations, providing a robust and reliable solution for level sensing requirements requiring chemical resistance and mechanical stability.

The baffle body and dynamically stabilized float minimize relay chatter for reliable liquid level detection. Cage protects the sensor against floating debris to maintain performance. Compatible with a variety of Flowline controllers, alarms, and fitting accessories for seamless integration.

Process mount 3/4 inch NPT enables easy vertical installation within tanks. Robust polypropylene housing suitable for chemical and potable water applications. Effective operating temperature range from -40°C to 90°C supports diverse environments.

Maximum pressure rating of 2 bar ensures safe operation under moderate pressure. Designed for pump automation and tank level control in industrial and water treatment sectors.

This Flowline level switch is CE certified and complies with ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 standards, reinforcing its quality and reliability in sensitive and industrial settings.
