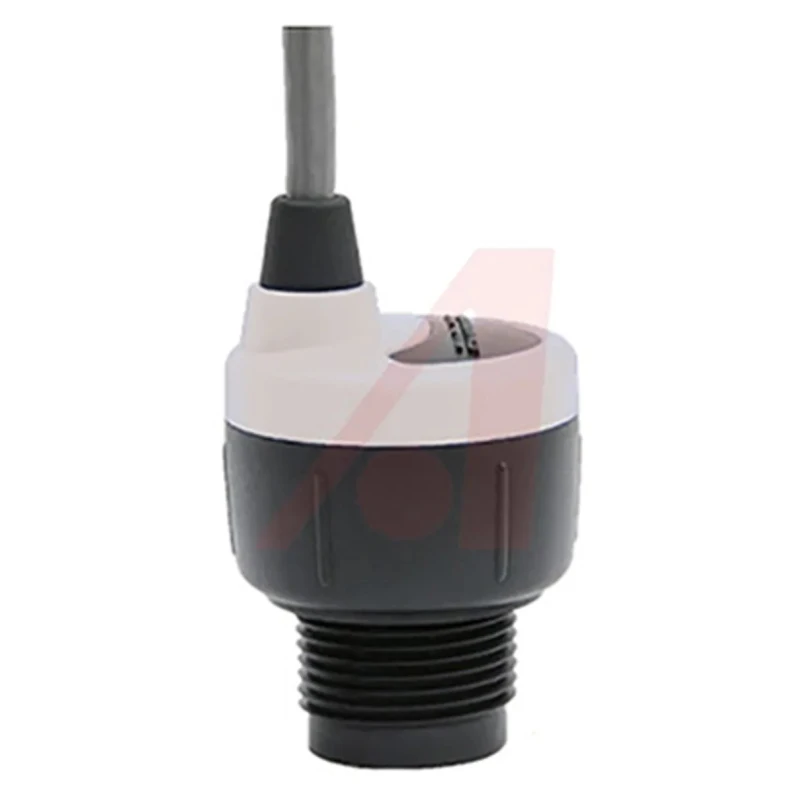

Flowline EchoPod Series Ultrasonic Level Transmitter Sensor, Vertical Mount, Viton Gasket, Polycarbonate Housing DL10

Flowline DL10 Series Ultrasonic Level Transmitter Sensor is designed for continuous, reliable level measurement using non-contact ultrasonic technology. It is ideal for applications involving corrosive, sticky, or dirty liquids where contact sensors would be impractical or subject to fouling. The vertical mount and narrow beam width allow optimal performance in small tanks, maintaining accuracy even in harsh environments.

The robust polycarbonate housing combined with a Viton gasket provides excellent chemical resistance, supporting long-term durability. The device includes automatic temperature compensation to ensure accurate level readings despite temperature fluctuations. With an operating range from -35°C to 60°C, it suits diverse industrial conditions.

The sensor supports a maximum DC voltage of 24V and a maximum current of 20mA, and can withstand pressure up to 30 psi, making it suitable for many industrial processes. Its 1.2 meter cable length offers versatile mounting options.

Designed to meet industry standards including CE, cFMus, and RoHS compliance, this ultrasonic sensor integrates easily into existing Flowline product families such as DataLoop, DataView, DataPoint, and Commander.

Non-contact ultrasonic sensing method ensures no contamination from media. Vertical mount design with narrow 2 inch beam width for precise measurement. Durable polycarbonate housing with Viton gasket for chemical resistance.

Automatic temperature compensation improves accuracy. Suitable for small tanks due to 2 inch short dead band. Cable length of 1.2 meters for flexible installation. Operating temperature range from -35°C to 60°C. Max DC voltage 24V with maximum current of 20mA.

Pressure rating up to 30 psi. Complies with CE, cFMus, and RoHS standards.

This ultrasonic level transmitter is broadly applicable in industrial automation, water treatment, chemical processing, and other sectors requiring accurate liquid level monitoring. Its rugged design and ease of configuration via Flowline’s Free WebCal Software and USB Adapter make it a dependable solution for reliable level measurement.
