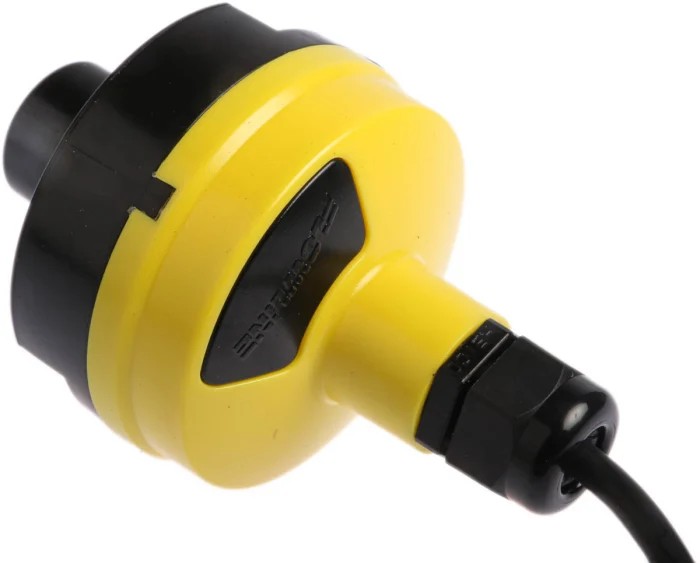

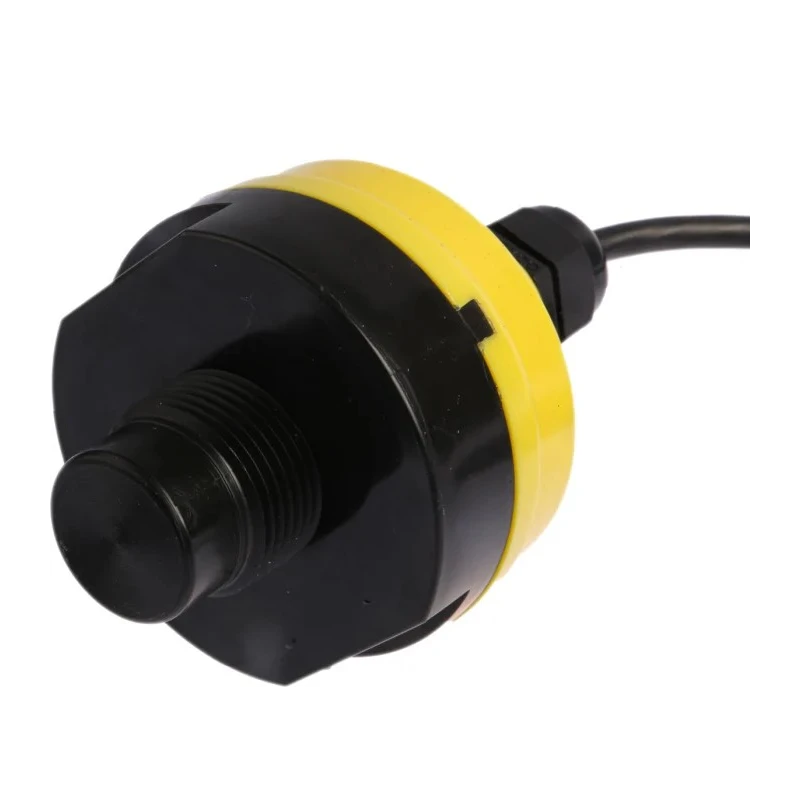

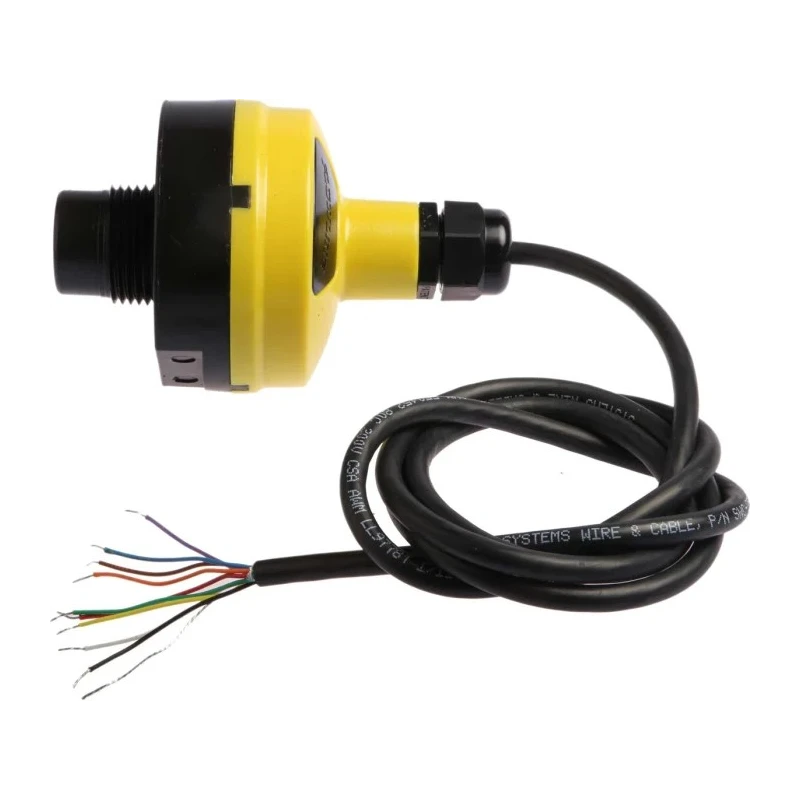

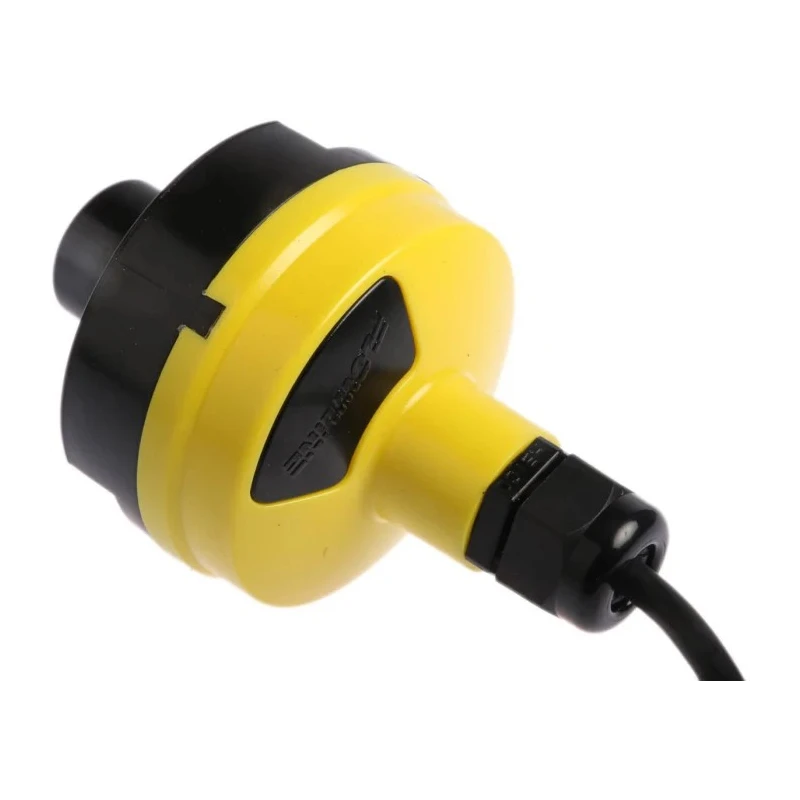

Flowline EchoPod Series Ultrasonic Level Transmitter Vertical Mount Polycarbonate Housing DL24-01

Flowline DL24-01 EchoPod Series Ultrasonic Level Transmitter is a vertically mounted level sensor designed for accurate liquid level measurement in industrial and process environments. The device features a robust polycarbonate housing and fluorelastomer gasket, making it resistant to corrosive and harsh fluids. With a measurement range of up to 3.0 meters (9.8 feet), it provides continuous level monitoring suitable for small tanks and process applications.

This ultrasonic level transmitter offers automatic temperature compensation, allowing high precision even in fluctuating thermal conditions. The sensor includes four programmable relays with selectable hysteresis and fail-safe logic to control pumps and valves effectively, reducing the need for external control hardware and lowering operational costs.

The device supports a maximum DC voltage of 24V and a maximum current of 20mA, operating reliably within temperature ranges from -35°C to 60°C and withstands pressures up to 2 bar. Its USB interface adapter facilitates easy configuration through Flowline's free webcal software, enhancing setup efficiency.

Its compact polycarbonate enclosure and PVDF transducer construction ensure suitability for corrosive liquids and sticky or dirty environments commonly encountered in tanks, sumps, IBCs, skid systems, and process tanks. The product is cFMus approved and compatible with various Flowline product ranges including DataLoop, DataView, DataPoint, and Commander.

Continuous level measurement range up to 3.0 meters (9.8 feet). Durable polycarbonate housing with fluorelastomer gasket material. Automatic temperature compensation for measurement accuracy. Four programmable relays for switching pumps and valves with fail-safe logic.

USB interface for easy programming via free webcal software. Maximum operating temperature of 60°C and minimum of -35°C. Maximum pressure rating of 2 bar suitable for various tank applications. Non-contact ultrasonic sensing ideal for corrosive, sticky, or dirty liquids.

Manufactured in the United States with compliance to relevant standards.

This Flowline EchoPod ultrasonic level transmitter fits diverse industrial, manufacturing, water treatment, and chemical processing applications requiring reliable liquid level monitoring and control. Its vertical mount and robust construction make it an optimal choice for harsh environment sensor needs.
