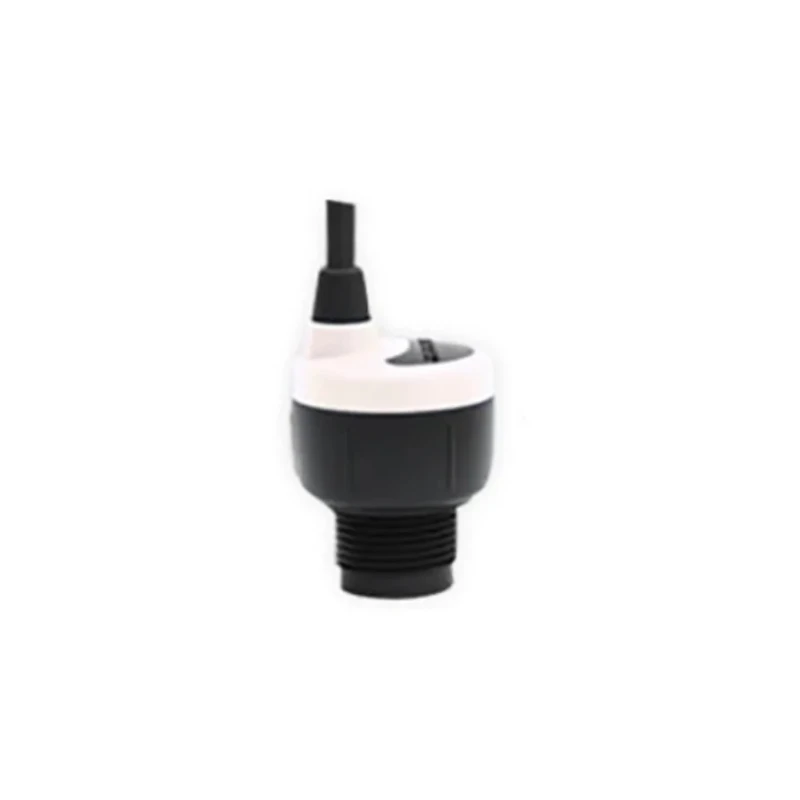

Flowline EchoPod Series Ultrasonic Level Transmitter Ultrasonic Level Sensor Vertical Mount Polycarbonate Housing DL10-11

Free Delivery in India | Lowest Global Shipping Charges

Flowline EchoPod Series Ultrasonic Level Transmitter Ultrasonic Level Sensor Vertical Mount Polycarbonate Housing DL10-11

Name: Flowline EchoPod Series Ultrasonic Level Transmitter Ultrasonic Level Sensor Vertical Mount Polycarbonate Housing DL10-11
Brand: FLOWLINE
SKU: 135693
Price: 740.07 USD
Availability: InStock



Category Level Sensors Brand FLOWLINE Condition New

Specifications

Country of Origin	India
Brand	Flowline
Model	DL10-11
Cable Length	1.2m
Mount Type	Vertical
Housing Material	Polycarbonate
Series	EchoPod
Maximum Operating Temperature	60°C
Maximum Pressure	30psi
Minimum Operating Temperature	-35°C
Interfaces	USB adapter with fob
Maximum Current	20mA
Device Type	Ultrasonic Level Transmitter
Maximum dc Voltage	24V dc
Standards/Approvals	CE, cFMus, RoHS Compliant
ANSI/ESD S20.20	2014
BS EN 61340-5-1	2007
Gasket Material	Viton
Process mount	1in NPT (1in G)

Key Features

Provides continuous level measurement up to 1.25 meters.
Operates at 24 V DC with 4 mA to 20 mA output current.
Features a narrow 2-inch beam width optimized for small tanks.
Constructed with PVDF transducer and Viton gasket materials.
Includes USB adapter with fob for configuration via WebCal software.
Equipped with 1-inch NPT process mount compatible with Flowline systems.
Suitable for corrosive, sticky, or dirty liquid applications.
Operates in temperature range from -35°C to 60°C.

Product Description

Flowline DL10-11 EchoPod Series Ultrasonic Level Transmitter is a vertical mount ultrasonic level sensor featuring a durable polycarbonate housing and Viton gasket. It provides precise non-contact liquid level measurement suitable for corrosive, sticky, or contaminated fluids. This sensor supports continuous level monitoring up to 1.25 meters (49.2 inches) with an output current ranging from 4 mA to 20 mA and operates at 24 V DC supply voltage.

The sensor's narrow 2-inch beam width and short 2-inch dead band optimize performance in small tank environments. The PVDF transducer material enhances chemical resistance, and the Viton gasket ensures sealing against harsh environments. Configuration is simplified through a USB adapter and the free WebCal software, making integration straightforward.

With a 1-inch NPT (1-inch G) process mount, the DL10-11 sensor integrates seamlessly into various industrial Flowline systems, including DataLoop, DataView, DataPoint, and Commander. It is designed for use in tanks, skids, intermediate bulk containers (IBCs), sumps, and other process tank level measurement applications.

The device has an operating temperature range of -35°C to 60°C and can withstand pressures up to 30 psi, with a maximum current draw of 20 mA. This product meets industry standards and certifications such as CE, cFMus, and RoHS, ensuring reliable and safe operation in industrial, laboratory, water treatment, and manufacturing environments.

Provides continuous liquid level measurement with a 1.25-meter range. Non-contact ultrasonic sensing ideal for corrosive and dirty fluids. Compact design with narrow beam width for small tanks. Configurable output via USB adapter and free software.

Polycarbonate housing with Viton gasket for chemical resistance. Wide temperature range and pressure tolerance. Compatible with Flowline's industrial control systems. Certified for safety and environmental compliance. Explore additional Flowline sensors and level measurement instrumentation at EnvMart for your industrial automation and control needs.
