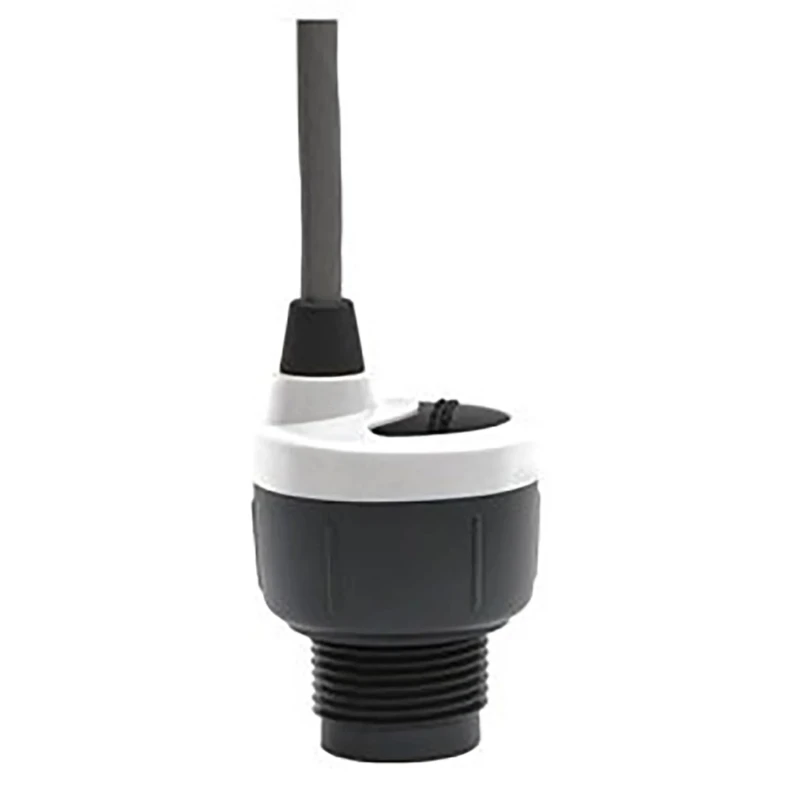

Flowline EchoPod Series Ultrasonic Level Sensor Vertical Mount DL10-01, ABS Housing, 1.2m Cable, 24V DC, 2bar Max
Specifications
| Country of Origin | United States |
|---|---|
| Brand | Flowline |
| Model | DL10 |
| Cable Length | 1.2m |
| Mount Type | Vertical |
| Housing Material | ABS, Polycarbonate |
| Series | EchoPod |
| Maximum Operating Temperature | 60°C |
| Maximum Pressure | 2bar |
| Minimum Operating Temperature | -35°C |
| Interfaces | USB Adapter |
| Maximum Current | 20mA |
| Device Type | Ultrasonic Level Transmitter |
| Maximum dc Voltage | 24V dc |
| Standards/Approvals | cFMus |
| Gasket Material | Fluorelastomer |
Key Features
- Vertical mount sensor designed for small tank applications.
- Robust ABS and polycarbonate housing ensures durability in corrosive environments.
- Fluorelastomer gasket provides chemical resistance.
- Compatible with Flowline WebCal software via USB adapter for quick configuration.
- Operates at 24V DC with a maximum current of 20mA.
- Supports continuous level measurement up to 49.2 inches.
- Automatic temperature compensation enhances measurement accuracy.
- Narrow 2-inch beam width and short dead band.
Product Description
Flowline DL10-01 EchoPod Series ultrasonic level sensor is engineered for accurate liquid level measurements in demanding industrial and process applications. Designed with a vertical mount and rugged housing constructed from ABS and polycarbonate, this sensor delivers reliable, non-contact continuous measurement for tanks containing aggressive, sticky, or dirty liquids.
Its fluorelastomer gasket ensures chemical compatibility, while the PVDF transducer further improves performance in corrosive environments. With a cable length of 1.2 meters, the EchoPod DL10-01 simplifies installation and integration.
Vertical mounting suits compact tanks and vessels. Continuous, non-contact measurement up to 49.2 inches. Optimized for small tanks with a narrow 2-inch beam width and short dead band. Automatic temperature compensation guarantees stable readings.
ABS and polycarbonate body withstands demanding industrial conditions. Operates at 24V DC with maximum pressure tolerance of 2 bar. Maximum current draw is 20mA, supporting energy-efficient operation. Compatible with Flowline's WebCal software and USB adapter for fast setup.
Hazardous area certification is not applicable. Used across water treatment, chemical processing, food & beverage, and general industrial monitoring.
The Flowline DL10-01 EchoPod is cFMus approved and manufactured in the United States, assuring quality and reliability for industrial users. Typical applications include continuous liquid level monitoring in tanks, reactors, and reservoirs where contactless measurement is essential for protecting sensitive media and equipment.
Explore more industrial sensors from Flowline and browse Level Sensor solutions at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This ultrasonic level sensor supports continuous level measurement up to 49.2 inches.
It operates at a maximum DC voltage of 24V.
The housing is constructed from ABS and polycarbonate, providing durability in various environments.
The DL10-01 has a maximum pressure tolerance of 2 bar.
It features automatic temperature compensation to enhance measurement accuracy across varying temperatures.
This model is designed for vertical mounting, making it suitable for compact tanks and vessels.
The sensor comes with a cable length of 1.2 meters, facilitating easier installation.
The maximum current draw is 20mA, supporting energy-efficient operation.
Yes, it is compatible with Flowline's WebCal software via a USB adapter for quick configuration.
This model is cFMus approved, indicating compliance with certain safety standards.
It is used for continuous liquid level monitoring in tanks, reactors, and reservoirs, particularly where contactless measurement is essential.
The minimum operating temperature is -35°C, allowing it to function in a wide range of conditions.
