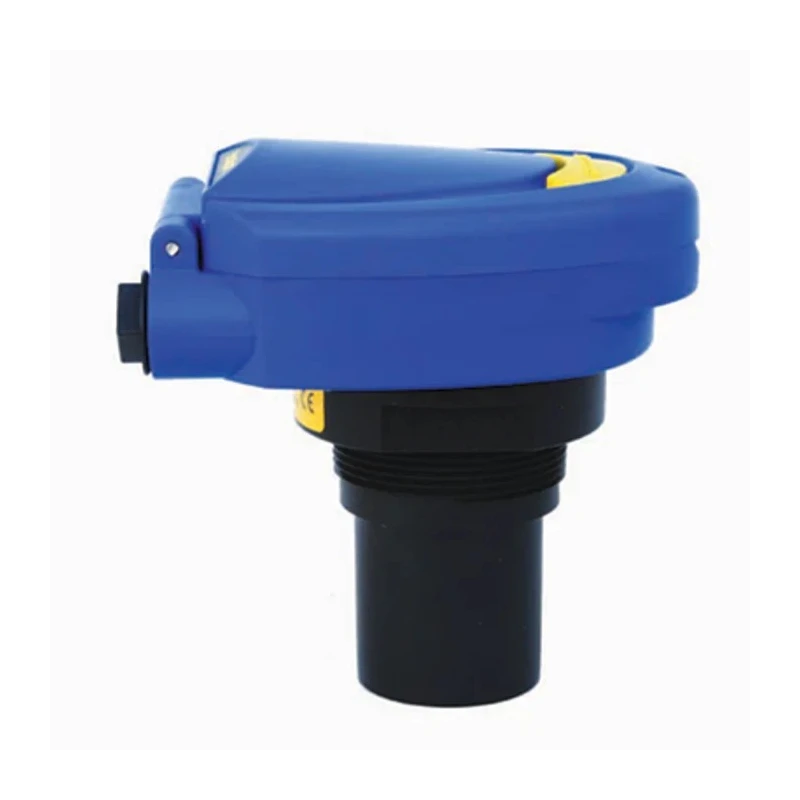

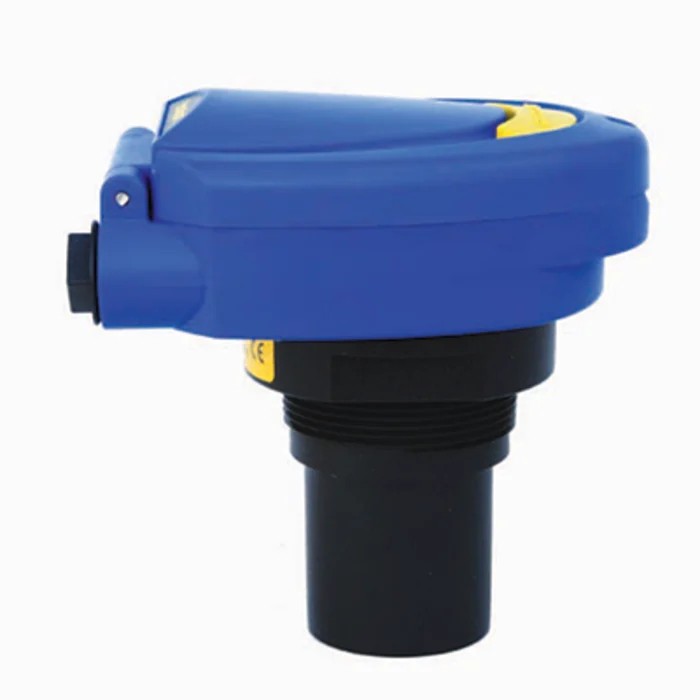

Flowline EchoSonic Series Ultrasonic Level Transmitter Sensor, Vertical Mount, Polycarbonate Housing, Fluorelastomer LU28-01

Free Delivery in India | Lowest Global Shipping Charges

Flowline EchoSonic Series Ultrasonic Level Transmitter Sensor, Vertical Mount, Polycarbonate Housing, Fluorelastomer LU28-01

Name: Flowline EchoSonic Series Ultrasonic Level Transmitter Sensor, Vertical Mount, Polycarbonate Housing, Fluorelastomer LU28-01
Brand: FLOWLINE
SKU: 194181
Price: 1676.01 USD
Availability: InStock



Category Ultrasonic Level Sensor Brand FLOWLINE Condition New

Specifications

Country of Origin	United States
Brand	Flowline
Model	LU28-01
Cable Length	3m
Mount Type	Vertical
Housing Material	Polycarbonate
Series	EchoSonic
Maximum Operating Temperature	60°C
Maximum Pressure	2bar
Minimum Operating Temperature	-35°C
Interfaces	USB communication adapter available (RS Stock No 889-1570)
Maximum Current	20mA
Device Type	Ultrasonic Level Transmitter
Maximum dc Voltage	24V dc
Standards/Approvals	cFMus
Gasket Material	Fluorelastomer

Key Features

Equipped with a 3-meter cable length for flexible installation.
Operates reliably between -35°C and 60°C temperature range.
Supports a maximum DC voltage of 24V with 20mA current.
Designed for pressure up to 2 bar to withstand industrial environments.
Features a 6P enclosure ensuring durability and protection against ingress.
Compatible with Flowline’s WebCal software for effortless calibration.
Optional USB communication adapter enhances configuration flexibility.
Transducer is made of PVDF with polycarbonate enclosure suitable for corrosive liquids.

Product Description

Flowline LU28-01 EchoSonic Series Ultrasonic Level Transmitter is a high-precision sensor designed for continuous level measurement in vertical mounting applications. It features a durable polycarbonate housing combined with a fluorelastomer gasket to provide excellent resistance to corrosive liquids, making it well-suited for challenging industrial environments.

The transmitter supports operation over a wide temperature range from -35°C to 60°C and can handle pressures up to 2 bar. It runs on a maximum DC voltage of 24V and 20mA current, delivering a reliable 4-20mA output signal. The sensor is enclosed in a robust 6P rated enclosure, ensuring protection against environmental factors.

Equipped with a 3-meter cable for flexible setup, the LU28-01 series supports plug-and-play installation aided by digital signal processing (DSP) auto-adaptive filters for optimal signal output. Its transducer components are constructed of PVDF and polycarbonate, enhancing durability in corrosive fluid environments.

The EchoSonic series integrates seamlessly with Flowline’s free WebCal software, simplifying calibration and maintenance. Additionally, a USB communication adapter is optionally available to facilitate advanced device configuration.

Robust polycarbonate housing and fluorelastomer gasket ensure chemical resistance. 3 m cable length aids in versatile installation options. Wide operating temperature range from -35°C to 60°C. Maximum pressure rating of 2 bar suitable for many industrial processes.

Complies with cFMus safety standards. Compatible with WebCal software for calibration and diagnostics. Optional USB communication adapter improves device interaction. Designed for industrial, manufacturing, laboratory, and control systems.

Flowline’s LU28-01 ultrasonic level transmitter is ideal for continuous level measurement across diverse industrial applications including water treatment, chemical processing, and automation systems. It combines reliable sensor technology with ease of use and durability, fulfilling demanding operational requirements.
