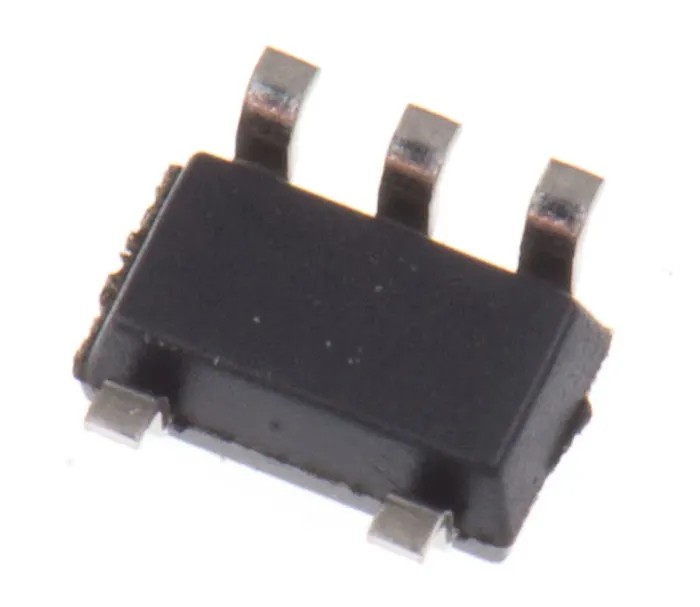

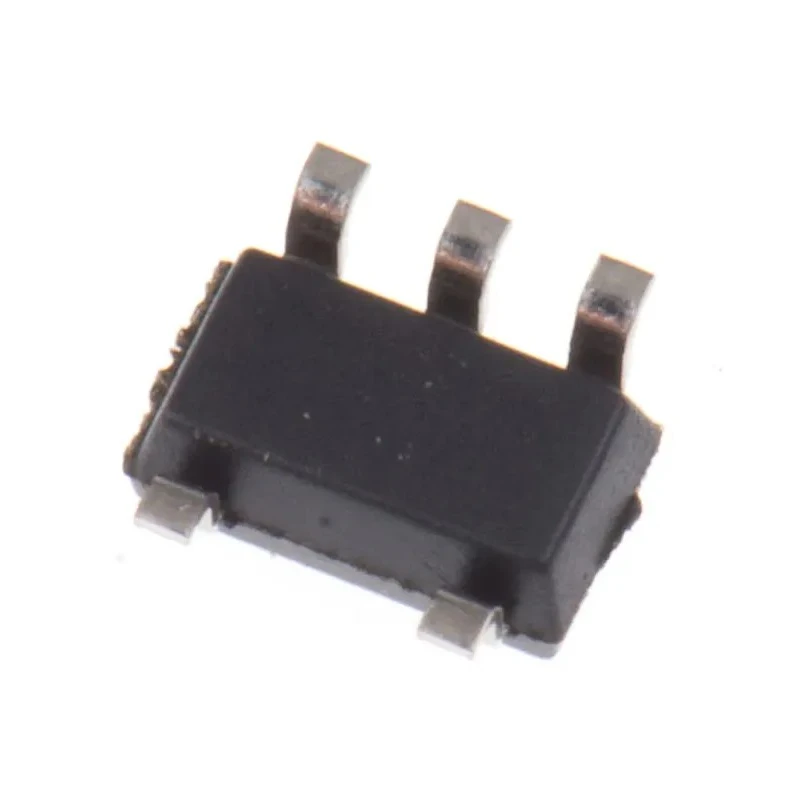

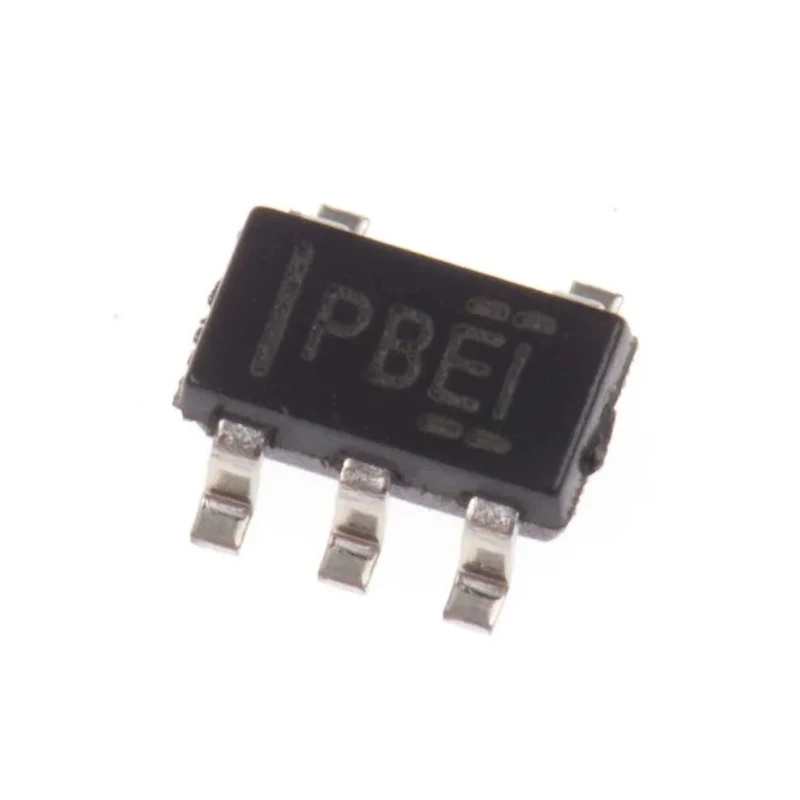

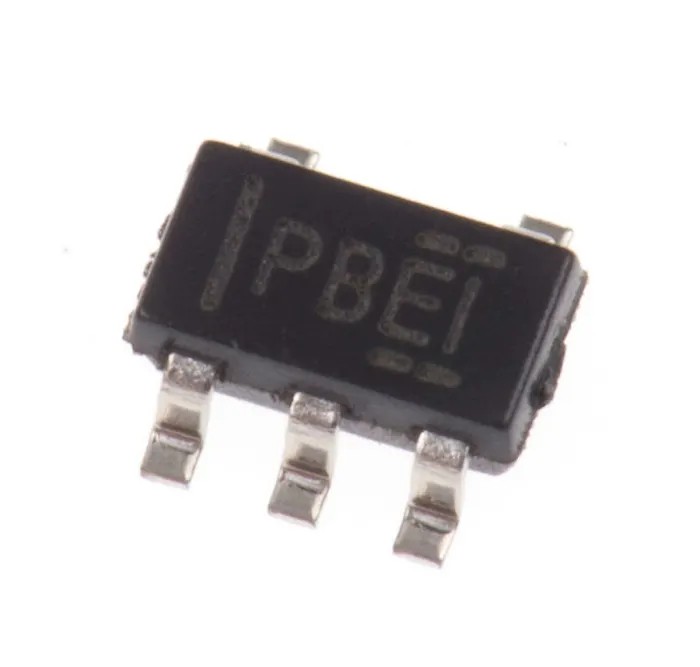

Texas Instruments Voltage Regulator SOT-23 5-Pin Positive Polarity 0.56W 10V TPS76333DBVT
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 1.15mm |
| Length | 2.9mm |
| Model | TPS76333DBVT |
| Width | 1.6mm |
| Mount Type | Surface |
| Series | TPS763 |
| Power Rating | 0.56W |
| Maximum Operating Temperature | 125°C |
| Package Type | SOT-23 |
| Polarity | Positive |
| Maximum Input Voltage | 10V |
| Quiescent Current | 85μA |
| Minimum Input Voltage | 2.7V |
| Pin Count | 5 |
Key Features
- Offers low quiescent current of 85 microamperes for efficient power consumption.
- Operates with an input voltage range from 2.7 volts to a maximum of 10 volts.
- Compact dimensions with 2.9 mm length, 1.6 mm width, and 1.15 mm height suit space-constrained PCB designs.
- Supports a maximum operating temperature up to 125 degrees Celsius ensuring reliable performance.
- Belongs to TPS763 series of low dropout (LDO) linear voltage regulators for stable voltage regulation.
- Surface mount package type (SOT-23) allows automated assembly and high-density layout.
- Designed for applications requiring positive polarity voltage regulation with a 5-pin configuration.
- Provides excellent line regulation, low output noise, and high power supply rejection ratio (PSRR).
Product Description
The Texas Instruments TPS76333DBVT voltage regulator is a high-performance low dropout (LDO) linear regulator delivering up to 0.56 watts of power with an efficient quiescent current of just 85 microamperes. Packaged in a compact SOT-23 5-pin surface mount device measuring 2.9 mm by 1.6 mm by 1.15 mm, it is optimized for space constrained designs and automated PCB assembly.
This positive polarity voltage regulator from the TPS763 series offers stable voltage regulation across an input voltage range of 2.7 V to a maximum of 10 V. It can safely operate across a temperature range up to 125°C, ensuring robust operation in demanding environments.
Featuring excellent line voltage regulation, low output noise, and a high power supply rejection ratio (PSRR), this voltage regulator is suitable for a wide variety of applications including industrial equipment, instrumentation, and general electronics requiring precise and stable voltage supply.
The surface mount SOT-23 package supports efficient assembly and high-density circuit board layouts, making it ideal for compact electronic device power management solutions. Low quiescent current of 85μA promotes power efficiency.
Operates with input voltage range from 2.7 V to 10 V maximum. Compact SOT-23 5-pin surface mount package. Maximum operating temperature of 125°C for reliable performance. Offers stable output with low dropout characteristics.
Ideal for industrial, instrumentation, and electronic device power regulation. TPS763 series family offering consistent quality and performance.
This voltage regulator is part of the Texas Instruments Power Management IC portfolio, expertly designed to meet rigorous industrial standards. It is suitable for integration into various electronics requiring efficient, low noise, and reliable voltage regulation.
Explore more Texas Instruments Power Management components and Voltage Regulators on EnvMart for dependable power solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It operates with an input voltage range from 2.7 volts to a maximum of 10 volts.
This model has a maximum power rating of 0.56 watts.
The dimensions of the SOT-23 package are 2.9 mm in length, 1.6 mm in width, and 1.15 mm in height.
The quiescent current is 85 microamperes, promoting efficient power consumption.
It can safely operate at a maximum temperature of 125 degrees Celsius.
This model is designed for surface mounting, specifically in a SOT-23 package.
This voltage regulator is designed for positive polarity voltage regulation.
It features excellent line regulation, low output noise, and a high power supply rejection ratio (PSRR).
It is suitable for applications including industrial equipment, instrumentation, and general electronics requiring stable voltage supply.
This model has a 5-pin configuration.
The country of origin for this voltage regulator is India.
