EAO Illuminated Push Button Switch, Momentary, Panel Mount, 16 mm Cutout, SPDT, Blue LED, IP65 IP67, 240V, 3A, 82-4551.1124



Category Push Button Switch Brand EAO Condition New

Specifications

Country of Origin	India
Brand	EAO
Length	34.5mm
IP Rating	IP65, IP67
Mount Type	Panel
Series	82
Maximum Operating Temperature	70°C
Contact Configuration	SPDT
Minimum Operating Temperature	-30°C
Panel Cutout Size	16 mm
Standards/Approvals	CB, CCC, cUL, UL
LED Colour	Blue
Switch Operation	Momentary
Actuator Colour	Natural
Contact DC Voltage	240V
Actuator Style	Flat
Switch Contact Current	3A
Contact AC Voltage	230V ac

Key Features

The switch operates momentarily, ensuring immediate response when pressed.
It has a panel cutout size of 16 mm suitable for compact installations.
Blue LED illumination ring shows operational status clearly.
SPDT contact configuration supports versatile electrical control.
The unit is rated for 240V DC and 230V AC operation with 3A contact current.
Its IP65 and IP67 ratings provide protection against dust ingress and water immersion.
Operating temperature ranges from -30°C to +70°C for varied environments.
Flush mounting design prevents accidental actuation and aids panel aesthetics.

Product Description

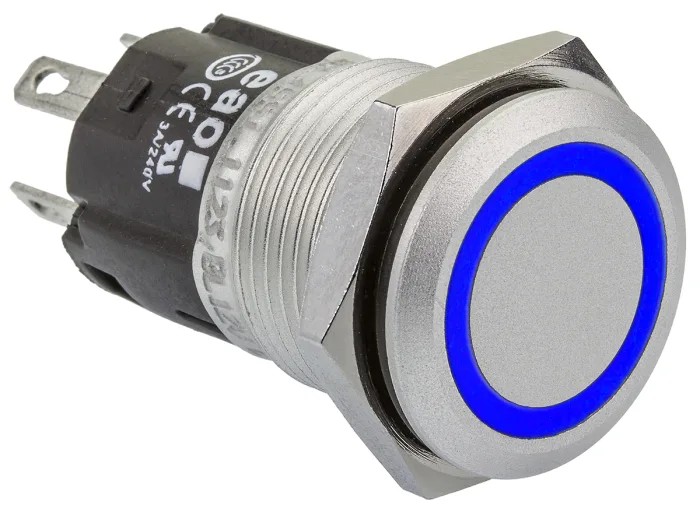

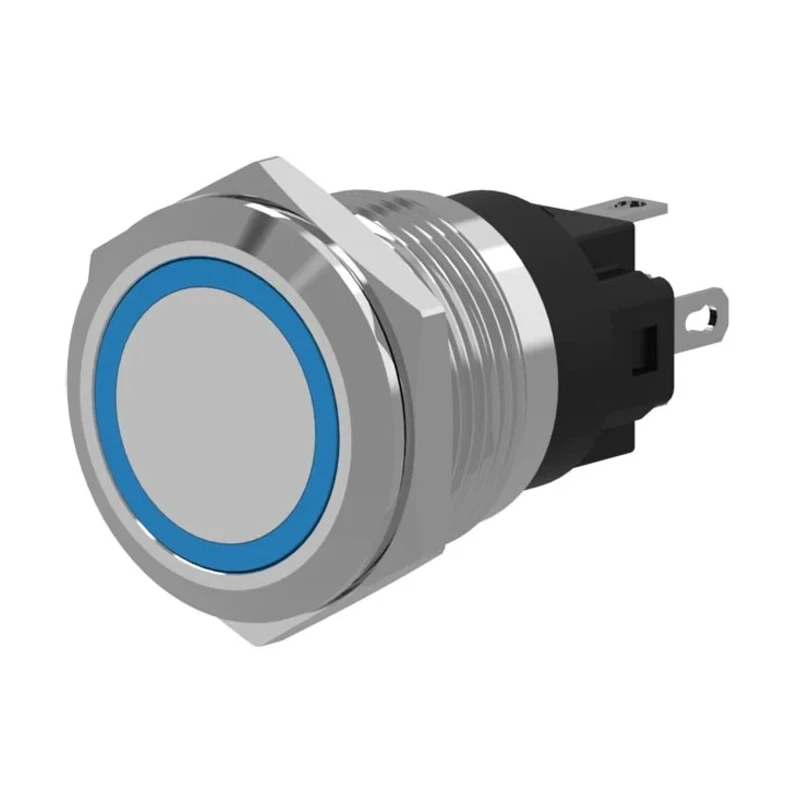

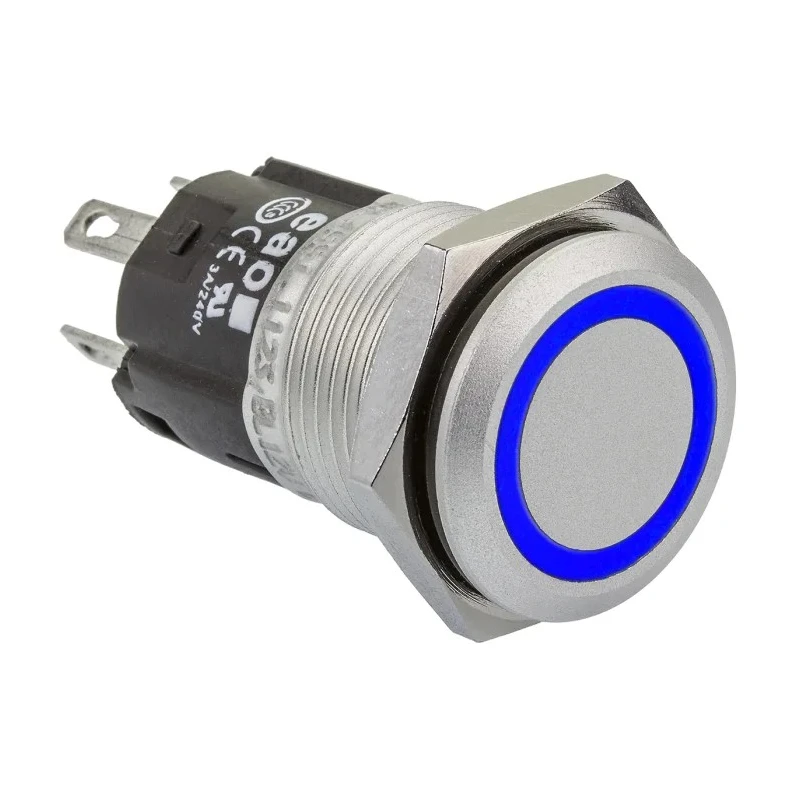

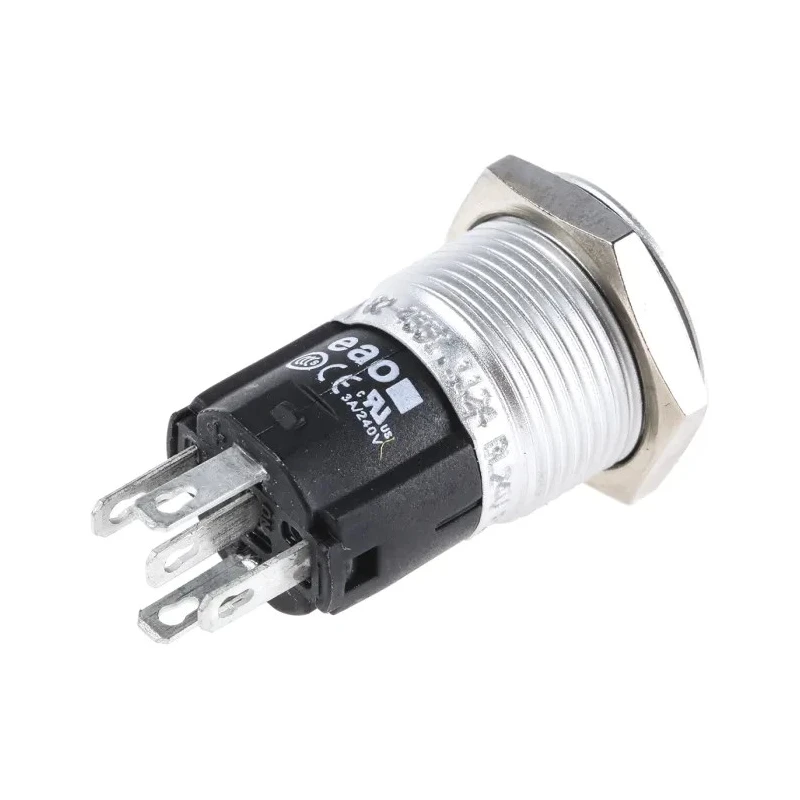

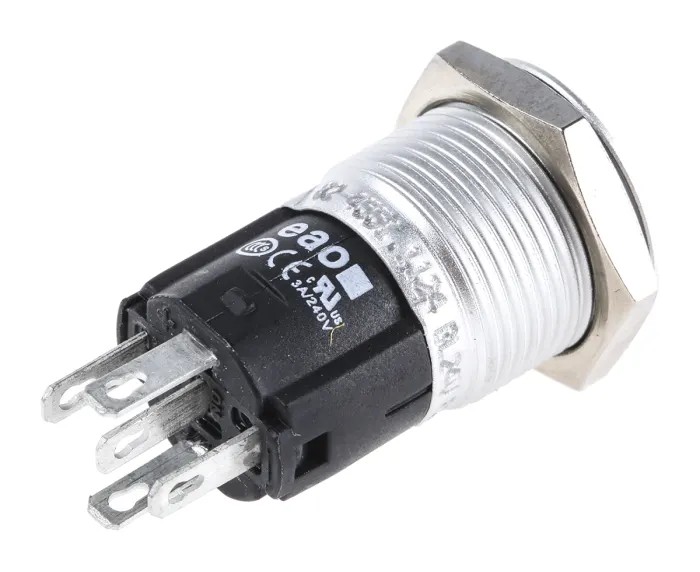

The EAO 82-4551.1124 Illuminated Push Button Switch is a high-quality momentary switch designed for panel mounting with a precise 16 mm cutout diameter. It offers a single-pole double-throw (SPDT) contact configuration and is illuminated with a blue LED ring for clear visualization of its status. This switch is suitable for controlling machinery and industrial processes, providing reliable tactile feedback and efficient operation.

This switch is engineered for demanding industrial environments, featuring IP65 and IP67 ingress protection ratings that ensure resistance to dust and submersion in water up to 1 meter for 30 minutes. Its rated contact current of 3 Amps at 230V AC (and 240V DC) accommodates typical control circuit requirements. The device operates safely within a temperature range of -30°C to +70°C, making it ideal for various application conditions.

The compact 16 mm cutout size allows installation on crowded control panels. Silver contacts provide high conductivity and resistance to corrosion, while the aluminium lens improves impact resistance and longevity. Its flush mounting design prevents accidental actuation, enhancing safety on the control interface. This switch finds applications in conveyor systems, water processing plants, woodworking machinery, and other industrial control scenarios.

EAO’s 82 Series illuminated push button switches comply with CB, CCC, cUL, and UL standards, ensuring high-quality performance and safety. Momentary switch action provides precise, responsive control. Blue LED illumination for clear operational feedback.

Robust aluminium lens offers corrosion and impact resistance. IP65 and IP67 ratings for dust tight and waterproof protection. Compact 16 mm panel cutout suitable for dense installations. Silver contacts ensure reliable electrical conductivity and durability.

Operating temperature from -30°C to +70°C. Flush mounting reduces accidental switch activation. Suitable for industrial applications like conveyors and woodworking. Certified by CB, CCC, cUL, and UL standards. Explore a wide range of Push Button Switches and controls in the Electronics & Electricals section for your industrial and automation needs at EnvMart.
