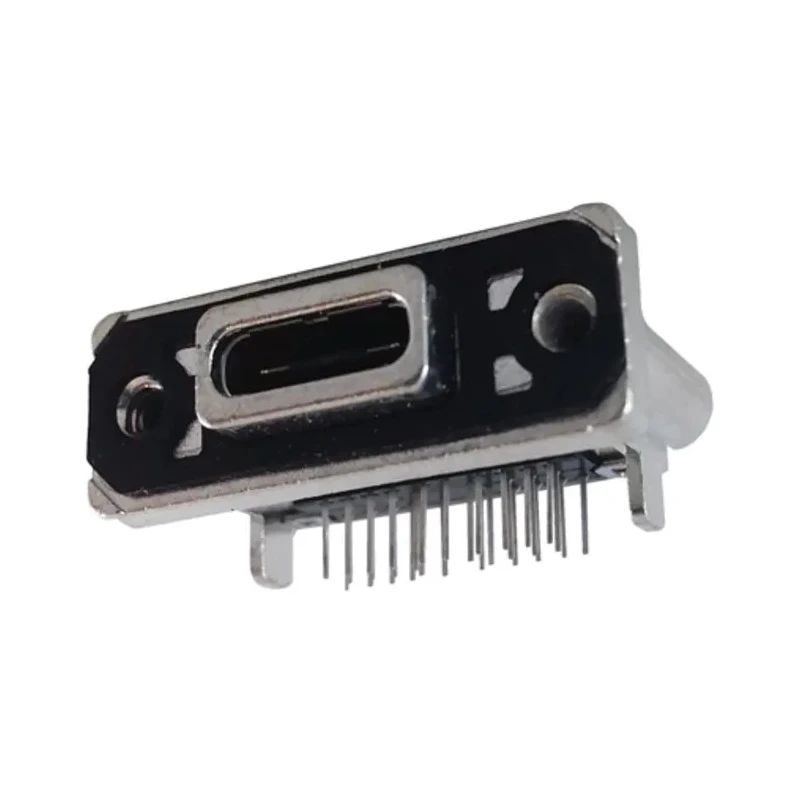

Amphenol Communications Solutions Right Angle PCB Female USB Type C IP67 USB 3.1 Connector MUSBR-M1C1-30
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 100V |
| Brand | Amphenol Communications Solutions |
| Orientation | Right Angle |
| Current | 1.25A |
| Model | MUSBR-M1C1-30 |
| IP Rating | IP67 |
| Mount Type | PCB |
| Contact Material | Copper Alloy |
| Series | MUSBR |
| Number Of Ports | 1 |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| USB Type | USB Type C |
| Connector Gender | Female |
| USB Specification | USB 3.1 |
Key Features
- Supports high-speed data transfer rates up to 10 Gbit/s.
- Capable of delivering power up to 100 Watts.
- Constructed with a copper alloy contact material for reliability.
- Features a reversible plug interface eliminating miss-mating issues.
- Encased in a nickel plated diecast zinc outer shell for durability.
- Stainless steel rear shields provide additional mechanical protection.
- Operates within temperature range from -40°C to 105°C.
- Fixed mounting via M2.5 x 0.45 or 2 to 56 UNC threads.
Product Description
Amphenol Communications Solutions MUSBR-M1C1-30 is a right angle, PCB mount female USB Type C connector designed for harsh environments. It complies with USB 3.1 standard, supporting high-speed data transfer rates up to 10 Gbit/s and power delivery up to 100 Watts. This connector features a reversible interface, allowing plugs to mate in any orientation, preventing miss-mating and ensuring reliable connections.
The compact yet robust design includes a high-temperature thermoplastic housing protected by a nickel plated diecast zinc outer shell. Stainless steel rear shields add extra mechanical resilience, suitable for industrial and commercial applications. This connector is IP67 rated, providing excellent dust and water resistance, making it ideal for demanding environments.
The contact material is copper alloy, ensuring stable electrical performance and durability. The connector is designed for PCB mounting with right angle orientation using solder termination, facilitating flexible layout options. It operates reliably within -40°C to 105°C temperature range.
This USB connector is commonly used in devices such as smartphones, tablets, PCs, laptops, power packs, chargers, and industrial machinery requiring rugged and dependable USB connectivity solutions. Mounting is secured via M2.5 x 0.45 or 2 to 56 UNC threads. Dust caps for additional protection are sold separately.
Supports USB 3.1 high-speed data transmission up to 10 Gbit/s. Power delivery capacity up to 100 Watts for versatile applications. Rugged nickel plated diecast zinc outer shell with stainless steel shielding. Right angle PCB mount configuration with solder termination.
IP67 rating ensures dust-tight and water immersion protection. Reversible USB Type C interface prevents connector damage and misalignment. Wide operating temperature range suitable for harsh conditions. Constructed with copper alloy contacts for robust and reliable connections.
Designed for industrial, commercial, and mobile device applications. Mounting secured by industry-standard threads. Explore more USB Connector solutions and components at EnvMart for your industrial and commercial electronics projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It supports high-speed data transfer rates up to 10 Gbit/s, compliant with the USB 3.1 standard.
This model is capable of delivering power up to 100 Watts, making it suitable for various applications.
It operates reliably within a temperature range from -40°C to 105°C, suitable for harsh environments.
It is designed for PCB mounting with a right angle orientation, secured via M2.5 x 0.45 or 2 to 56 UNC threads.
The contact material is copper alloy, and it features a rugged nickel plated diecast zinc outer shell with stainless steel rear shields for added protection.
This connector has an IP67 rating, providing excellent dust-tight and water immersion protection.
It has a single port configuration, designed for USB Type C connections.
The termination type for this model is solder, facilitating secure connections on the PCB.
Specific dimensions are not provided, but it is designed for compact PCB applications with right angle orientation.
It is commonly used in devices such as smartphones, tablets, PCs, laptops, power packs, chargers, and industrial machinery.
The connector gender is female, designed for use with male USB Type C plugs.
It has a current rating of 1.25A, suitable for various electronic applications.
