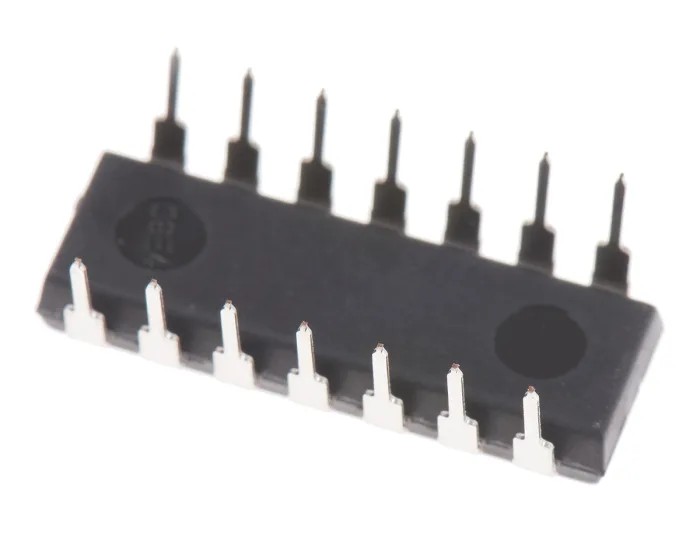

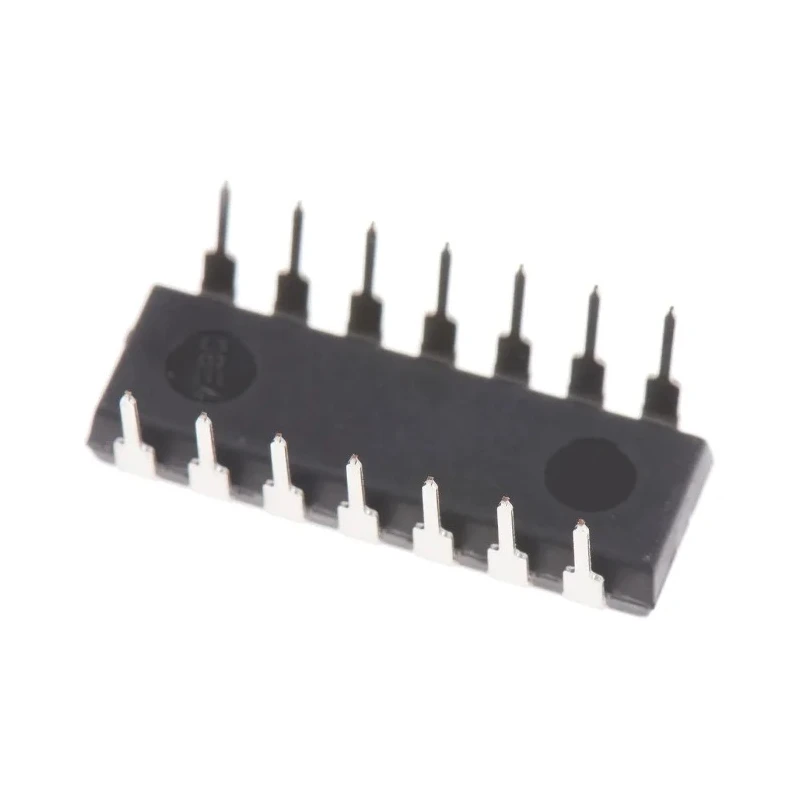

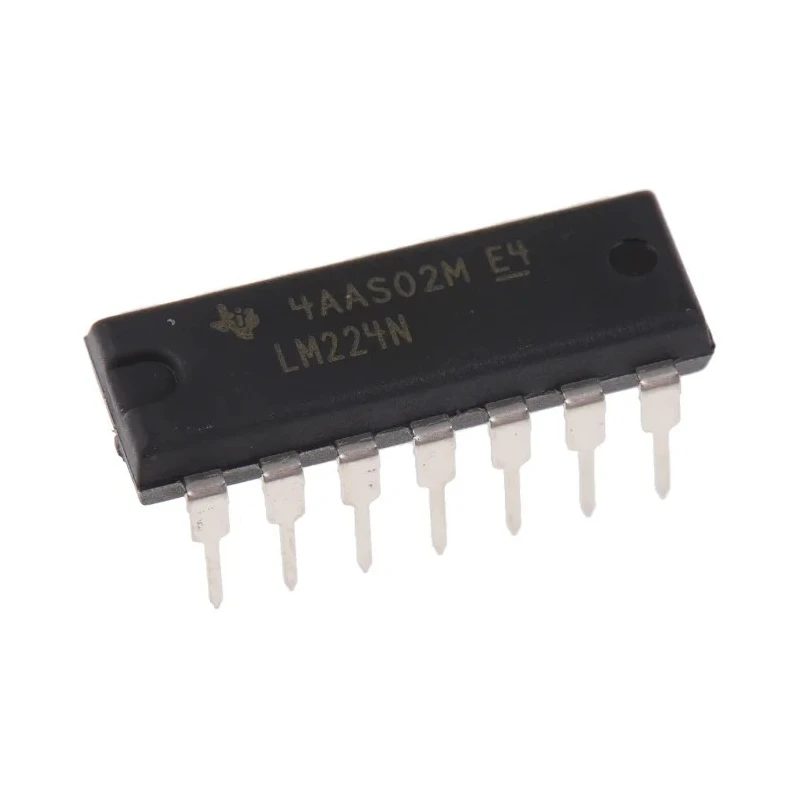

Texas Instruments Operational Amplifier 1.2 MHz 30V 14-Pin PDIP 4-Channel LM224N

Texas Instruments LM224N operational amplifier is a high-performance, general purpose quad op amp designed for efficient operation in a variety of electronic circuits. It operates over a 5 to 30 V supply voltage range, providing a gain bandwidth product of 1.2 MHz suitable for many analog signal processing tasks.

The device is engineered with a low input offset voltage of 7 mV, an input offset current of 100 nA, and an input bias current of -300 nA, facilitating accurate signal amplification with minimal error. Its slew rate of 0.5 V/μs ensures responsive performance in dynamic signal conditions.

Encased in a 14-pin Plastic Dual Inline Package (PDIP), it occupies minimal board space with precise physical dimensions (19.3 mm length, 6.35 mm width, 4.57 mm height), making it ideal for dense circuit designs.

This operational amplifier runs reliably within an operating temperature range from -25°C up to 85°C, making it suited for both industrial and commercial environments. It is RoHS compliant, affirming its adherence to environmental regulations.

The LM224 series is widely used in applications including analog signal conditioning, filters, instrumentation, and other amplification tasks in electronic and electrical systems. Its quad-channel packaging simplifies implementations that require multiple amplifiers.

The device operates with a supply voltage range of 5V to 30V. It features a low input offset voltage of 7 mV and an input bias current of -300 nA. The LM224N delivers a slew rate of 0.5 V/μs and supports a maximum output current of -10 mA.

Designed to work within an operating temperature range of -25°C to 85°C. Complies with RoHS standards ensuring environmental safety. Compact 14-pin PDIP packaging with quad amplifier channels. Versatile usage in analog and electronic industrial applications.
