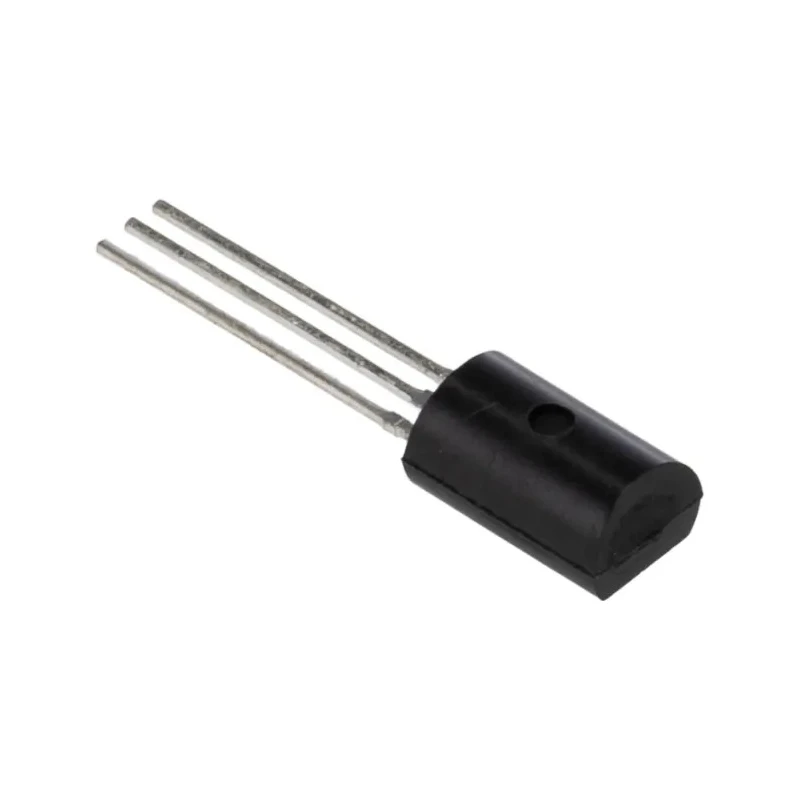

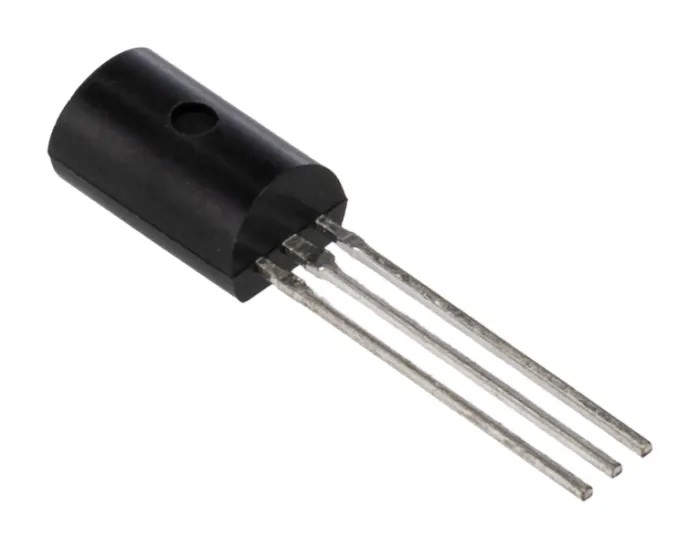

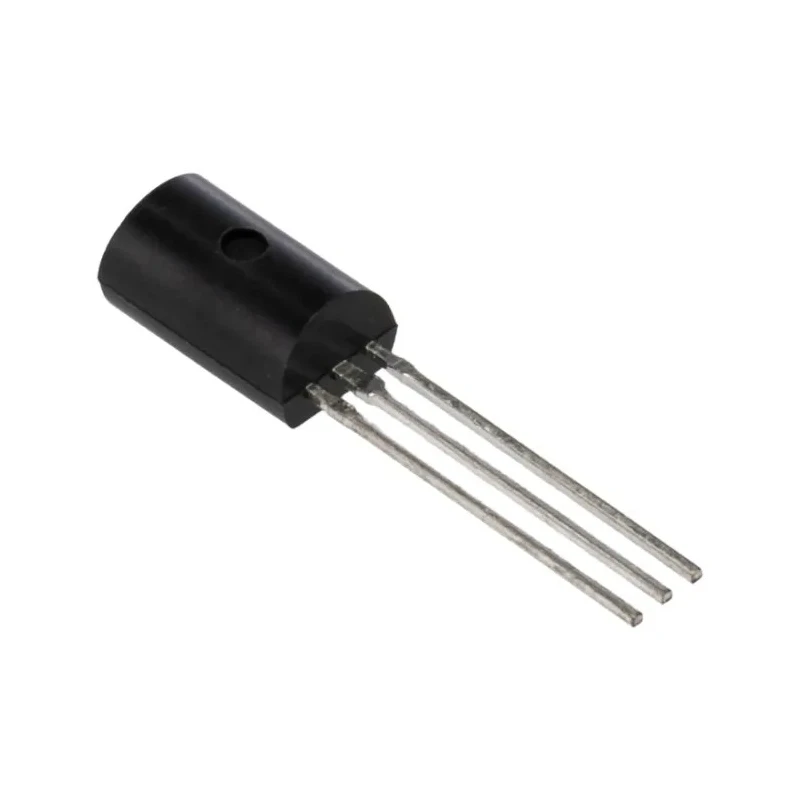

onsemi Negative Voltage Regulator TO-92 3-Pin Package MC79L05ACPG

Name: onsemi Negative Voltage Regulator TO-92 3-Pin Package MC79L05ACPG
Brand: onsemi
SKU: 193526
Price: 0.29 USD
Availability: InStock



Category Voltage Regulator IC Brand onsemi Condition New

Specifications

Country of Origin	India
Voltage	Regulators onsemi MC79L05ACPG, Voltage Regulator -30V TO-92 3-Pin RS Stock No
Brand	onsemi
Height	5.33mm
Length	5.2mm
Model	MC79L05ACPG
Width	4.19mm
Mount Type	Through Hole
Series	MC79LxxA
Maximum Operating Temperature	125°C
Package Type	TO-92
Polarity	Negative
Maximum Input Voltage	-30V
Quiescent Current	6mA
Minimum Input Voltage	-6.7V
Pin Count	3

Key Features

Provides fixed negative voltage regulation at -5 volts output.
Compact TO-92 package with through-hole mount for easy PCB integration.
Features internal short circuit current limiting and thermal overload protection.
Operates within input voltages from -6.7 V to -30 V, supporting robust industrial use.
Maximum operating temperature up to 125°C ensures durability under heat stress.
Low quiescent current of 6 mA for efficient power consumption.
3 pins design ensures simple connectivity and minimal footprint.
Suitable for on-card regulation or applications requiring small current negative voltage supply.

Product Description

onsemi MC79L05ACPG is a negative linear voltage regulator IC packaged in a TO-92 3-pin form factor. It provides a fixed output voltage of -5 V and supports output currents of up to 100 mA without the need for any external components, making it a user-friendly solution for various power management applications.

The device features internal mechanisms for short circuit current limiting and thermal overload protection, enhancing robustness and reliability in industrial, electronics, and embedded system applications.

Operating input voltages range from -6.7 V to -30 V with a maximum operating temperature rating of 125°C, making the MC79L05ACPG suitable for harsh environment conditions.

Its through-hole mount TO-92 package with dimensions approximately 5.2 mm length, 5.33 mm height, and 4.19 mm width, allows for easy integration into PCB designs requiring a negative voltage regulator.

Common use cases include on-card negative voltage regulation, low-power industrial electronics, and embedded device power supply stabilization, especially where space and simple circuitry are priorities.

Fixed negative voltage output of -5 V. Internal short circuit and thermal protection. Compact TO-92 package with 3 pins and through-hole mounting. Low quiescent current at 6 mA for energy-efficient performance. Wide operating voltage range from -6.7 V to -30 V.

Maximum operating temperature rating of 125°C. Robust design for industrial, electronics, and embedded system use. Simple, reliable solution for low current negative voltage regulation. Explore more Voltage Regulator ICs and power management solutions at EnvMart for all your industrial, electronics, and embedded power needs.
