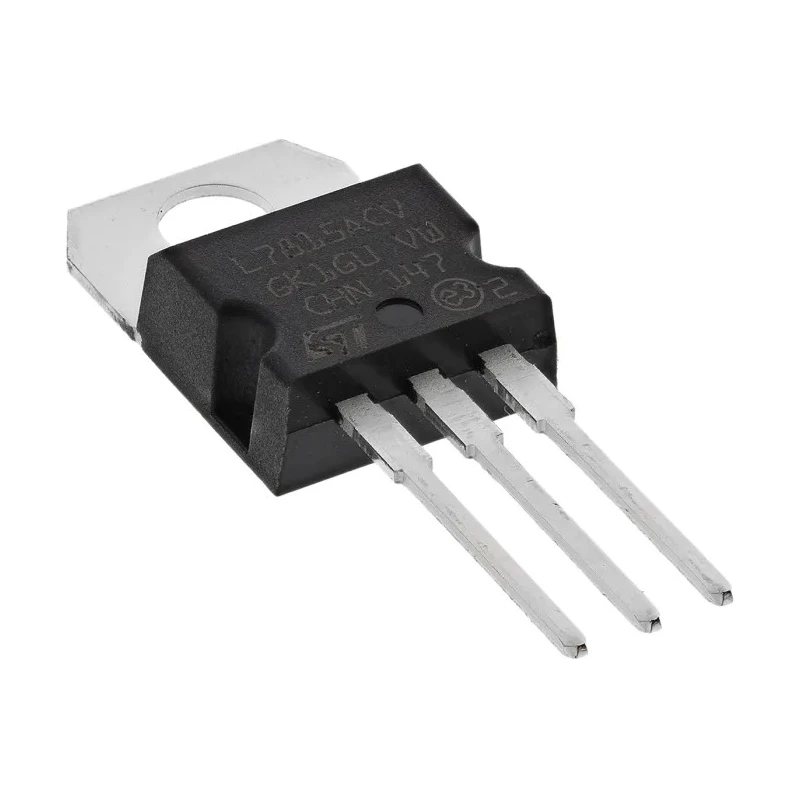

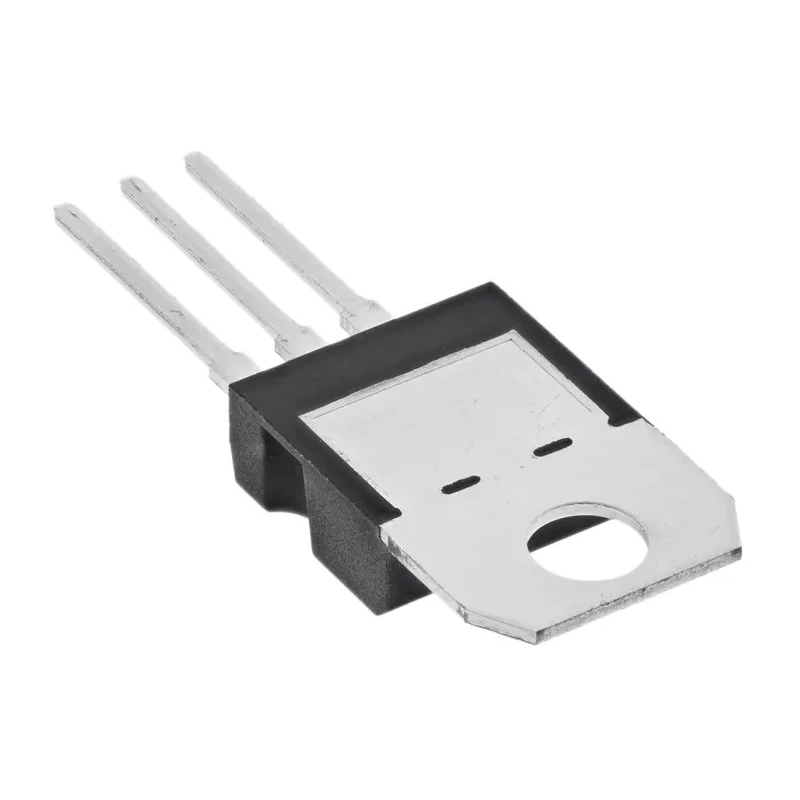

STMicroelectronics Fixed 15V Linear Voltage Regulator TO-220 3-Pin, 1.5A, 35V Input L7815ACV

STMicroelectronics L7815ACV is a fixed output linear voltage regulator designed for reliable power management in electronics. The device provides a regulated 15V output with up to 1.5A output current capacity, making it suitable for a wide range of industrial and consumer applications requiring stable power supplies.

The compact TO-220 package features 3 pins and supports through-hole mounting methods for ease of integration in designed circuits and prototype boards. This positive polarity regulator can operate with input voltages up to 35 volts, suitable for various power supply scenarios.

Internal thermal shutdown and current limiting features protect the device and connected circuitry from damage due to overcurrent or overheating conditions, ensuring longevity and safe operation.

With a quiescent current of only 4.4 milliamps, the L7815ACV reduces power loss during no-load or low-load conditions, enhancing overall circuit efficiency. The maximum operating temperature rating of 150 degrees Celsius provides robustness even in high-temperature environments.

This STMicroelectronics L78xx series device is widely adopted in electrical and electronic equipment for power management, offering dependable fixed voltage regulation for diverse applications including industrial machinery, laboratory instruments, and consumer electronics.

Output current capacity up to 1.5 amps suitable for various electronics applications. Maximum input voltage rating of 35 volts provides broad voltage tolerance. Thermal overload and safe operating area protection ensures reliable operation.

Compact TO-220 package supports through-hole mounting in custom circuits. Positive polarity regulator ideal for fixed 15V power supply design. Quiescent current is low at 4.4 milliamps minimizing power loss. Operating temperature rating up to 150 degrees Celsius for durability.

Series L78xx device widely used in power management and linear regulation tasks. Explore a broad range of power management ICs and voltage regulators from STMicroelectronics on EnvMart for your industrial, laboratory, and electronic design projects.
