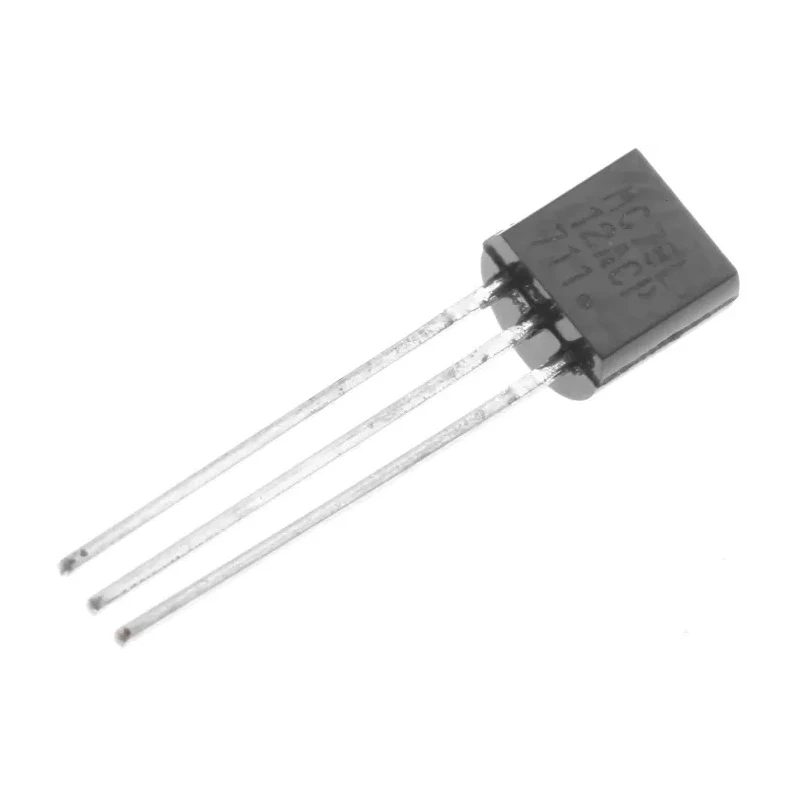

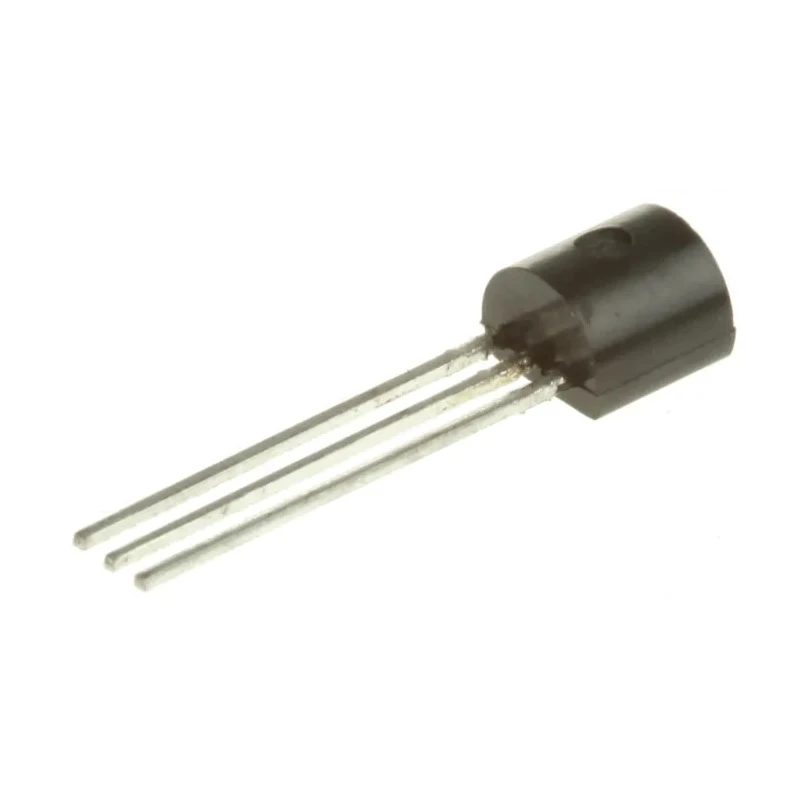

onsemi Linear Voltage Regulator 35V Input TO-92 3-Pin Positive Polarity MC78L12ACPG
Specifications
| Country of Origin | India |
|---|---|
| Voltage | Regulators onsemi, Voltage Regulator 35V TO-92 3-Pin RS Stock No |
| Brand | onsemi |
| Height | 5.33mm |
| Length | 5.2mm |
| Model | MC78L12ACPG |
| Width | 4.19mm |
| Mount Type | Through Hole |
| Series | MC78Lxx |
| Maximum Operating Temperature | 125°C |
| Package Type | TO-92 |
| Polarity | Positive |
| Maximum Input Voltage | 35V |
| Quiescent Current | 4.2mA |
| Minimum Input Voltage | 13.7V |
| Pin Count | 3 |
| Automotive Standard | AEC-Q100 |
Key Features
- Provides fixed 12V regulated output voltage for stable power supply applications.
- Compact TO-92 package with through-hole mount suitable for easy PCB integration.
- Positive polarity design with internal thermal overload protection.
- Quiescent current of 4.2mA enables efficient operation with minimal power loss.
- Compliant with AEC-Q100 automotive standard ensuring reliability in automotive environments.
- Wide operating temperature range up to 125°C for harsh environment performance.
- Pin count of 3 for simplified connections and design.
Product Description
The onsemi MC78L12ACPG is a reliable linear voltage regulator designed to provide a fixed 12V output voltage suitable for a wide variety of electronic circuit applications. Housed in a compact TO-92 package with 3 pins, it offers through-hole mounting flexibility for easy integration into printed circuit boards.
This positive polarity voltage regulator supports a maximum input voltage of 35V and a minimum input voltage of 13.7V, allowing it to accommodate a broad input voltage range while delivering precise voltage regulation. Its internal thermal overload protection and current limiting features ensure robust performance and device safety during operation.
With a quiescent current of 4.2mA, the MC78L12ACPG operates efficiently, minimizing power dissipation and heat generation. It meets the automotive standard AEC-Q100, confirming its suitability for automotive electronic systems where durability and performance under harsh conditions are critical.
Mechanically, the device measures 5.2mm in length, 4.19mm in width, and 5.33mm in height, making it ideal for space-constrained applications in industrial, automotive, and consumer electronics. The TO-92 package simplifies assembly with through-hole mounting capability.
Fixed 12V output voltage rating ensures stable power supply delivery. Incorporates internal thermal protection and current limiting for safe operation. Compact, easy to mount TO-92 3-pin package improves installation efficiency.
Wide operating temperature range up to 125°C supports diverse environments. Meets automotive standard AEC-Q100 for enhanced reliability.
This Voltage Regulator is commonly used in industrial equipment, automotive systems, consumer electronics, and power management circuits where precise and reliable voltage regulation is required. Its design optimizes local and on-card regulation, making it a versatile component in electronic and electrical systems.
Explore additional power management components and semiconductor products at EnvMart to find compatible solutions for your industrial and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum input voltage for the MC78L12ACPG is 35V.
This model provides a fixed output voltage of 12V.
The quiescent current of this voltage regulator is 4.2mA, enabling efficient operation.
The MC78L12ACPG operates within a wide temperature range up to 125°C.
It is housed in a TO-92 package, which allows for through-hole mounting.
This model features a pin count of 3, simplifying connections and design.
It complies with the AEC-Q100 automotive standard, ensuring reliability in automotive environments.
The dimensions are 5.2mm in length, 4.19mm in width, and 5.33mm in height.
The minimum input voltage for the MC78L12ACPG is 13.7V.
This voltage regulator is suitable for industrial equipment, automotive systems, consumer electronics, and power management circuits.
It incorporates internal thermal overload protection and current limiting features for safe operation.
The positive polarity design allows for stable voltage regulation in various electronic circuit applications.
