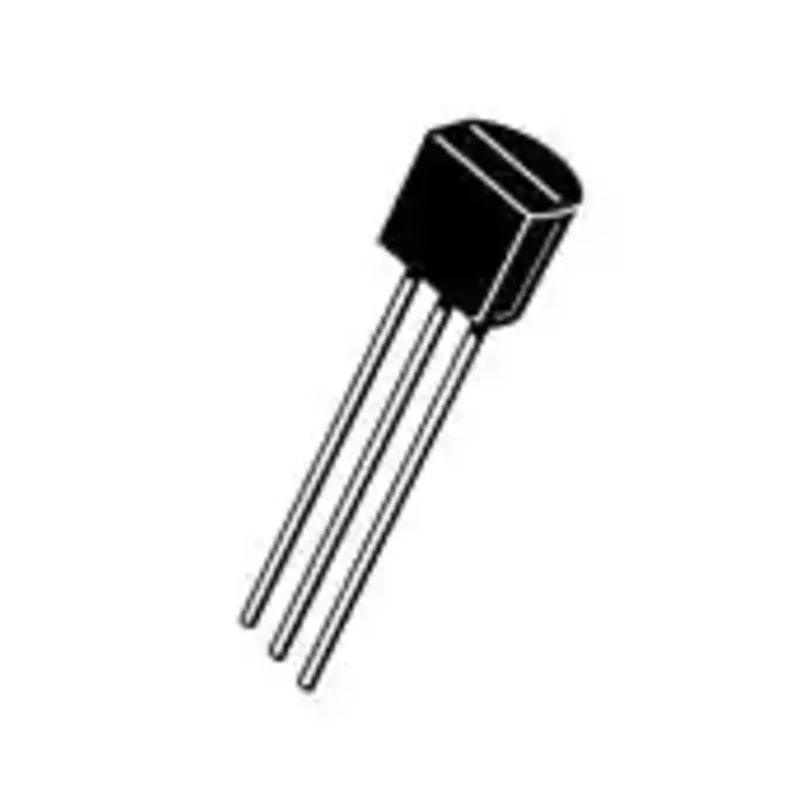

onsemi Adjustable Linear Voltage Regulator 1.25 to 37 V, 1.5 A Output Current, TO-92 3-Pin LM317LZG

onsemi LM317LZG is a highly versatile adjustable linear voltage regulator series featuring a 3-pin TO-92 package intended for through-hole mounting applications. It is designed to provide an output voltage ranging from 1.25 V up to 37 V with an output current capability of 1.5 A, enabling it to cater to a broad range of power regulation requirements in electronic systems.

The device operates with positive polarity and includes critical protection features such as short circuit current limiting, thermal shutdown, and safe-area compensation that ensure operational safety and robustness in demanding environments. The LM317 series is capable of floating operation, making it suitable for use with high-voltage power supplies.

This regulator features a low quiescent current of approximately 3.5 mA, balancing performance and energy efficiency. Its compact physical dimensions make it an ideal component for space-constrained circuit boards. Additionally, the LM317LZG complies with the automotive AEC-Q100 standard, guaranteeing reliable function across automotive temperature ranges up to 125°C.

The LM317LZG is suitable for on-card regulation, allowing precision voltage adjustment and current control by simply including a fixed resistor, which enables its use as a programmable output regulator or precision current regulator. Typical applications include power management ICs in industrial, automotive, electronics, and consumer products.

Adjustable output voltage between 1.25 V and 37 V with up to 1.5 A current output. High-reliability TO-92 package for through-hole mounting convenience. Built-in thermal protection, short circuit current limiting, and safe-area compensation.

Compliant with automotive temperature standard AEC-Q100 for harsh environment operation. Supports floating operation for integration into high-voltage systems. Compact dimensions (5.2 mm x 5.33 mm x 4.19 mm) suitable for space-constrained designs.

Low quiescent current of 3.5 mA to maximize power efficiency. Flexible usage for on-card voltage regulation and programmable output control. Ideal for industrial, automotive, consumer electronics, and power management applications.
