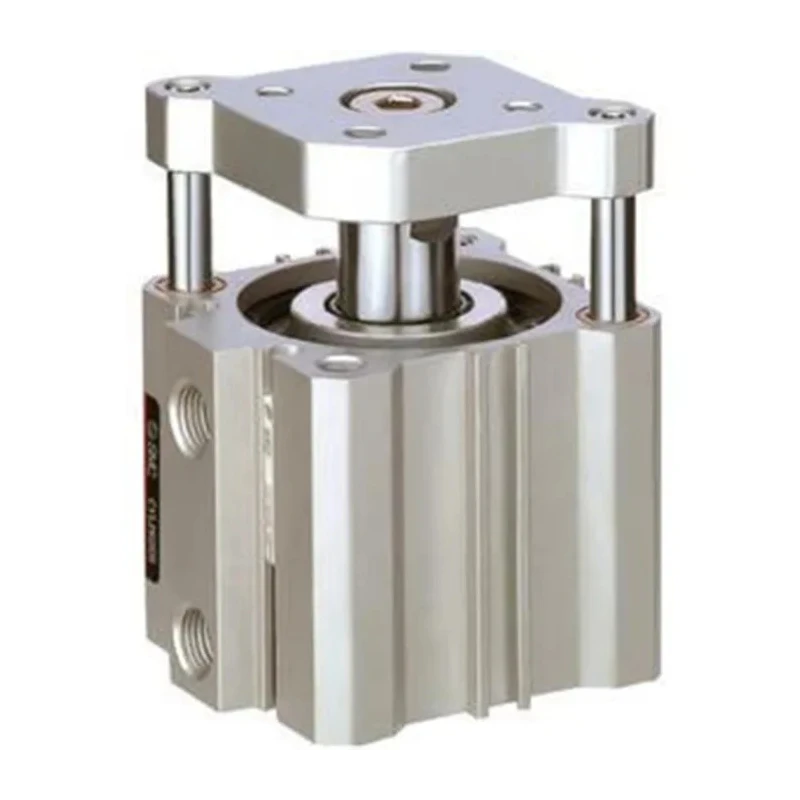

SMC Pneumatic Compact Cylinder 40mm Bore, Double Acting, Through Hole Mount, Rubber Bumper Cushioned, Aluminium CQMB40-40

Free Delivery in India | Lowest Global Shipping Charges

SMC Pneumatic Compact Cylinder 40mm Bore, Double Acting, Through Hole Mount, Rubber Bumper Cushioned, Aluminium CQMB40-40



Category Pneumatic Cylinder Brand SMC Condition New

Specifications

Country of Origin	Japan
Brand	SMC
Body Material	Aluminium Alloy
Maximum Operating Pressure	1 Mpa
Length	88mm
Model	CQMB40-40
Gross Weight	446g
Mount Type	Through Hole
Series	CQM
Maximum Operating Temperature	70°C
Minimum Operating Temperature	-10°C
Stroke Length	40mm
Bore Diameter	40mm
Rod Type	Single
Action Type	Double Acting
Cushioning Type	Rubber Bumper
Piston Rod Thread Standard	Metric
Piston Rod Thread Size	M14 x 1.5

Key Features

The cylinder features a durable aluminium alloy body for lightweight performance.
It includes a rubber bumper cushioning system to reduce impact and noise.
Designed with a single rod type and equipped with a metric threaded piston rod (M14 x 1.5).
Maximum operating pressure is 1 Mpa, supporting reliable pneumatic actuation.
Operating temperature ranges from -10°C to 70°C, suitable for various environments.
The compact design with 88mm length fits tight installation spaces efficiently.
Offers 4 times lateral load resistance compared to older CQ2K series for enhanced durability.
Non-rotating accuracy within ±0.2°, ensuring precise operation.

Product Description

SMC CQMB40-40 Pneumatic Compact Cylinder is a high-performance double acting pneumatic actuator with a 40mm bore diameter and 40mm stroke length. The cylinder features an aluminium alloy body that provides a strong yet lightweight construction suitable for various industrial applications.

This model utilizes a through hole mounting design, facilitating easy and secure installation. The single rod type piston rod comes with a metric thread size of M14 x 1.5, ensuring compatibility with standardized fittings.

The cylinder operates at a maximum pressure of 1 Mpa and can handle piston speeds up to 500 mm/s. It includes a rubber bumper cushioning system that minimizes impact and enhances operational noise reduction. The operating temperature range from -10°C to 70°C offers versatility for different environments.

The SMC CQM series compact cylinder provides four times the lateral load resistance of previous CQ2K models and maintains a non-rotating accuracy of ±0.2°, increasing the reliability and precision of pneumatic mechanical systems.

This cylinder is ideal for use in automation, manufacturing, and pneumatic machinery in industrial settings, providing efficient and accurate actuation. Manufactured in Japan, it meets high standards of quality and durability.

The cylinder features a durable aluminium alloy body for lightweight performance. Includes a rubber bumper cushioning system to reduce impact and noise. Designed with a single rod type and equipped with a metric threaded piston rod (M14 x 1.5).

Maximum operating pressure is 1 Mpa, supporting reliable pneumatic actuation. Operating temperature ranges from -10°C to 70°C, suitable for various environments. The compact design with 88mm length fits tight installation spaces efficiently.

Offers 4 times lateral load resistance compared to older CQ2K series for enhanced durability. Non-rotating accuracy within ±0.2°, ensuring precise operation. Manufactured in Japan to high-quality standards for pneumatically powered machinery.
