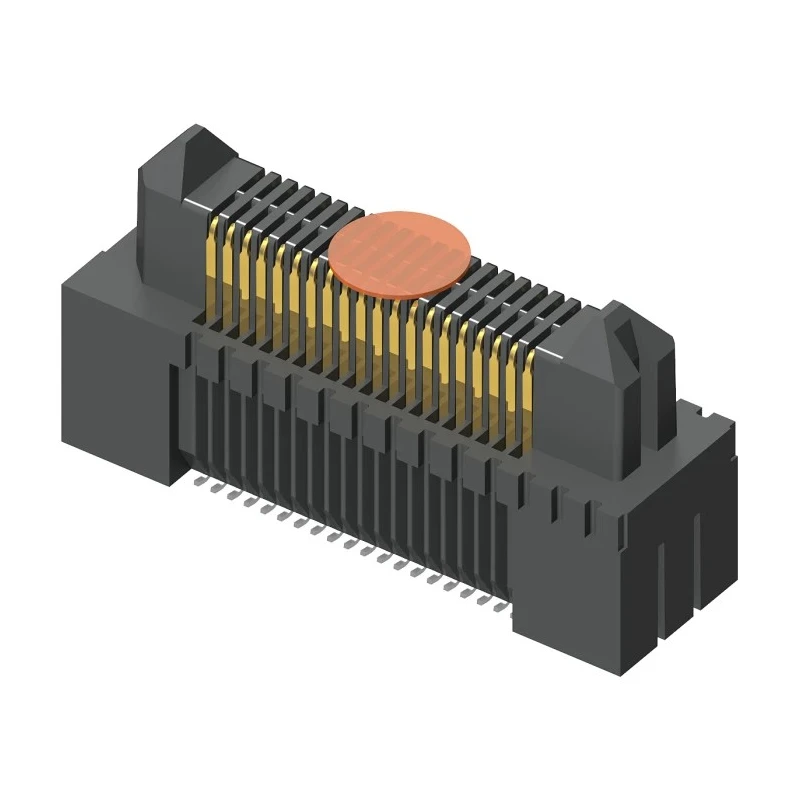

Samtec ERM5 Series Straight Surface PCB Header, 20 Contacts, 0.5 mm Pitch, 2 Row, Shrouded ERM5

Free Delivery in India | Lowest Global Shipping Charges

Samtec ERM5 Series Straight Surface PCB Header, 20 Contacts, 0.5 mm Pitch, 2 Row, Shrouded ERM5

Name: Samtec ERM5 Series Straight Surface PCB Header, 20 Contacts, 0.5 mm Pitch, 2 Row, Shrouded ERM5
Brand: Samtec
SKU: 193405
Price: 5.01 USD
Availability: InStock



Category PCB Header Brand Samtec Condition New

Specifications

Country of Origin	India
Voltage	194V
Brand	Samtec
Orientation	Straight
Current	1.5A
Model	ERM5
Mount Type	Surface
Housing Material	Liquid Crystal Polymer
Contact Material	Phosphor Bronze
Series	ERM5
Termination Type	Solder
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-55°C
Number of Rows	2
Pitch	0.5mm
Contact Plating	Gold
Number of Contacts	20
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Board-to-Board

Key Features

Features 20 male phosphor bronze contacts plated in gold for excellent conductivity and corrosion resistance.
Designed with liquid crystal polymer housing for high thermal stability and mechanical strength.
Supports a current rating of 1.5A and operates up to a maximum voltage of 194V.
Operates reliably in temperatures ranging from -55°C to 125°C.
Surface mount type with board-to-board connector system for high-speed signal integrity.
Shrouded connector reduces risk of damage and misalignment during mating.
Edge Rate contacts feature smooth milled surfaces to lower insertion forces and improve durability.
Compatible with ERF5 series board-to-board sockets for flexible mating heights from 7mm to 12mm.

Product Description

Samtec ERM5 series straight surface PCB header, model ERM5, provides high-speed SMT board-to-board connection with 20 contacts and a 0.5 mm pitch in a 2-row shrouded format. This product suits industrial electronics applications requiring compact and reliable connectors with excellent signal integrity.

Constructed with a liquid crystal polymer housing and phosphor bronze contacts plated with gold, it ensures strong mechanical and electrical performance. It supports current up to 1.5A and voltage ratings up to 194V, operating within a temperature range of -55°C to 125°C.

The Edge Rate contact design features a smooth milled surface that reduces contact wear, lowering insertion and withdrawal forces. This makes the connector durable for high-cycle applications and allows connectors to be unmated easily with minimal wear. The shrouded design protects contacts from damage and misalignment.

These headers are ideal for use in industrial, electronic manufacturing, communication equipment, and other commercial settings requiring precision board-to-board connectors. They are compatible with ERF5 series sockets to create variable mating heights between 7 mm and 12 mm, offering design flexibility.

Features 20 male gold-plated phosphor bronze contacts for reliable connectivity. Liquid crystal polymer housing provides thermal stability and durability. High-speed Edge Rate contact design supports up to 28 Gbit/s data rates.

Designed for surface mount technology and board-to-board connector systems. Operates between -55°C and 125°C temperature range. Supports 1.5A current and 194V voltage. Shrouded connector design protects contacts and facilitates easy mating.

Compatible with ERF5 connectors for mating heights of 7-12 mm.

Choose this Samtec ERM5 series PCB header for advanced, high-speed electronic board interconnections in industrial and commercial applications. Discover more PCB Headers and connectors in EnvMart’s extensive Electronics & Electricals catalog for all your component needs.
