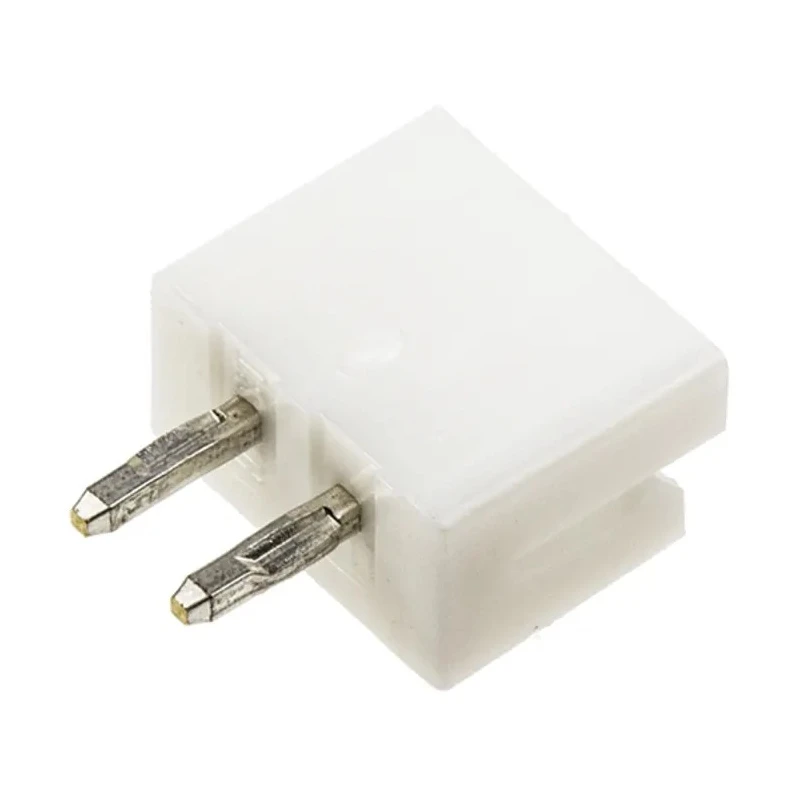

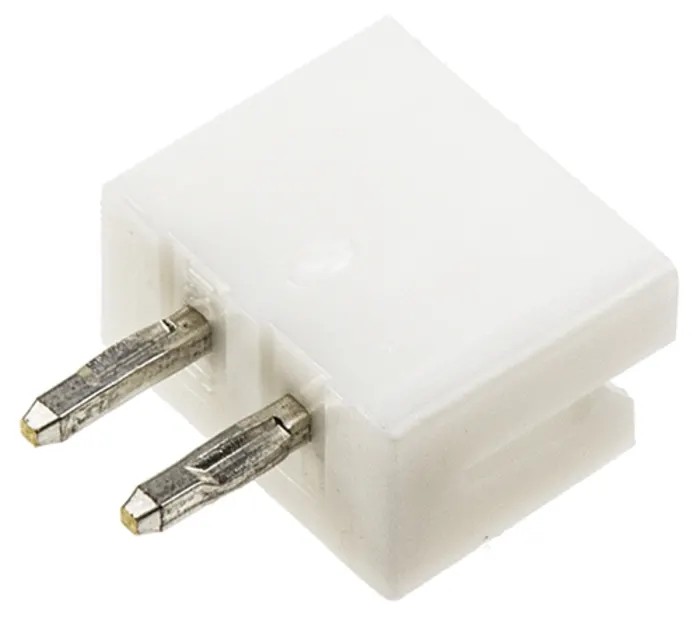

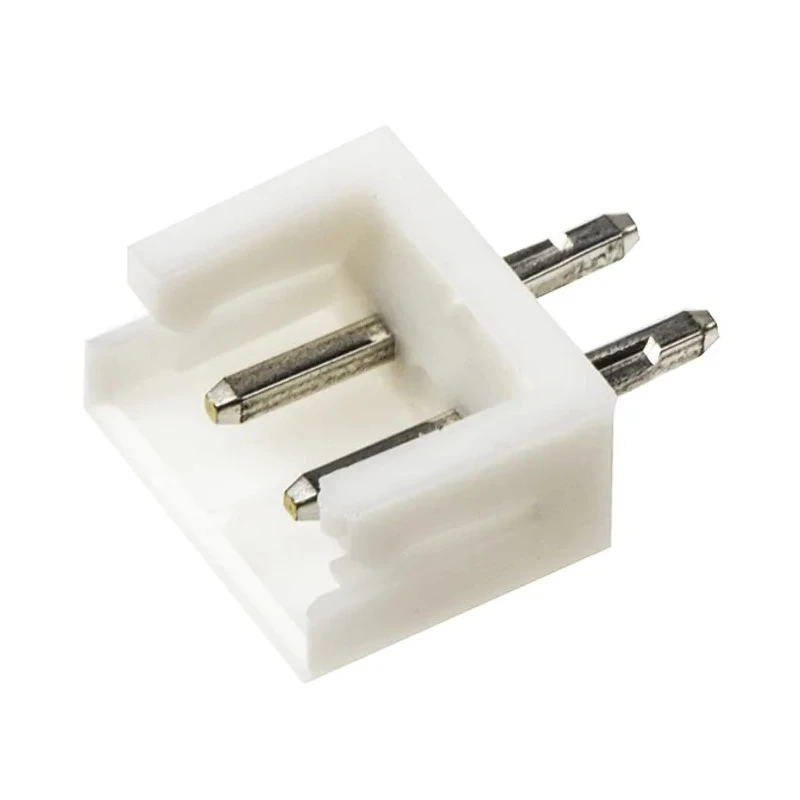

JST PCB Header EH Series Straight Through Hole 2 Contact(s) 2.5 mm Pitch 1 Row Shrouded B2B-EH-A (LF) (SN)
Specifications
| Country of Origin | Malaysia |
|---|---|
| Voltage | 250V |
| Brand | JST |
| Orientation | Straight |
| Current | 3A |
| Model | B2B-EH-A (LF) (SN) |
| Mount Type | Through Hole |
| Housing Material | Polyamide |
| Contact Material | Brass |
| Series | EH |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -25°C |
| Number of Rows | 1 |
| Pitch | 2.5mm |
| Contact Plating | Tin |
| Number of Contacts | 2 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
| Mating Pin Length | 3.2mm |
Key Features
- Features integral keying for correct polarization when mating.
- Constructed with polyamide housing for durability.
- Brass contacts plated with tin for reliable conductivity.
- Rated for minimum operating temperature of -25°C and maximum of 85°C.
- Solder termination and male contact type ensure secure connections.
- Mating pin length is 3.2 mm for reliable engagement.
- Designed as a single-row header with 2 contacts with 2.5 mm row pitch.
- Ideal for electronic components and PCB connector applications in industrial and commercial sectors.
Product Description
JST B2B-EH-A (LF) (SN) PCB Header EH Series is a precision-engineered straight through hole connector designed with 2 polyamide shrouded contacts spaced at a 2.5 mm pitch in a single row layout. This connector is rated for 3A current and accommodates operating voltages up to 250V, making it suitable for various electronic assemblies requiring reliable wire-to-board connection.
The connector features integral keying to ensure correct polarization during mating, reducing assembly errors. Brass contacts plated with tin provide excellent conductivity and corrosion resistance. It supports solder termination with male contact gender type configuration, suited for PCB soldering processes.
Operating temperature ranges from -25°C to 85°C, suitable for diverse industrial environments. The mating pin length of 3.2 mm ensures stable contact engagement. This PCB header is well suited for use in manufacturing, electronics assembly, and maintenance applications requiring dependable and standardized connectors.
Typical industrial use cases include electronic control panels, instrumentation, automotive electronics, and consumer electronic devices where secure wire-to-board connections are essential. The shrouded design enhances protection and durability against mechanical and environmental factors.
Features integral keying for correct polarization when mating. Polyamide housing provides mechanical strength and thermal resistance. Brass contacts with tin plating optimize electrical performance and longevity. Rated operating temperatures: -25°C to 85°C for versatile environmental tolerance.
Suitable for through hole PCB mounting with solder termination type. Designed for 3A current, 250V voltage operation in electronic assemblies. Single-row 2 contact design with 2.5 mm pitch for compact and reliable application.
Ideal for industrial, commercial, and electronic manufacturing industries.
This product is part of the EnvMart PCB Headers category, supporting efficient and standardized electronic component connections. Explore additional JST connectors and electronic components in the EnvMart catalog to support your engineering and production needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for a current of 3A, making it suitable for various electronic assemblies requiring reliable connections.
It can accommodate operating voltages up to 250V, suitable for a range of electronic applications.
The contacts are spaced at a 2.5 mm pitch, designed for compact connections in electronic circuits.
The operating temperature range is from -25°C to 85°C, allowing it to function in diverse industrial environments.
It features a polyamide housing for mechanical strength, with brass contacts plated with tin for reliable conductivity and corrosion resistance.
This model has 2 contacts, designed in a single-row layout for efficient space utilization on PCBs.
It uses solder termination, making it suitable for PCB soldering processes.
The mating pin length is 3.2 mm, ensuring stable contact engagement during connection.
This model is shrouded, which enhances protection and durability against mechanical and environmental factors.
The orientation of this connector is straight, designed for through hole mounting on PCBs.
The country of origin for this product is Malaysia.
It is ideal for use in electronic control panels, instrumentation, automotive electronics, and consumer electronic devices.
