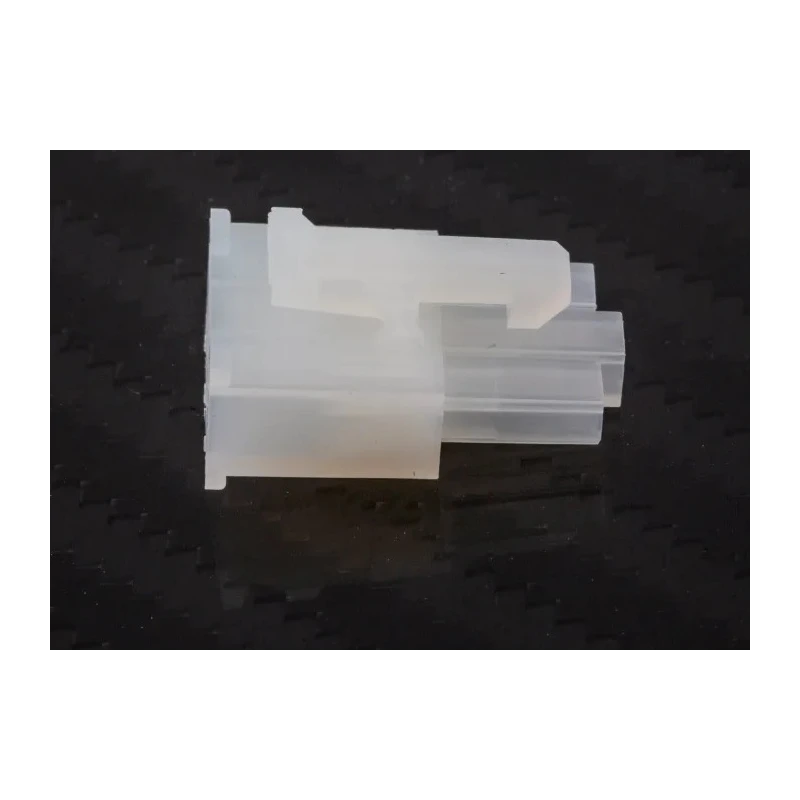

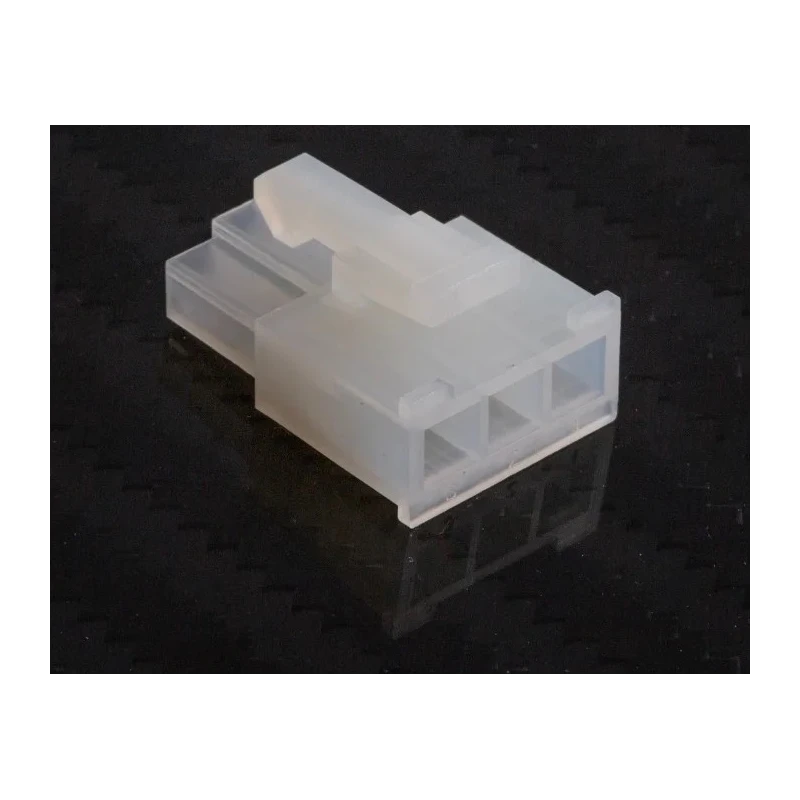

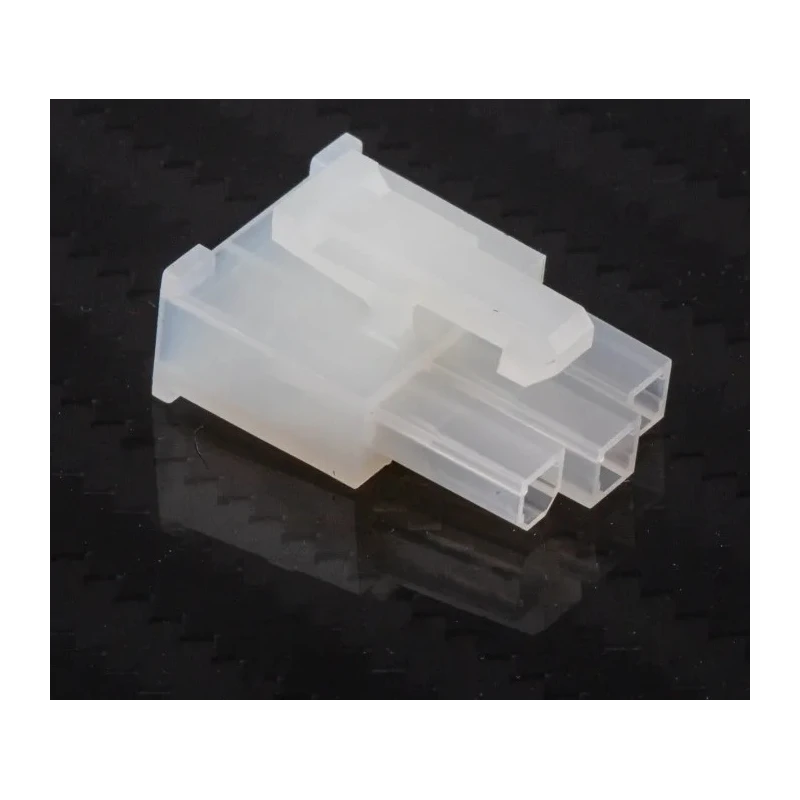

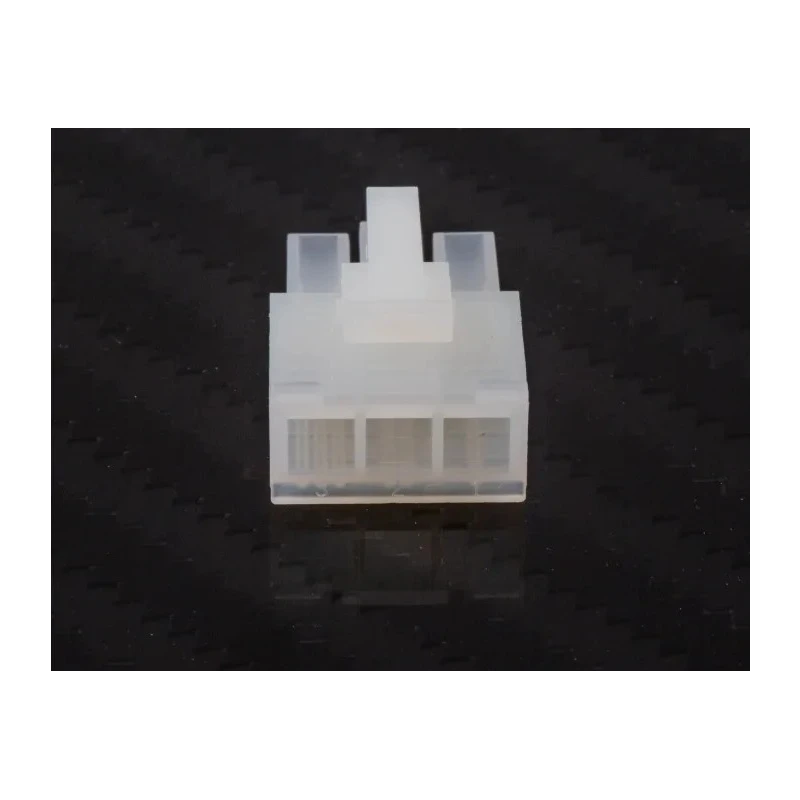

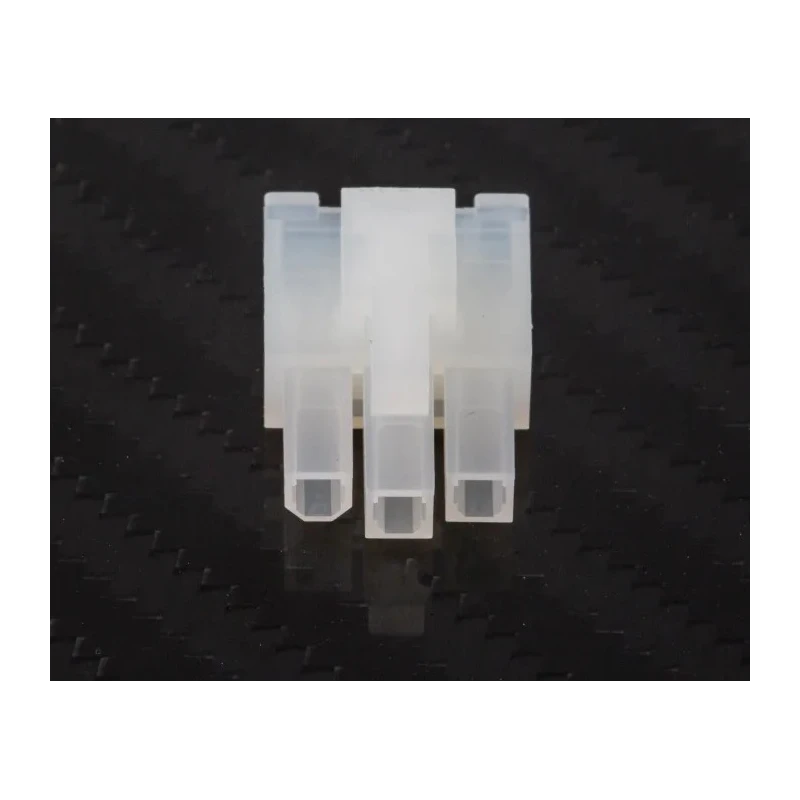

Molex Mini-Fit Female Connector Housing 4.2 mm Pitch 3 Way 2 Row Straight 39-01-4030
Specifications
| Country of Origin | India |
|---|---|
| Brand | Molex |
| Orientation | Straight |
| Length | 13.8mm |
| Width | 20.6mm |
| Mount Type | Cable |
| Housing Material | Nylon |
| Series | Mini-Fit |
| Number of Rows | 2 |
| Pitch | 4.2mm |
| For Use With | 45750 Mini-Fit Plus HCS Crimp Terminals, 5556 Mini-Fit Female Crimp Terminals |
| Number of Contacts | 3 |
| Connector Gender | Female |
| RS PRO 320 mm Pneumatic Roundline Cylinder - Mini ISO SeriesBrand | RS PRO |
Key Features
- Designed with a 4.2 mm pitch and accommodates 3 contacts across 2 rows.
- Constructed from durable nylon material providing excellent electrical insulation.
- Supports maximum current of 13A per contact suitable for high-current applications.
- Features a positive locking mechanism with an audible click confirming secure mating.
- Compatible with Mini-Fit Jr crimp terminals for versatile system integration.
- Operates reliably in temperature ranges from -40°C to +105°C for extreme environments.
- Ensures protection against dust, moisture, and vibration induced disconnections.
Product Description
Molex 39-01-4030 Mini-Fit Female Connector Housing is a high-quality component designed for wire-to-wire or wire-to-PCB connections in various industrial and electronic applications. It features a 4.2 mm pitch, supports 3 contacts arranged in 2 rows, and is constructed from robust nylon that provides excellent electrical insulation, ensuring safety and reliability.
The compact housing measures 13.8 mm in length, 20.6 mm in width, and has a depth suitable for minimal PCB space occupation. Its positive locking mechanism offers secure mating with an audible click to confirm connection integrity, preventing accidental disconnections caused by vibrations or shock.
This connector housing is compatible with Mini-Fit Jr and Mini-Fit Plus crimp terminals, providing flexibility for system designs. It supports a maximum current rating of 13A per contact, ideal for high current circuits in computing equipment, factory automation, telecommunications, and home appliances.
Designed for harsh environments, it operates within a temperature range of -40°C to +105°C, ensuring performance stability in extreme conditions. The connector’s polarization and keying features prevent incorrect insertion, enhancing connection reliability.
Compact dimensions for space-saving PCB layouts. Durable nylon housing offering high electrical insulation. Positive locking mechanism with audible feedback. High current capacity for demanding applications. Wide operating temperature range for versatile use.
Compatible with Mini-Fit Jr series crimp terminals. Prevents dust and moisture ingress for long-term reliability.
This Molex Mini-Fit Female Connector Housing is a critical component in electronic, industrial, and HVAC systems, providing dependable connectivity. Suitable for integration into power distribution, telecommunications hardware, industrial machines, and consumer electronics.
Explore more high-quality Connector Housings like this in EnvMart's comprehensive Electronics & Electricals category for reliable industrial solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a maximum current of 13A per contact, making it suitable for high-current applications.
The connector housing measures 13.8 mm in length, 20.6 mm in width, and has a suitable depth for minimal PCB space occupation.
It features a pitch of 4.2 mm, accommodating 3 contacts arranged in 2 rows.
The housing is constructed from durable nylon, which provides excellent electrical insulation.
It operates reliably in temperature ranges from -40°C to +105°C, suitable for extreme environments.
It is compatible with Mini-Fit Jr crimp terminals, specifically the 45750 Mini-Fit Plus HCS and 5556 Mini-Fit Female crimp terminals.
It includes a positive locking mechanism with an audible click, which confirms secure mating and helps prevent accidental disconnections.
The design ensures protection against dust, moisture, and vibration-induced disconnections, enhancing long-term reliability.
This connector housing is designed with a straight orientation for ease of installation.
It is suitable for various industrial and electronic applications, including power distribution, telecommunications hardware, and consumer electronics.
The connector housing is female, designed for wire-to-wire or wire-to-PCB connections.
The country of origin for this connector housing is India.
