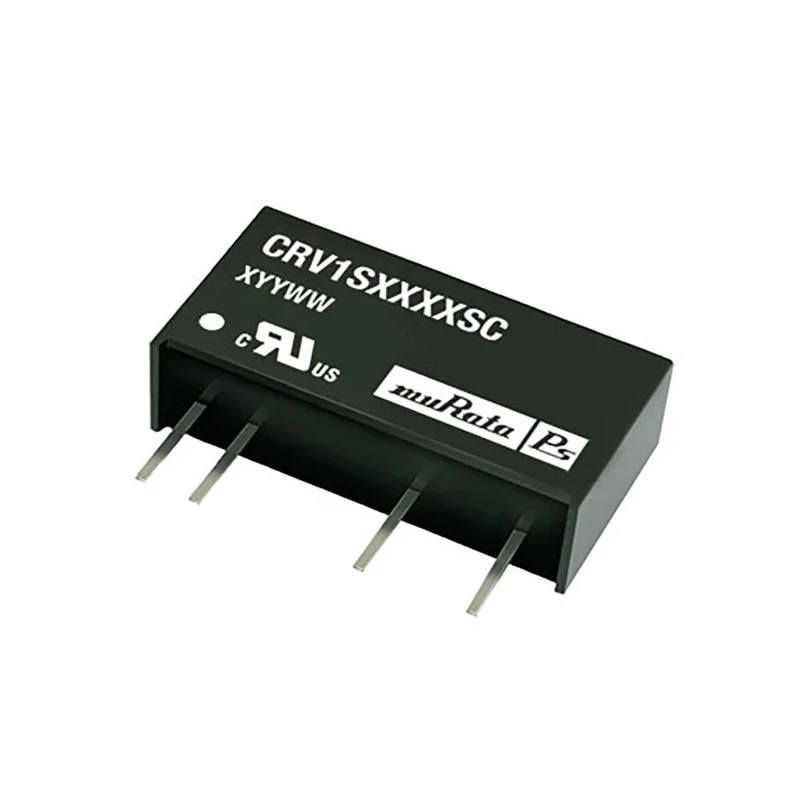

Murata Power Solutions DC/DC Converter 12V -12V Output, 4.5-5.5V Input, 1W Through Hole CRV1
Specifications
| Country of Origin | India |
|---|---|
| Voltage | Converters / DC-DC Converters Murata Power Solutions CRV1 DC/DC Converter, 12V |
| Brand | Murata Power Solutions |
| Efficiency | 79% |
| Length | 19.5mm |
| Model | CRV1 |
| Depth | 10mm |
| Gross Weight | 2.1g |
| Width | 6mm |
| Mount Type | Through Hole |
| Series | CRV1 |
| Maximum Operating Temperature | 85°C |
| Package Type | SIP |
| Minimum Operating Temperature | -40°C |
| MTBF | 1579000h |
| Number of outputs | 2 |
| Ripple and Noise | 8mV Pk-Pk |
| Maximum Output Power | 1W |
| Maximum Input Voltage | 5.5V dc |
| Standards/Approvals | UL, RoHS, CRE |
| Minimum Input Voltage | 4.5V |
| Number of Pins | 7 |
| Output Voltage 1 | 12, -12V |
| Output Voltage Adjustment Range | 4.5/5.5 V |
| Isolation Voltage | 3kV dc |
| Output Current 2 | 42mA |
Key Features
- Compact SIP package with 7 pins designed for through-hole mounting.
- Maximum operating temperature up to 85 °C ensuring reliable performance.
- 3kV DC galvanic isolation for superior electrical separation.
- High efficiency of 79% reduces power losses during operation.
- Output current capability up to 242mA with low ripple and noise of 8mV peak-to-peak.
- Operating temperature range from -40 °C to 85 °C suitable for industrial applications.
- Mean time between failures (MTBF) of 1,579,000 hours for excellent reliability.
- Industry standard pinout requiring no external components.
Product Description
Murata Power Solutions CRV1 DC/DC Converter module provides isolated dual output voltages of +12V and -12V from a low input voltage range of 4.5 to 5.5V DC. This 1 Watt output power converter uses a SIP (Single Inline Package) through-hole mount design with a small form factor measuring 19.5mm in length, 10mm in depth, and 6mm in width.
Designed specifically for industrial control systems and local power supplies on control system boards, the CRV1 series offers 3kV DC galvanic isolation delivering enhanced noise immunity and safety. Its encapsulated design with toroidal magnetic components ensures long operational life and resistance to harsh environmental conditions.
This converter supports a wide operating temperature range from -40 °C to +85 °C, making it suitable for demanding electronic component, power supply, and transformer applications in industrial, laboratory, and manufacturing environments. Its high efficiency of 79% reduces heat generation and energy consumption.
The CRV1 has an output current rating up to 242mA with low ripple and noise at 8mV peak-to-peak, guaranteeing stable and clean power outputs for sensitive electronics. The product meets UL, RoHS, and CREE certifications, ensuring regulatory compliance and environmental safety.
With a mean time between failures (MTBF) of over 1.5 million hours, this DC/DC converter promises robust reliability for critical industrial applications. The standard pinout layout and lack of external component requirements simplify integration into various electronic systems.
Compact SIP through-hole module for easy PCB assembly. Dual output voltages (+12V and -12V) from low DC input. 3kV galvanic isolation for electrical safety. High reliability with MTBF of 1,579,000 hours. Low output ripple and noise for sensitive electronics.
Wide temperature range from -40 °C to 85 °C. Fully encapsulated with toroidal magnetic components for durability. Meets UL, RoHS, and CREE standards. High efficiency of 79% reduces power losses. Designed for industrial and electronic control power supplies.
Explore the full range of Murata Power Solutions DC/DC Converters on EnvMart for advanced power management solutions suited for industrial, laboratory, and commercial electronics systems.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The input voltage range for this model is 4.5V to 5.5V DC.
This unit provides dual output voltages of +12V and -12V.
The maximum output power of this converter is 1W.
It has an efficiency rating of 79%, which helps reduce power losses during operation.
The maximum operating temperature is 85°C, ensuring reliable performance in various conditions.
This model features two outputs.
The output ripple and noise is specified at 8mV peak-to-peak.
The dimensions of this model are 19.5mm in length, 10mm in depth, and 6mm in width.
This converter is designed for through-hole mounting.
The isolation voltage for this model is 3kV DC, providing enhanced electrical safety.
The mean time between failures (MTBF) is 1,579,000 hours, indicating excellent reliability.
This unit meets UL, RoHS, and CREE standards for regulatory compliance and environmental safety.
