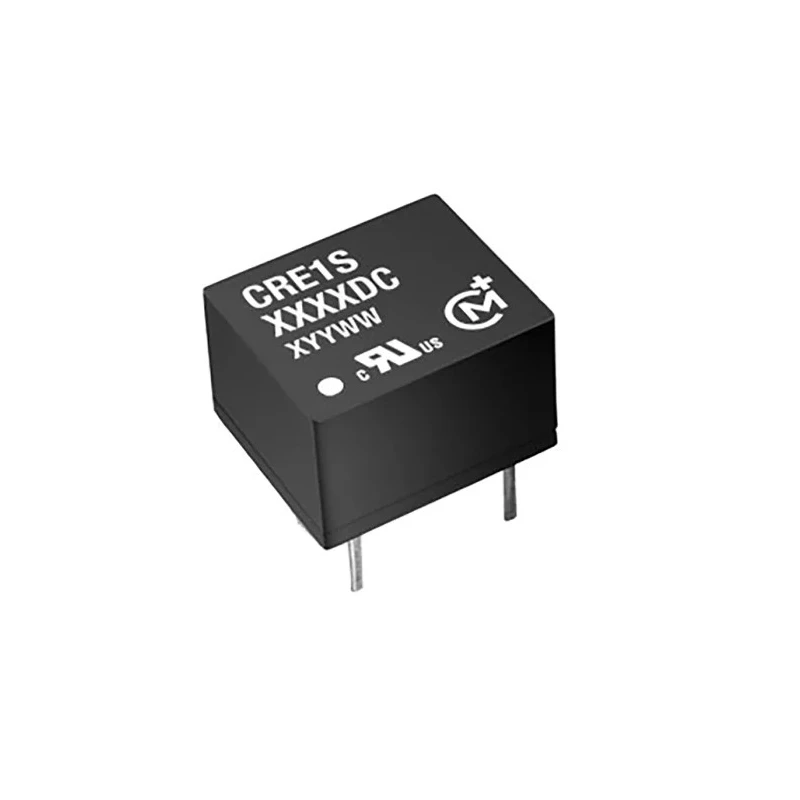

Murata Power Solutions CRE1 Isolated DC/DC Converter 5V Output, 4.5-5.5V Input, 1W, Through Hole Mount, 85°C Max Temperature
Specifications
| Country of Origin | China |
|---|---|
| Voltage | Converters / DC-DC Converters Murata Power Solutions CRE1 DC/DC Converter, 5V dc |
| Brand | Murata Power Solutions |
| Efficiency | 70% |
| Length | 11.6mm |
| Model | CRE1 |
| Depth | 6.9mm |
| Gross Weight | 1.38g |
| Width | 9.9mm |
| Mount Type | Through Hole |
| Series | CRE1 |
| Maximum Operating Temperature | 85°C |
| Package Type | DC |
| Minimum Operating Temperature | -40°C |
| Number of outputs | 1 |
| Ripple and Noise | 25mV Pk-Pk |
| Maximum Output Power | 1W |
| Maximum Input Voltage | 5.5V dc |
| Standards/Approvals | CRE, RoHS, UL |
| Minimum Input Voltage | 4.5V |
| Number of Pins | 8 |
| Output Voltage 1 | 5V dc |
| Output Voltage Adjustment Range | 4.5/5.5 V |
| Isolation Voltage | 1kV dc |
| Output Current 2 | 200mA |
Key Features
- Compact through hole mounting package with 8 pins and standard industry pinout.
- Wide operating temperature range from -40°C to +85°C for robust performance.
- Galvanic isolation providing 1kV DC isolation voltage for electrical safety.
- Output current rating up to 2200mA with low ripple and noise of 25mV peak-to-peak.
- Size dimensions of 11.6mm length, 9.9mm width, and 6.9mm depth for easy PCB integration.
- Typical efficiency of 70% ensures energy effective operation.
- Suitable for integration in a variety of industrial, laboratory, and electronic power supply applications.
- Conforms to CRE, RoHS, and UL standards ensuring quality and environmental compliance.
Product Description
Murata Power Solutions CRE1S0505DC Isolated DC/DC Converter delivers a regulated 5V DC output from an input voltage range of 4.5 to 5.5V DC, providing up to 1 watt of power in a compact, industry-standard, through-hole package.
This converter supports a wide operating temperature range from -40°C to 85°C, making it suitable for demanding industrial environments and applications requiring reliable power conversion and galvanic isolation of 1kV DC.
The CRE1 series boasts a standard pinout with 8 pins, enabling straightforward integration into existing designs, and is crafted for use in electronic circuits requiring electrical isolation and voltage conversion such as telecommunications, instrumentation, and control systems.
Key features include low output ripple and noise of 25mV peak-to-peak, output current capability of 2200mA, and an efficiency of approximately 70% which assures power efficiency and thermal management. Its compact physical size is 11.6mm long by 9.9mm wide by 6.9mm deep, weighing just 1.38 grams.
This DC/DC converter complies with CRE, RoHS, and UL standards, guaranteeing quality and safety. Its isolated single output design supports applications where galvanic isolation between input and output is required, protecting sensitive electronics from voltage spikes and ground loops.
Compact through hole mount design with 8 pins and industry standard pinout. Wide temperature range operation from -40°C to +85°C for tough environments. Provides galvanic isolation at 1kV DC for electrical safety. Low ripple and noise of 25mV peak-to-peak suitable for sensitive electronics.
Standardized dimensions allow easy PCB footprint and design reuse. Certified to CRE, RoHS, and UL standards ensuring compliance and reliability. Efficient 70% power conversion reduces heat and energy waste. Ideal for industrial, laboratory, instrumentation, and power supply applications.
This product is part of the Murata Power Solutions CRE1 series of DC/DC Converters, widely regarded for robust isolated power conversion in compact packages. Explore EnvMart’s extensive collection of power supply and converter solutions for industrial and electronic system designs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The output voltage of this model is 5V DC.
It accepts an input voltage range from 4.5V to 5.5V DC.
The maximum output power is 1 watt.
The output current capability is up to 2200mA.
This converter has a typical efficiency of approximately 70%.
It provides galvanic isolation with an isolation voltage of 1kV DC.
The dimensions are 11.6mm in length, 9.9mm in width, and 6.9mm in depth.
The operating temperature range is from -40°C to 85°C.
This model features a through-hole mounting design with 8 pins.
It conforms to CRE, RoHS, and UL standards.
The ripple and noise level is 25mV peak-to-peak.
This model is suitable for industrial, laboratory, instrumentation, and electronic power supply applications.
