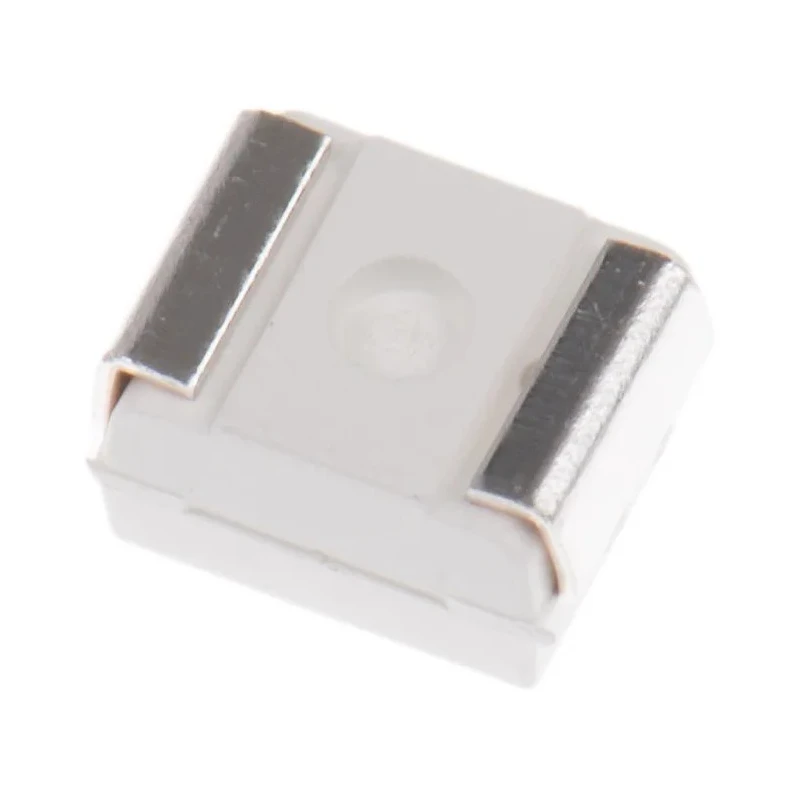

Broadcom 3.4 V Blue LED PLCC 2 Surface Mount High Reliability SMT Light Emitting Diode HSMN-A100-R00J1
Specifications
| Country of Origin | India |
|---|---|
| Brand | Broadcom |
| Model | HSMN-A100-R00J1 |
| Mount Type | Surface |
| Series | HSMx-A10x-xxxxx |
| Maximum forward current | 30mA |
| Viewing angle | 120 ° |
| Package Type | PLCC 2 |
| Standards/Approvals | JEDEC J-STD-020 |
| LED Colour | Blue |
| Dominant Wavelength | 470nm |
| Forward Voltage | 3.4V |
| Number of Pins | 2 |
| Lens Dimensions | 3.2 x 2.8 x 1.8 mm |
| Lens Shape | Round |
| Lens Finish | White |
Key Features
- Features a clear lens with white finish and round shape.
- Maximum forward current of 30mA ensures efficient operation.
- Wide viewing angle of 120 degrees for optimal light distribution.
- Compact lens dimensions measure 3.2 x 2.8 x 1.8 mm.
- Compliant with JEDEC J-STD-020 standard for quality assurance.
- Designed for harsh automotive interior or signage applications.
- Surface mount device compatible with SMT production processes.
- Dominant wavelength at 470nm produces vibrant blue light output.
Product Description
Broadcom HSMN-A100-R00J1 is a high reliability blue LED engineered with a PLCC 2 surface mount package. Operating at a forward voltage of 3.4 V and able to handle currents up to 30mA, it ensures consistent performance under demanding conditions. The LED features a clear lens with white finish and a round shape, measuring 3.2 mm by 2.8 mm by 1.8 mm, providing a compact footprint suitable for space-constrained assemblies.
Its wide 120° viewing angle delivers broad light diffusion, making it ideal for applications requiring uniform illumination such as automotive interior lighting and signage back-lighting. The built-in reflector enhances light output efficiency, optimizing it for use as LED pixels in electronic displays and signs.
Manufactured to meet JEDEC J-STD-020 standards, this LED offers robust quality assurance for industrial applications. It is designed to mate efficiently with light pipes due to its flat-topped emitting surface, simplifying integration into complex lighting assemblies.
This product is suited for industrial, automotive, and commercial environments including manufacturing, electronics production, and electronic signage systems. Clear lens with white finish and round shape ensures optimal light clarity.
Forward current max 30mA supports high brightness and energy efficiency. Wide 120° viewing angle covers broad illumination area. Compact package size suits tight PCB layouts. JEDEC J-STD-020 certification guarantees product reliability.
Flat-topped emitter surface facilitates light pipe integration. Increased light output via built-in reflector. Applications span automotive interiors, signage, and electronic displays.
Explore the comprehensive range of LEDs and optoelectronic components in the Electronics Components > LED category at EnvMart for all your industrial and commercial lighting needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum forward current for the HSMN-A100-R00J1 is 30mA, ensuring efficient operation.
The dominant wavelength of this model is 470nm, producing vibrant blue light output.
The lens dimensions for this LED are 3.2 mm by 2.8 mm by 1.8 mm.
This model features a wide viewing angle of 120 degrees, allowing for optimal light distribution.
The HSMN-A100-R00J1 uses a PLCC 2 surface mount package, suitable for SMT production processes.
Yes, it is compliant with the JEDEC J-STD-020 standard for quality assurance.
This LED is designed for automotive interior lighting, signage back-lighting, and electronic displays.
The lens of this model is round with a white finish, ensuring optimal light clarity.
This LED has 2 pins, facilitating easy integration into electronic circuits.
The forward voltage for the HSMN-A100-R00J1 is 3.4V.
The LED includes a built-in reflector that enhances light output efficiency, making it suitable for various applications.
