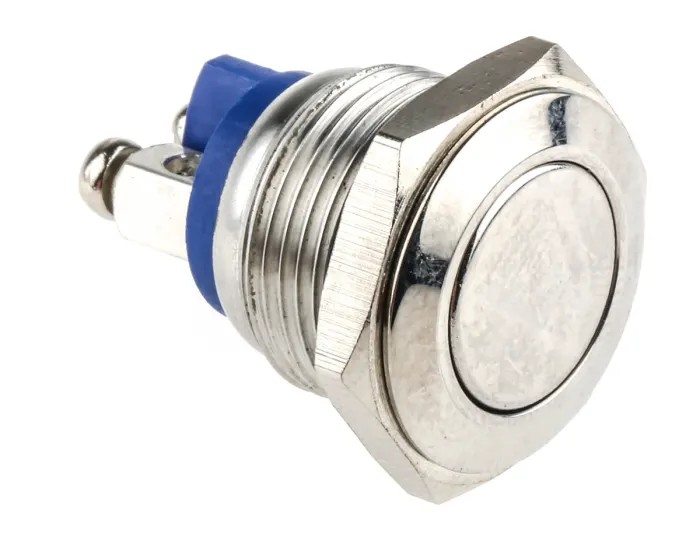

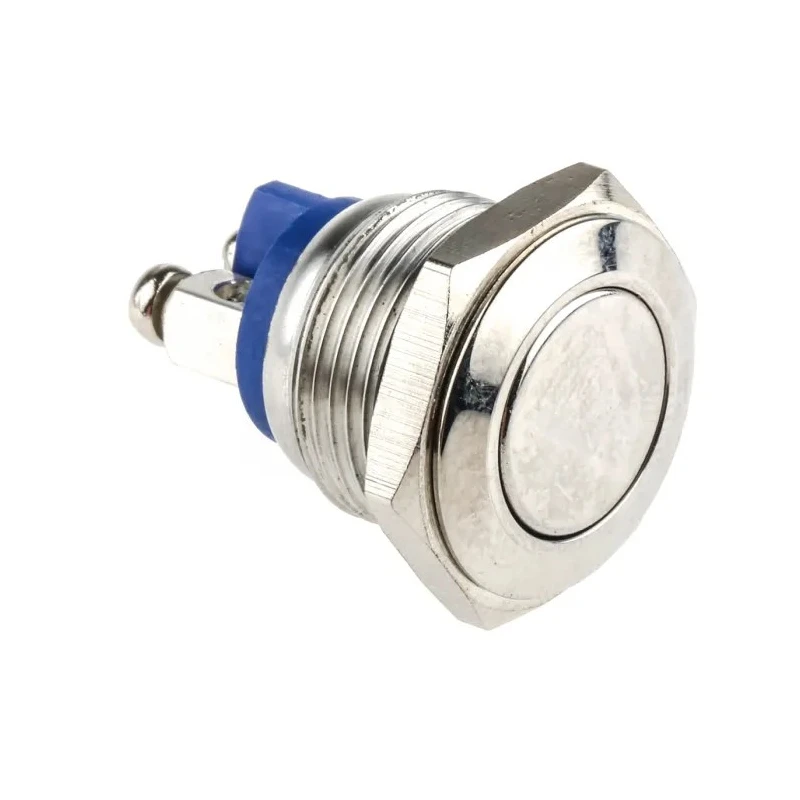

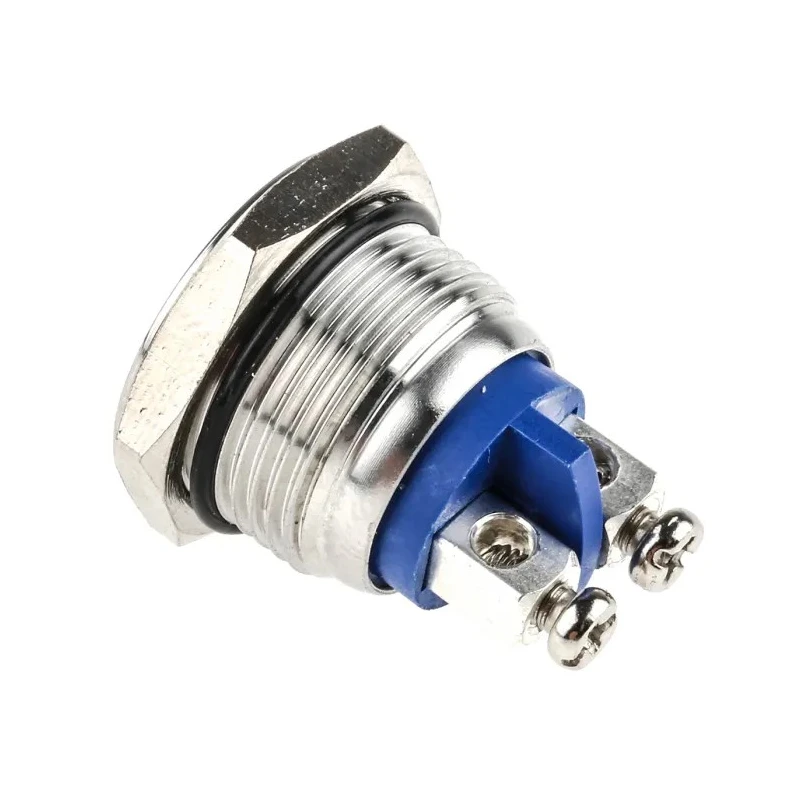

EOZ Push Button Switch Momentary Panel Mount SPST Silver Actuator 16.2 mm Cutout IP65 48 V dc 250 V ac R16FFSSTAG
Specifications
| Country of Origin | France |
|---|---|
| Brand | EOZ |
| Model | R16FFSSTAG |
| IP Rating | IP65 |
| Mount Type | Panel |
| Series | R |
| Maximum Operating Temperature | 55°C |
| Contact Configuration | SPST |
| Switch Configuration | Momentary |
| Minimum Operating Temperature | -20°C |
| Panel Cutout Size | 16.2 mm |
| Terminal type | Screw |
| Standards/Approvals | RoHS |
| Switch Operation | Momentary |
| Actuator Colour | Silver |
| Contact DC Voltage | 48V dc |
| Actuator Style | Button |
| Switch Contact Current | 2A |
| Contact AC Voltage | 250V ac |
Key Features
- The switch features a silver-colored actuator with flush shape for durability.
- It operates momentarily, making contact only while pressed.
- Constructed from stainless steel, it resists corrosion, heat, and chemical damage.
- The device supports 48 V dc and 250 V ac contact voltages with a 2A current rating.
- Rated IP65, it is sealed against dust ingress and low-pressure water jets.
- Designed for industrial, machinery, and public space applications requiring vandal resistance.
- Shock resistant to IK08 standards, protected against 5 joules impact.
- Suitable for exposed environments such as kiosks, ticket machines, and factory equipment.
Product Description
EOZ R16FFSSTAG Push Button Switch is a momentary type panel mount switch designed for reliable industrial control applications. It features a robust silver actuator with a 16.2 mm panel cutout size and single-pole single-throw (SPST) contact configuration.
Its stainless steel construction provides excellent resistance against corrosion, heat, and chemical damage, making it ideal for harsh environments. The switch is non-illuminated and operates only while the button is depressed, returning to off position automatically.
The device is IP65 rated, ensuring it is fully protected against dust ingress and resistant to low-pressure jets of water from any direction. It is also shock resistant with an IK08 rating, able to withstand impacts up to 5 joules, suitable for vandal-prone or exposed public installations.
This switch supports 48 V dc and 250 V ac contact voltages at a maximum current of 2A. It utilizes secure screw terminal connections for electrical wiring. Operating temperature ranges from -20°C to 55°C, making it adaptable to various industrial environments.
Typical applications include factory machinery controls, access control systems, ticketing kiosks, vending machines, and other industrial or commercial equipment requiring high durability and reliability.
Key features include stainless steel anti-vandal design, momentary operation, robust sealing and shock resistance, making it suitable for demanding industrial and public space installations.
The switch features a silver-colored actuator with flush shape for durability. It operates momentarily, making contact only while pressed. Constructed from stainless steel, it resists corrosion, heat, and chemical damage.
The device supports 48 V dc and 250 V ac contact voltages with a 2A current rating. Rated IP65, it is sealed against dust ingress and low-pressure water jets. Designed for industrial, machinery, and public space applications requiring vandal resistance.
Shock resistant to IK08 standards, protected against 5 joules impact. Suitable for exposed environments such as kiosks, ticket machines, and factory equipment. The switch uses screw terminals for secure electrical connections.
Explore the full EOZ switch range on EnvMart for more industrial electrical switch solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The switch features a single-pole single-throw (SPST) contact configuration, allowing it to make contact only while the button is pressed.
It supports contact voltages of 48 V dc and 250 V ac, with a maximum current rating of 2A.
The switch has an IP65 rating, meaning it is fully protected against dust ingress and resistant to low-pressure water jets from any direction.
The operating temperature range is from -20°C to 55°C, making it suitable for various industrial environments.
It is designed for panel mounting, requiring a 16.2 mm cutout size for installation.
The switch is constructed from stainless steel, providing resistance against corrosion, heat, and chemical damage.
It utilizes secure screw terminal connections for electrical wiring, ensuring a reliable connection.
The actuator is a button style and is silver in color, designed for durability.
The switch is compliant with RoHS standards, ensuring it meets environmental regulations.
It is shock resistant with an IK08 rating, capable of withstanding impacts up to 5 joules.
Typical applications include factory machinery controls, access control systems, ticketing kiosks, and vending machines.
This model operates as a momentary switch, making contact only while the button is pressed and returning to the off position automatically.
