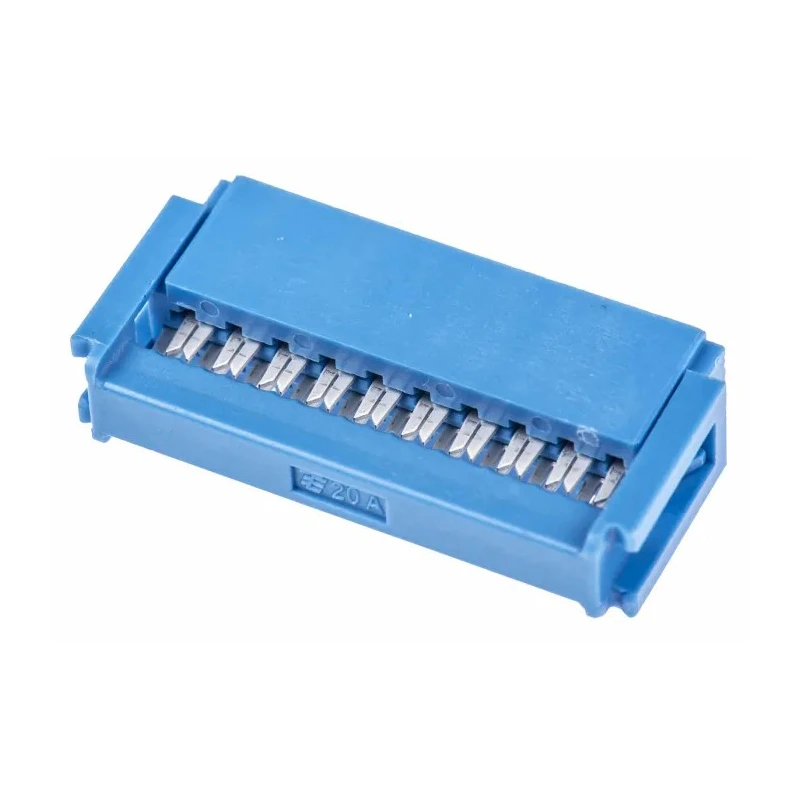

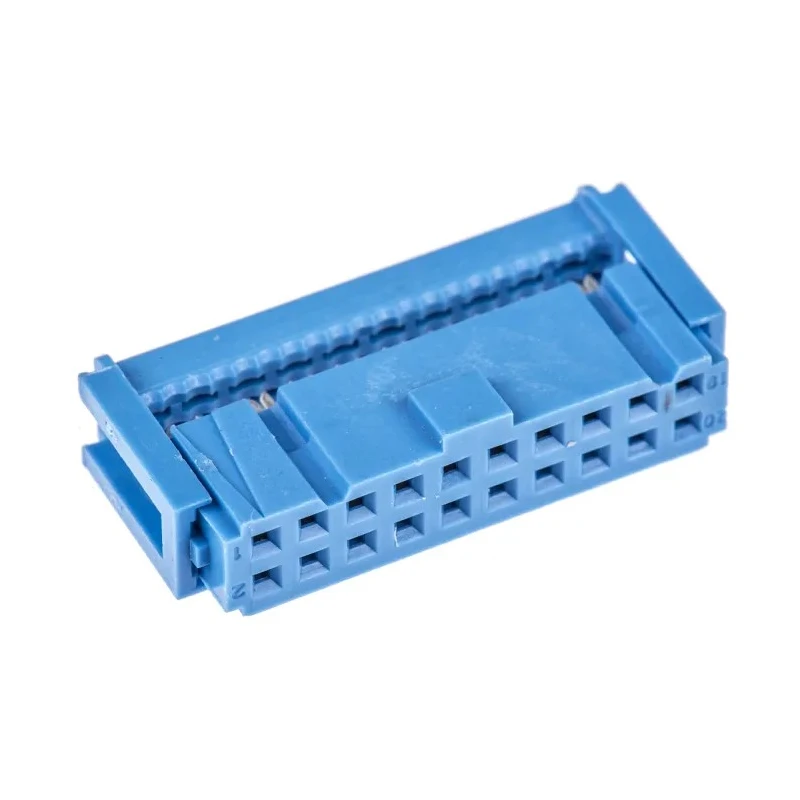

TE Connectivity 20-Way IDC Connector Female for Cable, 2 Row 2-1658527-3
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 1000V |
| Brand | TE Connectivity |
| Orientation | Right Angle |
| Current | 1A |
| Mount Type | Cable |
| Housing Material | Thermoplastic |
| Contact Material | Beryllium Copper |
| Series | AMP-LATCH 622 |
| Termination Type | IDC |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold over Nickel |
| Number of Contacts | 20 |
| Contact Gender | Female |
| Connector Gender | Female |
| Shrouded/Unshrouded | Shrouded |
| TE Connectivity 20-Way IDC Connector Socket for Cable Mount, 2-RowBrand | TE Connectivity |
Key Features
- This IDC connector features 20 contacts arranged over two rows.
- It supports a maximum current of 1A and voltage rating of 1000V.
- The connector is shrouded and designed for cable mount with right angle orientation.
- Constructed with beryllium copper contacts and thermoplastic housing for durability.
- Operating temperature ranges from -55°C to 125°C, suitable for demanding environments.
- The termination type is insulation displacement contact (IDC), providing reliable and efficient cable connections.
- Contact plating uses gold over nickel to enhance corrosion resistance and conductivity.
- It is part of the AMP-LATCH 622 series by TE Connectivity, known for quality and performance.
Product Description
TE Connectivity 2-1658527-3 20-Way IDC Connector Female for Cable, 2 Row is engineered to provide secure and efficient connections in electronic and industrial cable assemblies. Featuring 20 gold over nickel plated contacts arranged in two rows with a 2.54mm pitch, this connector ensures reliable signal transmission and mechanical robustness. The beryllium copper contact material ensures excellent conductivity and strength, while the thermoplastic housing is UL 94V-0 rated for flame resistance.
Its insulation displacement contact (IDC) termination type allows for quick and dependable cable termination without the need for soldering, making it suitable for high-volume manufacturing and maintenance. The connector's shrouded design protects contacts from damage and contamination, enhancing durability in demanding environments.
The product operates safely within a temperature range from -55°C up to 125°C, and supports up to 1 ampere current and 1000 volts, making it appropriate for a variety of applications including industrial controls, communication systems, and testing equipment.
Part of the respected AMP-LATCH 622 series, this connector matches compatible 26-28 AWG or stranded PVC insulated flat ribbon cables for seamless integration in assemblies. This IDC Connector features 20 contacts arranged over two rows.
It supports a maximum current of 1 ampere and voltage rating of 1000 volts. Gold over nickel plating enhances corrosion resistance and electrical conductivity. Thermoplastic housing is flame-retardant and robust for industrial use.
Right angle orientation for versatile cable routing. Operating temperature range is -55°C to 125°C, supporting harsh environments. Insulation Displacement Contact (IDC) termination for solderless cable connection. Designed for use with 26-28 AWG stranded PVC insulated ribbon cables.
This connector is suited to industrial, electronic manufacturing, communication, and laboratory applications requiring secure, high-reliability connections. Browse the Electronics Components category at EnvMart for matching accessories and related connectors.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This IDC connector supports a maximum current of 1 ampere and a voltage rating of 1000 volts.
The operating temperature range for this connector is from -55°C to 125°C, making it suitable for demanding environments.
The connector features beryllium copper contacts and a thermoplastic housing, providing durability and flame resistance.
It utilizes insulation displacement contact (IDC) termination, allowing for quick and reliable cable connections without soldering.
This connector is designed with a right angle orientation, facilitating versatile cable routing.
This connector has 20 contacts arranged over two rows with a pitch of 2.54mm.
It is designed for use with 26-28 AWG stranded PVC insulated flat ribbon cables.
The connector is shrouded, which helps protect the contacts from damage and contamination.
This connector is part of the AMP-LATCH 622 series by TE Connectivity, known for quality and performance in electronic assemblies.
The pitch of the contacts in this IDC connector is 2.54mm.
It is suitable for applications in industrial controls, communication systems, and testing equipment that require secure connections.
The country of origin for this connector is India.
