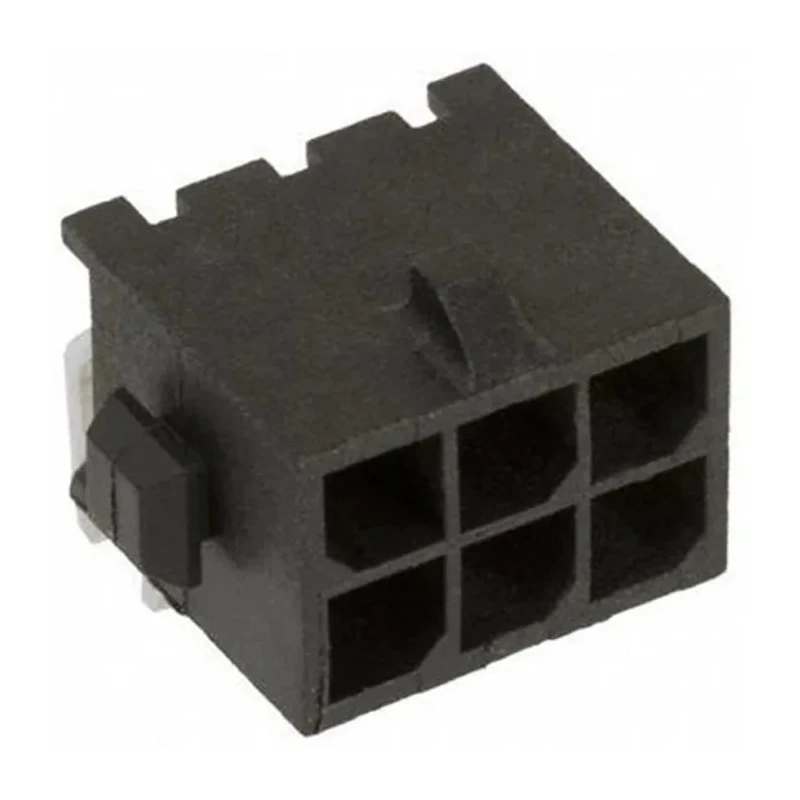

TE Connectivity Micro MATE-N-LOK Series Right Angle Through Hole PCB Header, 6 Contacts, 3 mm Pitch, 2 Row 3-794618-6

Name: TE Connectivity Micro MATE-N-LOK Series Right Angle Through Hole PCB Header, 6 Contacts, 3 mm Pitch, 2 Row 3-794618-6
Brand: TE Connectivity
SKU: 191216
Price: 1.84 USD
Availability: InStock



Category PCB Connectors & Wire Housings Brand TE Connectivity Condition New

Specifications

Country of Origin	China
Voltage	250V
Brand	TE Connectivity
Orientation	Right Angle
Current	5A
Mount Type	Through Hole
Housing Material	Nylon
Contact Material	Brass
Series	Micro MATE-N-LOK
Termination Type	Solder
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-40°C
Number of Rows	2
Pitch	3mm
Contact Plating	Tin
Number of Contacts	6
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Wire-to-Board
Tail Pin Length	3.18mm

Key Features

This PCB header features a shrouded design to prevent misalignment and ensure reliable connections.
The connector consists of 6 brass contacts plated with tin for optimal conductivity and corrosion resistance.
It mounts via through-hole technology and has a tail pin length of 3.18 mm, ensuring strong board retention.
Suitable for operating temperatures between -40°C and 105°C for durability in various environments.
The nylon housing with positive locking tabs secures the header to the mating cable connector firmly.
This right angle PCB connector supports a voltage rating of 250 V and a current rating of 5 A for industrial and consumer electronics.
The Micro MATE-N-LOK 3 mm connector system is designed for applications including household appliances, lighting, factory automation, and data storage.
Its polarization features reduce the risk of mismating during assembly or maintenance.

Product Description

TE Connectivity 3-794618-6 Micro MATE-N-LOK Series Right Angle Through Hole PCB Header is a high-performance electrical connector designed for wire-to-board applications. Featuring 6 male contacts arranged in 2 rows with a 3 mm pitch, this shrouded header provides reliable mechanical and electrical connection with its nylon housing and tin-plated brass contacts.

The through-hole mount type ensures robust attachment to printed circuit boards. Its positive locking tabs and polarization characteristics prevent connector mismating and enhance stability during operation. Tail pins measure 3.18 mm to secure solder joints effectively on the PCB.

Engineered to operate reliably at temperatures ranging from -40°C to 105°C, this connector supports a maximum voltage of 250 V and current of 5 A, suitable for demanding industrial, commercial, and household applications. The Micro MATE-N-LOK system’s compact 3 mm pitch allows space-efficient designs especially in automation and lighting systems.

These connectors are ideal in sectors such as factory automation, lighting, data storage, household appliances, and security systems, where high reliability and secure connections are essential. The shrouded design enhances safety and contact protection during handling and operation.

This PCB header incorporates a nylon housing for durability and electrical insulation. Contacts are made of brass and plated with tin to prevent corrosion and enhance conductivity. Right angle orientation enables optimal PCB layout and wiring flexibility.

Through-hole mounting provides mechanical strength and endurance in demanding environments. Polarization and locking tabs ensure correct and secure mating with compatible connectors. Rated for electrical performance of 5 A current and 250 V voltage.

Designed to withstand temperature extremes from -40°C to 105°C. Widely applied across industrial, commercial, and household electronics sectors.

Set your designs apart with the proven reliability of TE Connectivity Micro MATE-N-LOK connectors. Explore EnvMart’s Electronics & Electricals category for comprehensive options in PCB connectors that deliver durable performance across applications.

Explore more products in our PCB Connectors & Wire Housings category.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

This PCB header supports a maximum voltage of 250 V and a current rating of 5 A, making it suitable for various industrial and consumer electronics applications.

The connector features a 3 mm pitch and consists of 6 male contacts arranged in 2 rows, allowing for efficient space utilization on the PCB.

The housing is made of nylon, while the contacts are brass plated with tin, enhancing conductivity and corrosion resistance.

The tail pin length of this PCB header is 3.18 mm, ensuring strong attachment to the printed circuit board through soldering.

It is designed to operate reliably within a temperature range of -40°C to 105°C, suitable for various environmental conditions.

The shrouded design helps prevent misalignment and enhances safety by protecting the contacts during handling and operation.

This model utilizes through-hole mounting technology, which provides robust mechanical attachment to the printed circuit board.

It is suitable for applications including household appliances, lighting, factory automation, and data storage, where secure connections are essential.

The connector includes positive locking tabs and polarization features that reduce the risk of mismating during assembly or maintenance.

This model has a right angle orientation, allowing for optimal PCB layout and wiring flexibility in various designs.

Yes, this PCB header is specifically designed for wire-to-board applications, ensuring reliable electrical connections.

The country of origin for this PCB header is China, indicating where it is manufactured.
