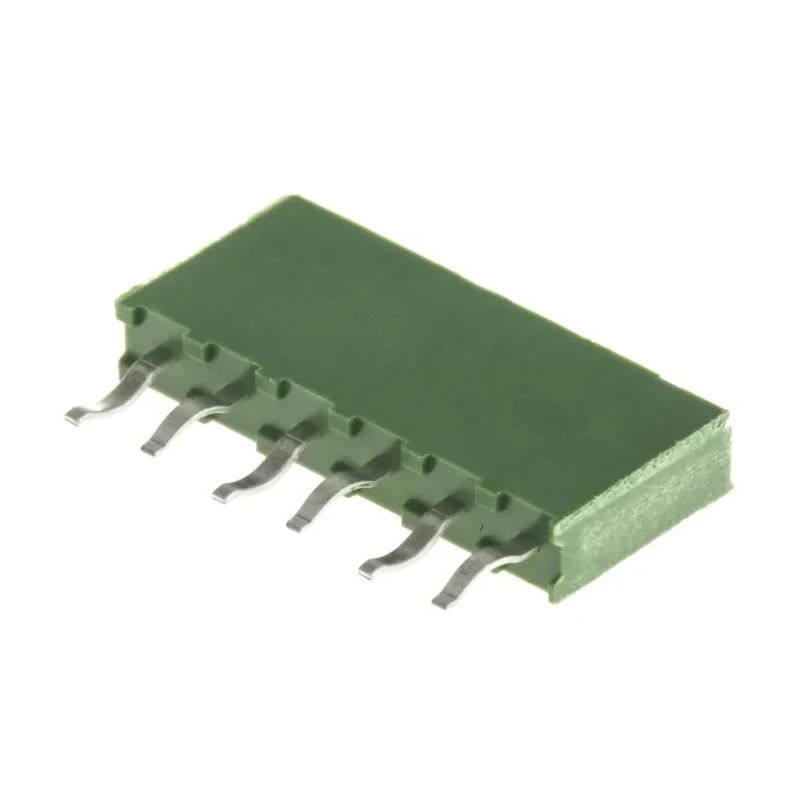

TE Connectivity AMPMODU HV100 Series 6-Contact 1 Row Through Hole Straight PCB Socket 2.54 mm Pitch HV100

TE Connectivity HV100 model is a high-quality PCB socket with 6 contacts arranged in a single row and a 2.54 mm pitch between contacts, designed primarily for through hole mounting applications. Its polyester housing complies with UL 94V-0 flame retardant rating, ensuring safety and durability in electrical device assemblies used across industrial, commercial, and manufacturing sectors.

The socket features kinked solder legs, enhancing mechanical retention on the PCB for enhanced reliability during operation. The bronze contacts are plated with tin, providing corrosion resistance and effective conductivity. This female contact socket supports a continuous current rating of 12A, making it suitable for a wide range of board-to-board connection needs.

Its operational temperature range from -55°C to 105°C accommodates various environmental conditions, allowing use in demanding industrial and electronic component applications. The straight orientation and vertical top entry design facilitate easy insertion and removal of mating connectors, making it versatile for repair and prototyping tasks.

Available in two mounting heights (7 mm and 8.5 mm), the AMPMODU HV100 series sockets enable stacking configurations to optimize space on densely populated PCBs. The socket’s construction material and design adhere to established industry practices to ensure reliability despite the absence of specific certification marks.

This component is ideal for industrial electronics, laboratory equipment, electrical assemblies, and PCB prototyping, ensuring a stable physical and electrical connection. The TE Connectivity brand is recognized for durable and precision electronic connectors optimized for manufacturing and industrial tool applications.

The socket supports up to 12A current rating for robust electrical performance. Constructed with polyester housing material providing UL 94V-0 flame retardant properties. Features kinked solder legs to ensure secure retention to printed circuit boards.

Operating temperature range from -55°C to 105°C suitable for various industrial environments. Contact made of bronze plated with tin and a female gender configuration for effective connectivity. Designed for vertical mounting with top entry orientation.

Available in the AMPMODU HV100 series with two mounting heights: 7 mm and 8.5 mm for stacking applications. No specific standards or approvals listed for this model. Explore the TE Connectivity connector range and PCB socket portfolio on EnvMart for premium industrial electronics components and reliable construction tools integration.
