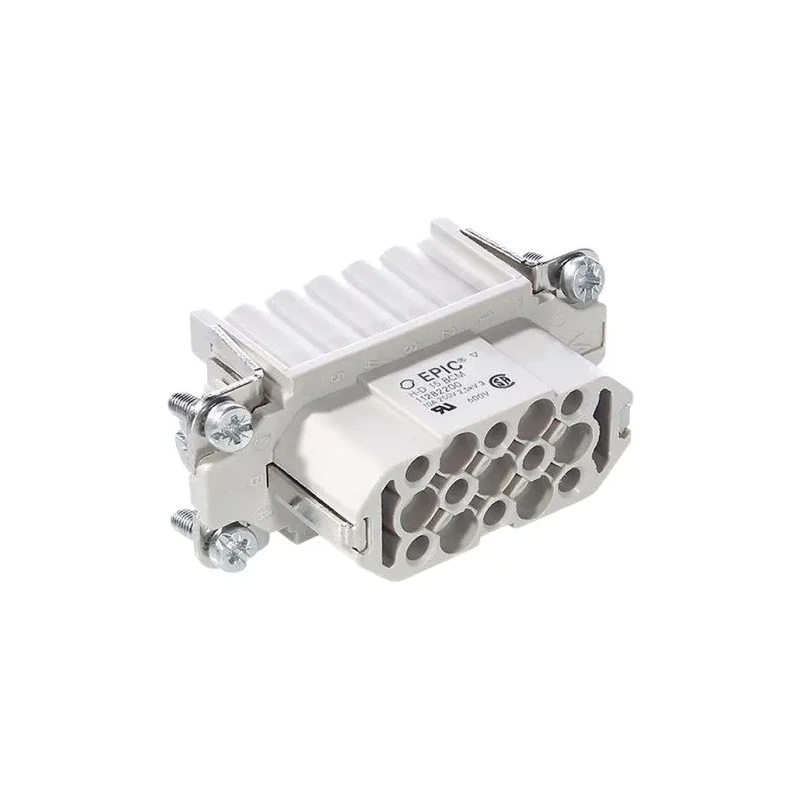

EPIC Heavy Duty Power Connector Insert 10A, H-D Series Male, 16 Contacts 11282200

EPIC 11282200 Heavy Duty Power Connector Insert is engineered for demanding industrial power connection needs, rated at 10A and 250V AC. This male connector insert belongs to the robust H-D series, designed to offer high-density contact options with 16 contacts arranged in 2 rows supporting a pole format of 15 plus protective earth.

Constructed with a precision-machined metal body and copper alloy contacts plated with gold and silver, this connector ensures excellent electrical conductivity and corrosion resistance. The contacts are crimp terminated using a specialized 8 point indent crimp tool, allowing secure and reliable connections suitable for harsh environments.

It features an IP65-rated housing providing dust-tight and water jet protection for reliable operation in industrial, manufacturing, and power distribution systems. The straight orientation and cable mount type facilitate straightforward installation and integration with compatible heavy duty power connectors.

The earth connection is provided through the metal body shells, enhancing safety by ensuring proper grounding. This series includes type tested connectors compliant with standards including VDE 0110/72, 0110b, 79, and VDE 0627/86. Certifications include approvals from SEV, UL, and CSA, confirming adherence to international safety and performance norms.

These heavy duty connector inserts are suitable for industrial automation, machinery, and electrical distribution applications that require secure and high-quality electrical connections. Users are advised not to couple or decouple connectors under electrical load to prevent damage.

This connector insert is part of the H-D series suitable for heavy duty applications. Features 16 contacts arranged in 2 rows, supporting a pole format of 15+PE. Rated for 250V with an IP65 protection level against dust and water ingress.

Constructed with a durable metal body and copper alloy contacts plated with gold and silver for enhanced conductivity. Connector orientation is straight and mount type is cable, ensuring flexible installation options. Designed with crimp terminated machined contacts for reliable connection and ease of assembly.

Earth connection is incorporated through metal body shells providing safety and grounding. Manufactured in Germany adhering to VDE and international safety standards. Suitable for use in industrial, manufacturing, and power distribution applications requiring secure electrical connections.

Not intended to be connected or disconnected under electrical load to assure operational safety. Explore the range of heavy duty power connectors and related components on EnvMart for comprehensive power distribution solutions.
