Amphenol Industrial signalmate C091 3 Pole Straight M16 DIN Socket 5A 300V IP40 Panel Mount T3263 100 RS
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 300V |
| Brand | Amphenol Industrial |
| Orientation | Straight |
| Current | 5A |
| Model | T3263 100 RS |
| IP Rating | IP40 |
| Mount Type | Panel Mount |
| Housing Material | Polymer, Metal |
| Contact Material | Brass |
| Series | signalmate C091 |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Pole Format | 3 |
| Contact Plating | Silver |
| Number of Contacts | 3 |
| Contact Gender | Female |
| Mating Type | Screw-On |
| Connector Size | M16 |
Key Features
- The socket features 3 contact poles for signal connectivity.
- Panel mount type with a metal locking ring ensures robust attachment.
- Straight orientation with screw-on mating type for reliable connection.
- Contacts are brass material plated with silver for enhanced conductivity.
- Termination is by solder, allowing secure cable connection.
- Operating temperature range is between -40°C to 85°C for wide application.
- Housing is composed of durable polymer and metal materials.
- The connector is designed to comply with DIN EN 60130-9 / IEC 60130-9 standards.
Product Description

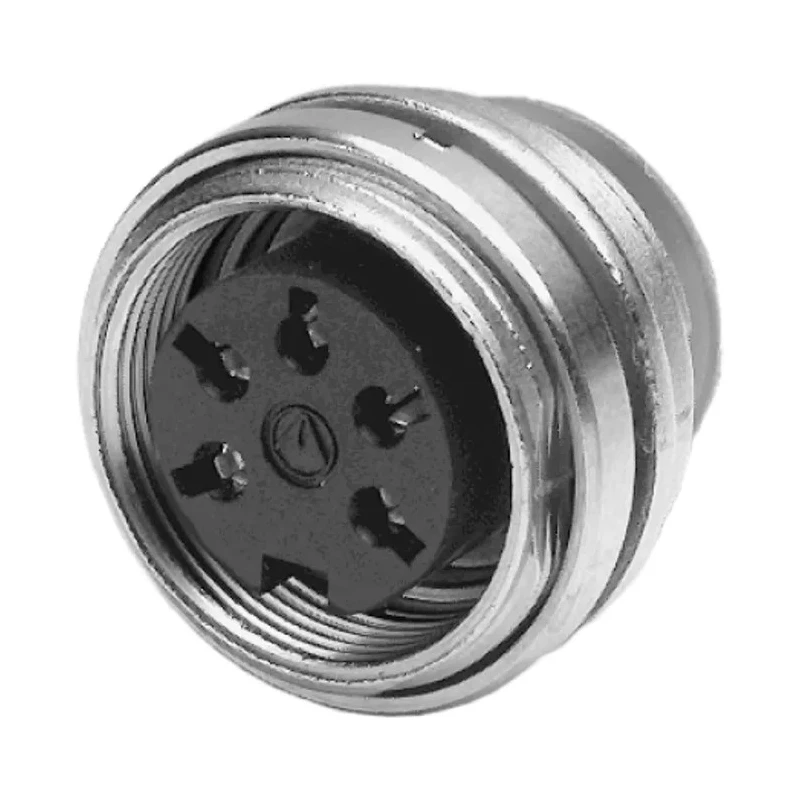

Amphenol Industrial T3263 100 RS signalmate C091 3 Pole Straight M16 DIN Socket is a high-quality panel mount DIN circular connector designed for industrial and electronic applications. It supports a current rating of 5A and voltage of 300V with an IP40 ingress protection rating, making it suitable for various environments.
The connector features 3 female brass contacts plated with silver to ensure excellent conductivity and corrosion resistance. Its housing combines polymer and metal materials to provide mechanical robustness and durability during use.
The socket’s panel mounting design includes a metal screw thread and locking ring that secure the connector firmly in place, preventing accidental disconnection. The mating type is screw-on with a straight orientation, ideal for tight and reliable connections in control panels and instrumentation equipment.
Its operating temperature ranges from -40°C to 85°C, allowing it to function reliably in extreme industrial environments. Termination is carried out via solder, ensuring stable signal transmission and connection integrity.
This connector follows DIN EN 60130-9 / IEC 60130-9 standards, guaranteeing compatibility and quality performance within DIN connector systems. The socket is rear-mounted to panels with a robust ring nut for secure installation.
Silver plated brass contacts provide excellent conductivity and corrosion resistance. Metal locking ring with screw locking aids in reliable mating and unmating cycles. Enclosure materials include polymer and metal for durability and protection.
The product is suitable for industrial, electronic manufacturing, and control system applications. Its IP40 rating protects against solid objects larger than 1mm but not water ingress. Operating temperature suitability enables use in demanding environments such as automation and instrumentation.
This product is part of the Amphenol Industrial signalmate C091 series, trusted for its durability and reliable connection performance across various industries. Product listing and further browsing for Amphenol brand connectors and DIN Sockets are available on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a current rating of 5A and a voltage rating of 300V.
It has an IP40 ingress protection rating, which protects against solid objects larger than 1mm but does not provide protection against water ingress.
The housing is made from polymer and metal materials, while the contacts are brass plated with silver for enhanced conductivity.
The operating temperature range is from -40°C to 85°C, allowing it to function reliably in extreme environments.
It features a screw-on mating type for reliable connection and termination is done via solder.
This connector has 3 female contacts, which are designed for signal connectivity.
It complies with DIN EN 60130-9 / IEC 60130-9 standards, ensuring compatibility within DIN connector systems.
It is designed for panel mount installation and includes a metal screw thread and locking ring for secure attachment.
It is suitable for industrial, electronic manufacturing, and control system applications.
The connector features a metal locking ring that aids in reliable mating and unmating cycles, preventing accidental disconnection.
The country of origin for this product is China.
