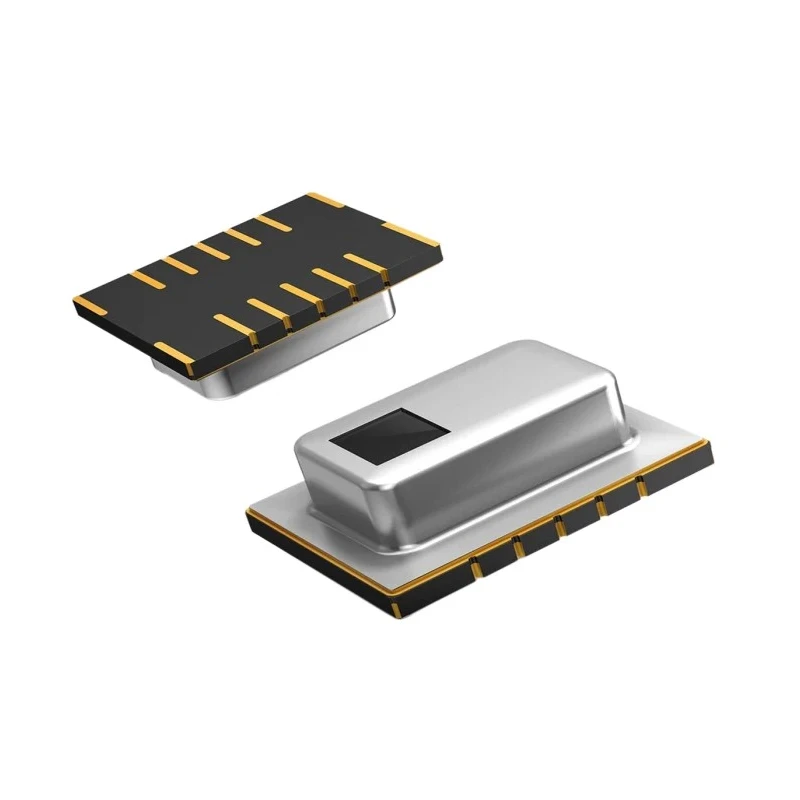

Panasonic Grid-EYE 8x8 IR Array Proximity Sensor 7 m Sensing Distance Digital Output -0.3 V to 3.3V AMG8833

Panasonic AMG8833 Grid-EYE Proximity Sensor is a high precision infrared array sensor designed for proximity detection and thermal imaging applications. Featuring an 8 by 8 grid array of 64 IR sensors, it detects heat radiation from human bodies and other objects, enabling accurate position and distance estimation based on the size of the detected heat area.

This sensor package supports a digital output and operates at a supply voltage range of -0.3 V to 3.3 V with a maximum output current of 10 mA. It is designed for surface mount applications, ensuring compact implementation into electronic designs.

The AMG8833 model is capable of sensing distances up to 7 meters and maintains optimal performance in ambient temperatures ranging from 0°C to 80°C, making it suitable for indoor industrial, laboratory, commercial, and residential applications.

Its precise thermal imaging capabilities make it ideal for human activity detection, HVAC automation, energy saving lighting systems, security systems, and automatic door or elevator activation. The digital output simplifies integration with microcontrollers and embedded systems.

This sensor is manufactured in Japan using advanced MEMS technology, reflecting Panasonic’s commitment to quality and reliability. Compact surface mount package with 14 pins for easy integration. 8 x 8 IR grid array enables detailed thermal imaging with 64 pixels.

Operating voltage from -0.3 V to 3.3 V for low power consumption. Maximum output current of 10 mA supports robust digital signals. Operating temperature range from 0°C up to 80°C for versatile environments. Accurate proximity sensing up to 7 meters distance.

Applications include smart home automation, HVAC control, lighting, security, and access control systems. Explore more Panasonic sensors and related components on EnvMart for industrial, commercial, and laboratory sensor solutions.
